In high-speed packaging lines, the GE IC698CPE020-JX executes synchronized motion control for multiple servo axes while managing recipe changes and HMI data exchange without scan time degradation. Deploying the GE IC698CPE020-JX with its embedded Ethernet switch enables EGD (Ethernet Global Data) synchronization across distributed controllers, ensuring sub-millisecond coordination critical for precision assembly operations. The GEIC698CPE020-JXsupports web-based monitoring via 16 concurrent browser connections, simplifying remote diagnostics while maintaining backward compatibility with Series 90-70 I/O modules.

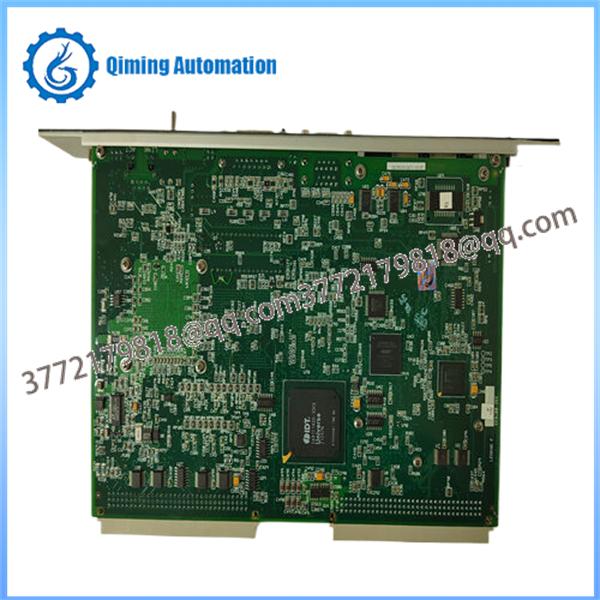

Model IC698CPE020-JX

Product Type PACSystems RX7i CPU (700 MHz Pentium III floating point)

User Memory 10 MB battery-backed RAM

Flash Memory 10 MB non-volatile

I/O Capacity 32K discrete bits (%I/%Q), 32K analog words (%AI/%AQ)

Program Blocks Up to 512 blocks (max 128 KB each)

Ethernet Ports 2× RJ45 10/100 Mbps embedded switch (EGD/SRTP/Modbus TCP)

Serial Ports 3 isolated (2× RS-232/RS-485, 1× RS-232 management)

Boolean Processing 0.14 ms per 1K instructions

Power Consumption 4.5 A @ 5 VDC, 0.042 A @ +12 VDC

Operating Temperature 0°C to 60°C (fan tray required)

Rack Position Slot 1 only (VME64 format)

Rack preparation

Install fan tray and high-capacity power supply in RX7i rack before mounting GE IC698CPE020-JX.

CPU insertion

Insert GE IC698CPE020-JX into slot 1; ensure proper backplane alignment and secure with captive screws.

Network configuration

Set IP addresses via front panel or Proficy Machine Edition; connect Ethernet cables to embedded switch ports.

Program download

Use Proficy Machine Edition V4.0+ to compile and download ladder logic to GE IC698CPE020-JX flash memory.

Commissioning test

Verify scan times, I/O response, and EGD exchange rates through GE IC698CPE020-JX web server diagnostics.

Always install fan tray before powering GE IC698CPE020-JX to prevent thermal shutdown.

Ground rack chassis properly to protect GE IC698CPE020-JX Ethernet ports from transients.

Leave 50 mm clearance above/below GE IC698CPE020-JX for airflow (critical in enclosed panels).

Verify firmware compatibility before upgrading GE IC698CPE020-JX during planned downtime.

Use shielded Ethernet cables for GE IC698CPE020-JX in high EMI environments

Monthly: Monitor GE IC698CPE020-JX web server for memory usage and scan time trends.

Quarterly: Check GE IC698CPE020-JX battery voltage and replace every 2-3 years.

Annually: Backup flash programs from GE IC698CPE020-JX and test cold boot recovery.

Clean GE IC698CPE020-JX heatsink fins with compressed air during shutdowns.

Log EGD exchange failures from GE IC698CPE020-JX for network troubleshooting.
