In GE 9FA gas turbine installations, the GE IS200TSVCH1AED directly interfaces with servo valves controlling fuel stroke reference (FSR), inlet guide vanes (IGV), and splitter vanes, ensuring sub-millisecond response times for load changes and startup sequencing. Deploying the GE IS200TSVCH1AED in redundant (simplex/dual/TMR) configurations provides continuous valve position feedback through integrated LVDT conditioning while supporting emergency trip relays and pulse rate inputs for speed/load governance. The GE IS200TSVCH1AED rugged design handles turbine vibration, EMI, and wide temperature swings in power plant control compartments.

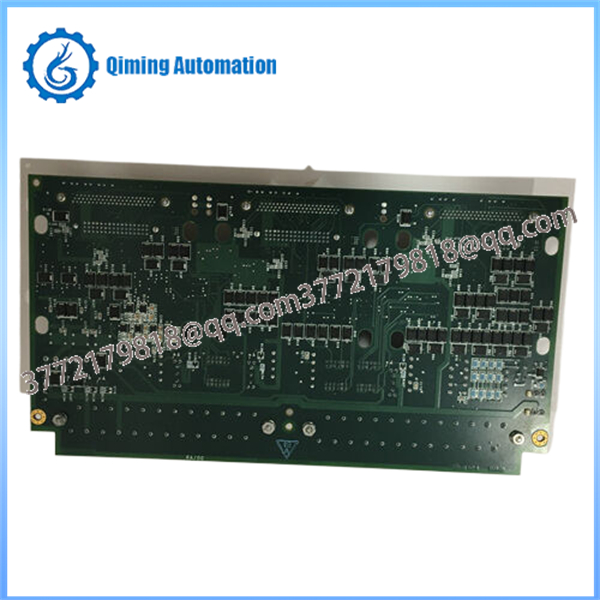

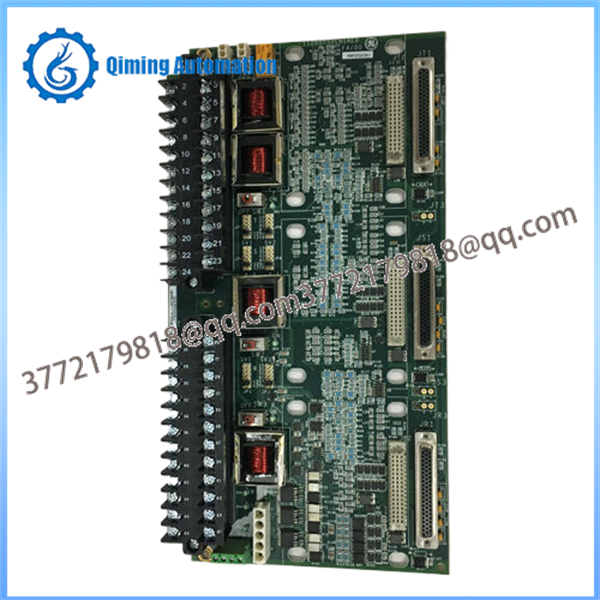

Model IS200TSVCH1AED

Product Type TSVC Servo Terminal Board (Mark VIe series)

Servo Outputs 2× bidirectional current outputs (±20/±40/±60/±160 mA)

LVDT Inputs Integrated LVDT signal conditioning (AC excitation)

Additional I/O Pulse/rate inputs, external trip logic, embedded relays

Isolation 2500 Vrms channel-to-ground isolation

Accuracy ±0.05% FSR, 24-bit Σ-Δ ADC with thermal compensation

Power Supply 28 V DC (from I/O pack backplane)

Communication Direct to TSVH2 I/O pack via ribbon cable

Operating Temp −25°C to +85°C

Environment Class 1 Div 2 hazardous locations

Rack preparation

Power down Mark VIe I/O rack and locate designated GE IS200TSVCH1AED terminal board slot.

Board insertion

Align GE IS200TSVCH1AED connectors with backplane; secure with captive screws.

Field wiring

Connect servo valve coils, LVDT feedback, and trip contacts to GE IS200TSVCH1AED TB1/TB2 terminals per turbine diagram.

I/O pack connection

Attach TSVH2 I/O pack to GE IS200TSVCH1AED via 40-pin ribbon cable.

Commissioning

Calibrate servo null/stroke via ToolboxST; test LVDT feedback and trip functions.

Use torque wrench (4-6 in-lbs) on GE IS200TSVCH1AED terminal screws to prevent cold joints.

Verify servo coil polarity before powering GE IS200TSVCH1AED to avoid reversed valve action.

Route LVDT cables separately from power wiring near GE IS200TSVCH1AED to minimize noise pickup.

Confirm TSVH2 I/O pack firmware compatibility with GE IS200TSVCH1AED revision.

Apply dielectric grease to GE IS200TSVCH1AED connectors in high-humidity environments.

Monthly: Check GE IS200TSVCH1AED diagnostic LEDs via HMI for servo faults or LVDT disconnects.

Quarterly: Inspect GE IS200TSVCH1AED terminal blocks for arcing or corrosion.

Annually: Recalibrate GE IS200TSVCH1AED servo zero/span during planned outages.

Verify GE IS200TSVCH1AED trip relay pickup/dropout times per turbine test procedure.

Thermal scan GE IS200TSVCH1AED power dissipation during full-load operation
