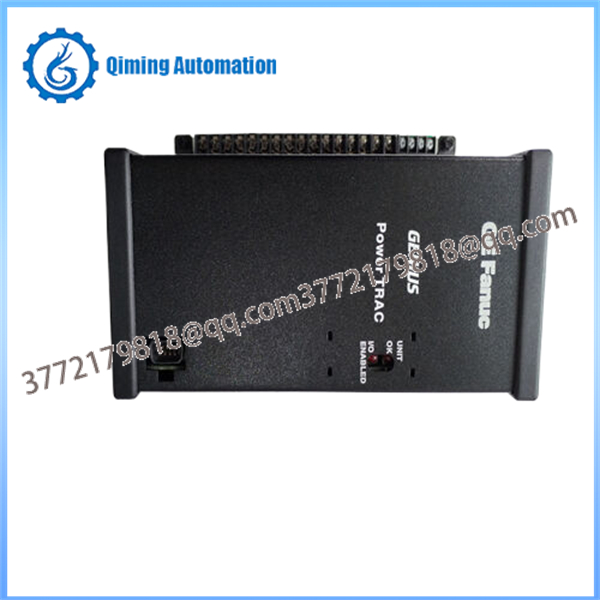

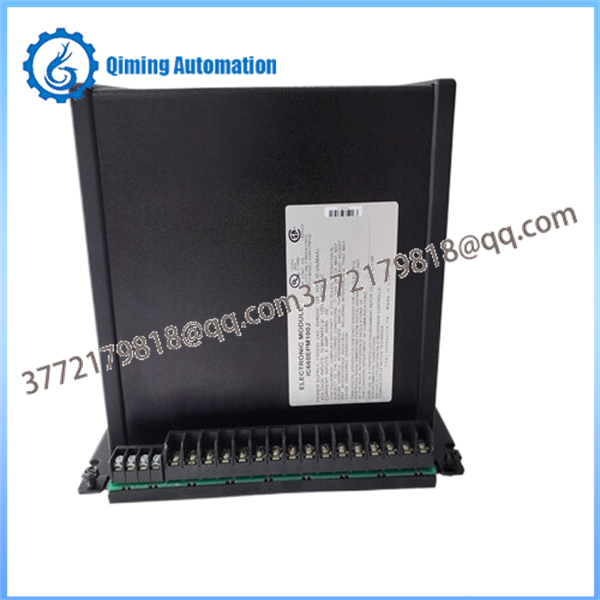

The GE IC660EPM100J is the Electronics Assembly (PowerTrac Block module) within GE Fanuc's (now Emerson Automation) Genius I/O series, specifically designed for advanced power monitoring and control in industrial automation systems. Paired with a compatible PowerTrac terminal base, the GE IC660EPM100J forms a complete PowerTrac block that accepts inputs from up to three potential transformers (PTs) for voltage measurement and three current transformers (CTs) for line currents, plus neutral current monitoring. It performs complex logic, mathematical calculations (e.g., power factor, kW, kVA, kWh), and diagnostics directly on the block. The GE IC660EPM100J supports 115/230 VAC operation and integrates seamlessly into Genius bus networks for distributed I/O in PLC systems like Series 90-30, Series 90-70, or host computers. Known for its rugged design, built-in diagnostics, and reduced wiring needs, the GE IC660EPM100J excels in energy management, load monitoring, motor protection, and power quality applications. Legacy but still widely supported, the GE IC660EPM100J remains a reliable solution for sustaining or upgrading older Genius I/O-based power systems.

Model,GE IC660EPM100J

Manufacturer,GE Fanuc Automation (now Emerson Automation)

Series,Genius I/O

Product Type,PowerTrac Block Electronics Assembly

Input Signals,Voltage: 1–3 PT inputs; Current: 3 line CTs + 1 neutral CT

Voltage Rating,115/230 VAC (auto-ranging or selectable)

Power Calculations,"Real power (kW), apparent power (kVA), power factor, energy (kWh), etc."

Resolution/Accuracy,High-resolution ADC with mathematical processing

Bus Interface,Genius serial bus (drop number configurable)

Diagnostics,"Extensive fault reporting (wiring, power, overload, etc.)"

Operating Temperature,Typically 0°C to +60°C (industrial grade)

Mounting,Attaches to IC660TPM100 or compatible PowerTrac terminal base

Applications,"Power monitoring, energy management, electrical distribution, motor control"

Additional Features,"No external conditioning needed, block-level math/logic, compatible with Hand-held Monitor (HHM)"

Mount the GE IC660EPM100J electronics assembly securely onto the corresponding PowerTrac terminal base (e.g., IC660TPM100) in the control cabinet.

Wire PTs (potential transformers) to voltage inputs and CTs (current transformers) to line/neutral current inputs per phase requirements.

Connect the Genius bus cable to the block's serial interface terminals, assigning a unique drop number via configuration.

Configure block parameters (PT/CT ratios, scaling, alarm thresholds, power calculation modes) using Hand-held Monitor (HHM), PLC programming software, or Genius configuration tools.

Power up the Genius network and verify block status LEDs indicate normal operation (no faults).

Monitor real-time power data (voltage, current, kW, PF, etc.) and diagnostic messages via the host PLC, HHM, or supervisory system.

Perform periodic calibration checks using known test signals or loads to validate measurement accuracy.

After installation, use the HHM or configuration tool to run block diagnostics and clear any startup faults before commissioning.

Inspect front-panel LEDs on the GE IC660EPM100J daily for OK status, fault indications, or communication errors.

Monitor power parameters and diagnostic buffers in the PLC or HHM for anomalies like phase imbalance, over/under voltage, or CT open conditions.

Check field wiring terminals and connections weekly for tightness, corrosion, or signs of overheating.

Review logged energy totals, power trends, and alarm history to identify potential issues early.

Clean dust from the module and terminal base vents (power off) using compressed air every 1–3 months, depending on environment.

Periodically verify PT/CT ratios and scaling factors remain accurate; recalibrate if drift is observed.

Test block response and diagnostic reporting during scheduled system shutdowns or maintenance windows to ensure continued reliability.
