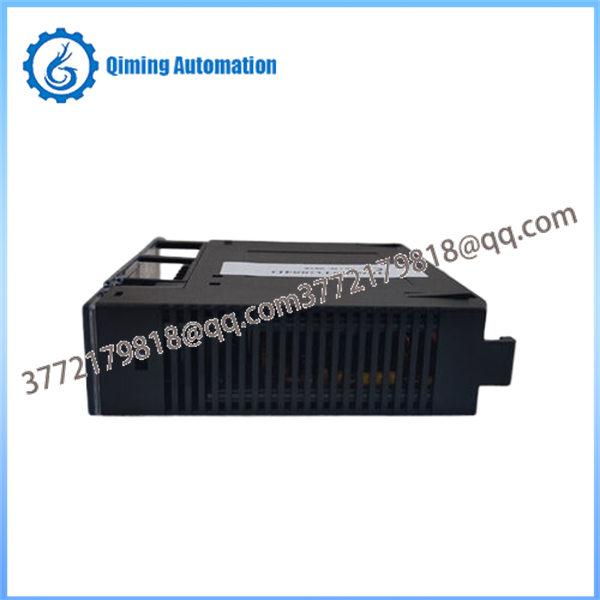

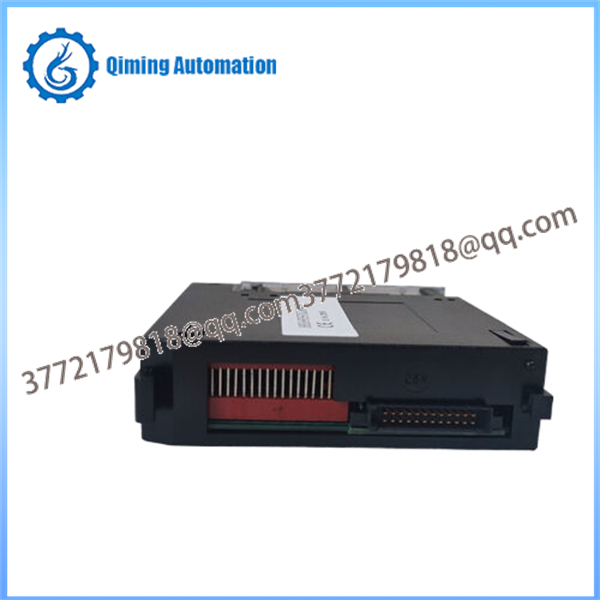

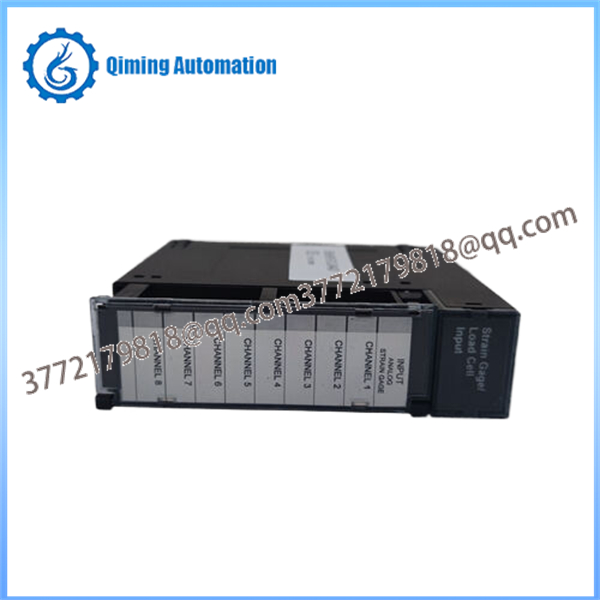

The GE HE693STG884D is a high-resolution 8-channel strain gauge (bridge-type) analog input module developed by Horner Electric in collaboration with GE Fanuc Automation. Designed for compatibility with GE Fanuc Series 90-30 PLCs and similar legacy systems, the GE HE693STG884D enables direct connection of bridged strain gauges without requiring external signal conditioning, transducers, or amplifiers. It provides precise measurement of small differential voltages from load cells, pressure transducers, and weighing applications. Featuring selectable input ranges (±25 mV, ±50 mV, ±100 mV) and 16-bit resolution, the GE HE693STG884D delivers accurate data for industrial weighing, force monitoring, and process control. The module includes built-in excitation voltage supply and supports weighing functions, making the GE HE693STG884D a preferred choice for retrofits and maintenance in manufacturing, material handling, and test stand applications. Despite being a legacy product, the GE HE693STG884D remains widely supported and valued for its reliability in demanding automation environments.

Model,GE HE693STG884D

Manufacturer,Horner Electric / GE Fanuc Automation

Series,Series 90-30 Compatible I/O Module

Product Type,8-Channel High-Resolution Strain Gauge Input Module

Input Channels,8 (bridge-type strain gauge inputs)

Input Ranges,"±25 mV, ±50 mV, ±100 mV (selectable)"

Resolution,16-bit

Excitation Voltage,Built-in supply for strain gauge bridges

Conversion Type,High-resolution ADC with filtering

Update Rate,Configurable (typically fast scan rates)

Power Requirements,5 VDC from PLC backplane (low consumption)

Operating Temperature,-10°C to +60°C (approximate industrial range)

Mounting,Plugs directly into Series 90-30 rack

Applications,"Weighing systems, load cells, force/strain monitoring, process control"

Additional Features,"Weighing functions, no external conditioning needed, alarm/support bits"

Install the GE HE693STG884D into an available slot in the GE Fanuc Series 90-30 PLC rack, ensuring proper alignment with the backplane.

Connect strain gauge bridges (full, half, or quarter) directly to the module's terminal block, wiring excitation, sense, and signal lines per channel.

Configure input ranges (±25/50/100 mV) and scaling via the PLC programming software (e.g., VersaPro or Proficy Machine Edition).

Assign the module's %AI registers (8 channels) and any associated %I alarm bits in the hardware configuration.

Power up the PLC rack and verify module status LEDs indicate healthy operation and no faults.

Download the ladder logic program and monitor raw or scaled strain values in real time.

Calibrate channels using known weights or test signals and adjust offsets/gains as required for accuracy.

Power down the PLC rack completely before inserting or removing the GE HE693STG884D to prevent backplane damage or electrical shock.

Use ESD protection (wrist strap, grounded workstation) when handling the module to safeguard sensitive analog circuitry.

Verify correct wiring polarity for excitation (+/-) and signal lines; reverse connections can damage gauges or module.

Ensure strain gauge bridges are properly balanced and shielded cables are used to minimize noise in industrial environments.

Do not exceed the module's input voltage limits (±100 mV differential) to avoid overload or inaccurate readings.

Confirm rack power supply provides stable 5 VDC and check for sufficient current capacity with multiple I/O modules.

After installation, perform a continuity check on all field wiring and inspect terminal screws for secure tightness.

Check front-panel LEDs on the GE HE693STG884D daily for power, OK, and channel fault indications.

Monitor PLC diagnostics for any module faults, open-circuit alarms, or out-of-range conditions on strain inputs.

Visually inspect field wiring and terminal connections for looseness, corrosion, or cable damage every shift or weekly.

Review logged %AI values and trends to detect drift, noise, or anomalies in strain measurements.

Clean dust from the module vents and rack (power off) using low-pressure compressed air periodically (1-3 months).

Periodically recalibrate channels with certified test weights or shunts to maintain measurement accuracy.

Backup PLC program and configuration files regularly; test module response during scheduled system maintenance shutdowns.
