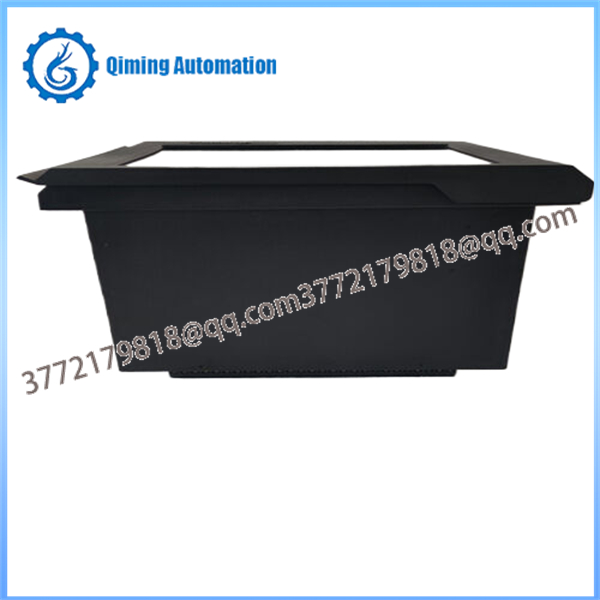

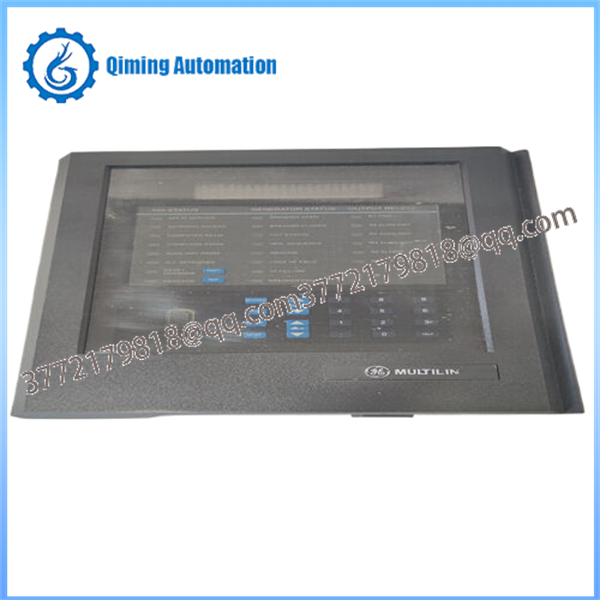

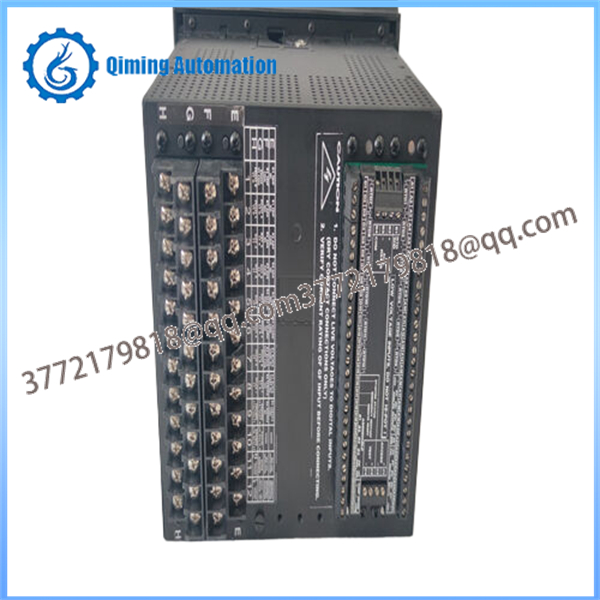

The GE 489-P5-LO-A20 (part of the Multilin™ 489 series, often listed as SR489 or 489 Generator Management Relay) is a microprocessor-based generator protection and management relay designed for comprehensive protection, metering, monitoring, and control of small to medium-sized synchronous or induction generators (typically 1–50 MVA range) operating at 25 Hz, 50 Hz, or 60 Hz. The GE 489-P5-LO-A20 provides primary or backup protection in utility, industrial, and cogeneration applications, integrating advanced functions like stator differential, 100% stator ground, loss of excitation, and thermal monitoring into a cost-effective drawout package. The GE 489-P5-LO-A20 supports RS485 communications (Modbus RTU/DNP3), analog outputs for SCADA integration, and detailed diagnostics/event recording for reduced troubleshooting. The GE 489-P5-LO-A20 is a legacy/discontinued product (spares available via aftermarket), but remains widely used in existing generator installations for reliable fault detection, anti-motoring prevention, and system stability. Overall, the GE 489-P5-LO-A20 offers robust, multifunction generator management in a user-friendly design.

Model / Catalog Number,489-P5-LO-A20 (Multilin 489 Generator Management Relay)

Device Type,Generator Protection & Management Relay

Current Inputs,5 A nominal phase CT secondaries (P5)

Power Supply,Low range: 20–48 V AC / 24–60 V DC (LO)

Analog Outputs,"4–20 mA (A20) – programmable for parameters like current, voltage, power"

Display / Enhancements,"Standard display (no ""E"" suffix for enhanced LCD/keypad in this variant)"

Protection Functions (ANSI),"87G (stator differential), 27TN/59N (100% stator ground), 40 (loss of excitation), 21 (distance backup), 32 (reverse power/anti-motoring), 24 (volts/Hz overexcitation), 46 (negative-sequence/unbalance), 49 (thermal overload/stator), 50/51 (overcurrent), 50BF (breaker failure), 59 (overvoltage), 81O/U (over/underfrequency), 67G (ground directional), 12 (overspeed), 38/39 (bearing temp/vibration via RTD/analog inputs), 50/27 (inadvertent energization), VTFF (VT fuse failure)"

Inputs,"7 CTs (3 phase output + 3 neutral + 1 ground), 4 VT inputs (phase/neutral), 12 RTDs (Pt/Ni/Cu), 4 analog inputs (e.g., vibration/field current), multiple digital inputs"

Outputs,"6 form-C output relays (trip/alarm/control), trip coil supervision"

Communication,"Dual RS485 ports (Modbus RTU/DNP3.0), up to 19200 baud; optional Ethernet in enhanced variants"

Metering & Monitoring,"Currents, voltages, power (active/reactive/apparent), energy, frequency, power factor, demand, temperature (RTD), vibration (analog), running hours, event/disturbance recording (oscillography up to 128 cycles)"

Operating Temperature,Typically -40 °C to +60 °C (industrial/extended)

Case / Mounting,Drawout construction (SR489 case) for easy testing/replacement

Additional Features,"Programmable logic, sequential tripping, IRIG-B time sync (optional), self-supervision, harsh environment options available"

Country of Origin,Canada (typical GE Multilin)

Life Cycle Status,"Legacy/Discontinued (aftermarket spares, repairs, refurbished units common)"

Mount the GE 489-P5-LO-A20 in a panel/rack using the drawout cradle; ensure proper grounding, ventilation, and sealing.

Connect control power (verify 20–48 V AC / 24–60 V DC matches LO variant); check power-up LEDs/HMI for normal status.

Wire CT inputs (phase/neutral/ground), VT inputs (wye/open delta/neutral), RTDs, analog inputs (vibration/field), and digital I/O (breaker status, trips) per polarity and diagram.

Set up RS485 communications to SCADA/monitoring system if required.

Use front HMI or EnerVista 489 software: configure CT/VT ratios, protection settings (pickup/delays/curves), analog outputs, RTD types, and logic for the GE 489-P5-LO-A20.

Commission: perform secondary injection tests (differential, overcurrent, ground, loss of excitation), verify metering accuracy, breaker control, and end-to-end fault simulation.

Monitor via HMI or software: observe real-time values, events, faults, thermal state, and alarms during generator operation with the GE 489-P5-LO-A20.

Only qualified protection engineers should install/commission the GE 489-P5-LO-A20, following GE Multilin guidelines, IEEE C37.102, and relevant standards.

Isolate generator/excitation, lock out/tag out, short CT secondaries, discharge energy, and confirm zero voltage before wiring or handling the GE 489-P5-LO-A20.

Use shielded/twisted-pair cables for low-level signals (RTD/analog), single-point grounding for shields, and proper routing to minimize EMI.

Verify CT/VT polarity/ratios/burden; never open CT circuits when energized to prevent hazards.

Ensure environmental compliance (temperature, humidity, vibration) and match power supply to LO rating.

For differential/ground protections, confirm neutral connections and settings accuracy.

Check front HMI LEDs/display and status indicators on the GE 489-P5-LO-A20 each shift for alarms, healthy status, or communication faults.

Monitor key parameters (currents/voltages/power/thermal capacity/unbalance) and event logs via HMI or software for anomalies.

Inspect enclosure, cabling, and terminals for tightness, corrosion, dust, or damage affecting the GE 489-P5-LO-A20.

Verify time synchronization (if used) and RS485 links remain stable.

Clean ventilation/HMI screen (power off if needed) to prevent overheating or visibility issues on the GE 489-P5-LO-A20.

Review disturbance records, fault logs, and self-supervision periodically; backup settings routinely.

During planned outages, perform injection tests on critical protections (differential, ground, overcurrent) and contact GE Vernova/Hitachi Energy support or aftermarket suppliers for firmware, spares, or diagnostics on the GE 489-P5-LO-A20.
