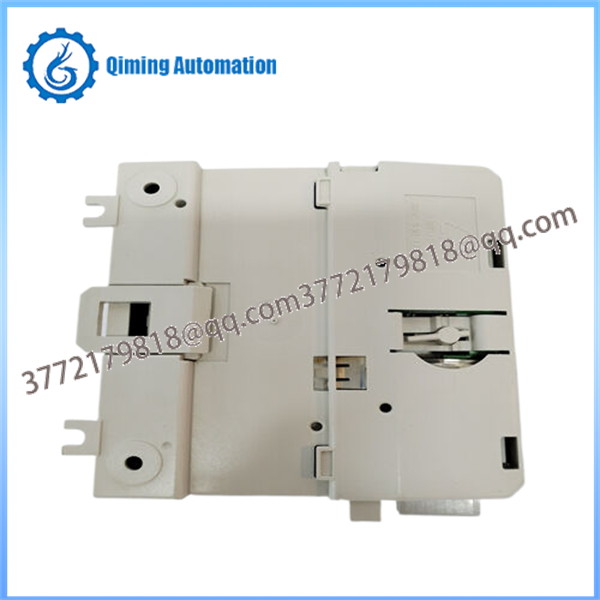

The ABB TU831V1 (Part Number: 3BSE013235R1) is a specialized Module Termination Unit (MTU) designed for the S800 I/O system. Unlike standard termination bases, the ABB TU831V1 is engineered specifically to support high-density analog and digital I/O modules that require extended terminal blocks or specific signal conditioning layouts. It acts as the critical physical interface between field wiring and the S800 electronic modules. The ABB TU831V1 integrates seamlessly with the ModuleBus architecture, ensuring automatic address propagation and reliable data transmission without the need for external termination components. Engineers often specify the ABB TU831V1 in applications where space optimization and robust signal integrity are paramount, particularly in complex process control loops. Its design allows for the secure mounting of various S800 modules while providing easy access for field technicians.

Model Designation: ABB TU831V1

Part Number: 3BSE013235R1

System Compatibility: ABB S800 I/O Series

Module Support: Compatible with a wide range of S800 analog and digital I/O modules requiring the V1 form factor.

Channel Density: Supports up to 16 channels per module, depending on the specific I/O unit installed on the ABB TU831V1.

Voltage Rating: Rated for 24 V DC auxiliary power and field distribution.

Communication Interface: Integrated ModuleBus connector for daisy-chain topology.

Mounting Style: Standard 35 mm DIN rail mounting with mechanical locking.

Environmental Specs: Operates within industrial temperature ranges (-40°C to +70°C) as defined in the S800 hardware manual.

Safety Features: Includes mechanical coding keys to prevent incorrect module installation on the ABB TU831V1.

Safety First: Isolate all power sources to the control cabinet before beginning work on the ABB TU831V1.

Rail Mounting: Slide the ABB TU831V1 onto the grounded DIN rail. Push firmly until the internal spring latch clicks, ensuring the unit is mechanically locked.

ModuleBus Wiring: Connect the ModuleBus ribbon cable from the upstream communication interface or previous MTU to the left-side port of the ABB TU831V1. Ensure the connector is fully seated. If the ABB TU831V1 is the last unit in the segment, verify that the bus termination is active (usually handled automatically by the hardware configuration).

Field Wiring: Prepare field wires according to the strip length specified in the ABB TU831V1 manual. Insert wires into the front terminals, following the specific pinout diagram for your I/O module type. Tighten screw terminals to the recommended torque (typically 0.5–0.6 Nm) to ensure a gas-tight connection.

Module Installation: Align the chosen S800 I/O module with the guide rails on the ABB TU831V1. Push the module forward until the rear connector mates with the base and the side latches engage.

Power Up: Restore power and observe the status LEDs. The ABB TU831V1 should show normal bus activity, indicating successful communication with the controller.

The ABB TU831V1 functions as a passive backbone for active I/O modules:

Signal Transmission: Field signals enter the terminals of the ABB TU831V1 and are routed directly to the pins of the mounted electronic module.

Bus Repeating: The unit regenerates ModuleBus signals, passing data and power to subsequent units in the chain, maintaining network stability.

Diagnostics Support: While the ABB TU831V1 does not process logic, it provides the necessary electrical pathways for the I/O module to report diagnostics (e.g., wire break, short circuit) to the controller.

Module Replacement: In supported configurations, technicians can swap the electronic module on the ABB TU831V1 without removing field wiring, significantly reducing maintenance time.

ESD Protection: Always wear an ESD wrist strap when handling the ABB TU831V1 and associated modules to prevent static damage to sensitive circuits.

Mechanical Coding: Utilize the coding pins/keys on the ABB TU831V1 to physically prevent the installation of incompatible I/O modules. This is a critical safety step to avoid system faults.

Wire Sizing: Use only the recommended wire gauges (typically 0.5 mm² to 2.5 mm²). Over-sized wires can crack the terminal housing of the ABB TU831V1, leading to connection failures.

Strain Relief: Secure field cables with cable ties near the ABB TU831V1 to prevent mechanical stress on the terminals during vibration or maintenance.

Thermal Management: Ensure adequate airflow around the ABB TU831V1, especially when densely packed with high-power I/O modules, to prevent overheating.

Visual Inspection: Regularly check the ABB TU831V1 for signs of discoloration, melting, or physical impact damage.

Terminal Tightening: During annual shutdowns, re-torque the field wiring terminals on the ABB TU831V1 to compensate for thermal cycling and vibration.

Cleaning: Gently remove dust from the ABB TU831V1 using dry compressed air. Avoid chemical solvents that might degrade the plastic housing or labels.

LED Monitoring: Observe the diagnostic LEDs on the modules seated in the ABB TU831V1. Persistent fault lights may indicate a wiring issue at the ABB TU831V1 terminals rather than a module failure.

Documentation: Update maintenance logs whenever the ABB TU831V1 or its associated modules are serviced to ensure accurate traceability for future troubleshooting.
