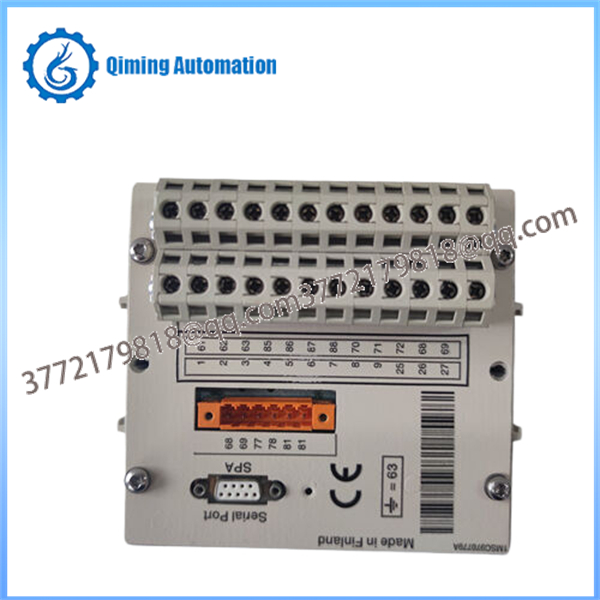

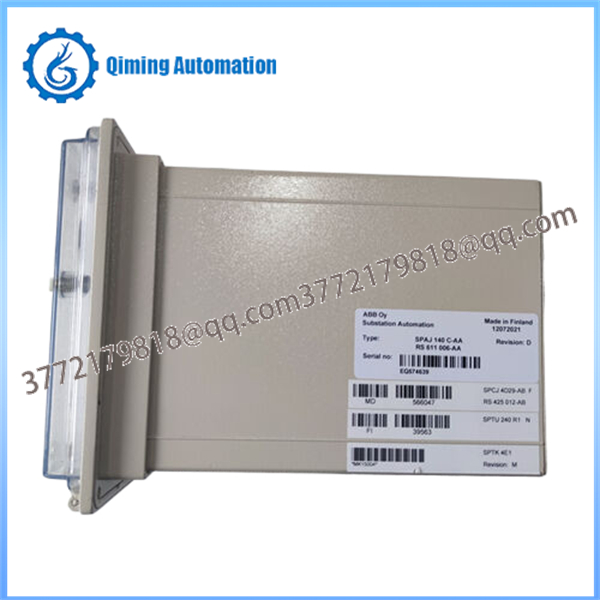

The ABB SPAJ140C serves as a critical defense mechanism for electrical grids, suitable for directly grounded, resistance grounded, or impedance grounded systems. It combines a three-phase overcurrent protection unit with an earth fault protection unit, both capable of trip and signal outputs. A key feature of the ABB SPAJ140C is its included circuit breaker failure protection function, which enhances system security by monitoring breaker operations. Whether used for feeder protection or as a backup for other schemes, the ABB SPAJ140C offers versatile configuration options to meet diverse grid requirements.

Protection Functions: The ABB SPAJ140C provides low-set and high-set overcurrent stages (IDMT or Definite Time) and corresponding earth fault stages.

Input Ratings: Supports standard current transformer (CT) inputs (typically 1A or 5A secondary currents) and auxiliary voltage supplies (e.g., 24–250V DC/AC), depending on the specific order code of the ABB SPAJ140C.

Output Contacts: Equipped with multiple programmable output relays for tripping circuits, alarms, and external signaling.

Communication: While primarily a standalone unit, certain versions of the ABB SPAJ140C support basic communication protocols for remote monitoring and setting adjustments.

Accuracy: High measurement accuracy ensures that the ABB SPAJ140C operates only when necessary, preventing nuisance tripping.

Correct installation is paramount for the reliable operation of the ABB SPAJ140C:

Mounting: The ABB SPAJ140C is designed for flush or semi-flush mounting in standard relay panels. Ensure the cut-out dimensions match the ABB SPAJ140C casing specifications.

Wiring: Connect CT secondary circuits carefully to the designated terminals on the ABB SPAJ140C. Polarity must be observed to ensure correct directional sensing if applicable.

Auxiliary Power: Verify that the supply voltage matches the rating label on the ABB SPAJ140C before energization to prevent immediate damage.

Grounding: Properly ground the relay case and the CT circuits to protect the ABB SPAJ140C from high-voltage transients and electrical noise.

Setting Verification: Before commissioning, double-check that the dip switches or software settings on the ABB SPAJ140C align with the protection coordination study.

Once installed, the ABB SPAJ140C operates autonomously but requires periodic human interaction for monitoring:

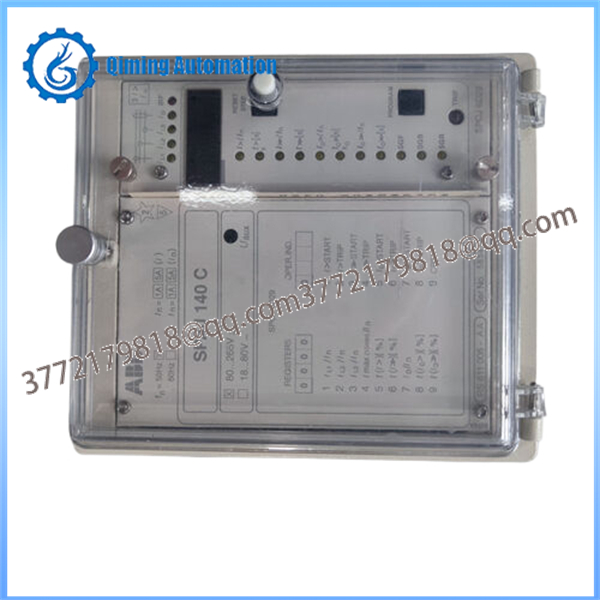

Normal Operation: Under normal conditions, the "Healthy" or "Ready" LED on the ABB SPAJ140C front panel should be illuminated.

Fault Indication: If a fault occurs, the ABB SPAJ140C will activate the relevant trip output and illuminate the specific fault LED (e.g., Overcurrent or Earth Fault). The relay also latches the indication until manually reset.

Resetting: After clearing a fault, the ABB SPAJ140C can be reset via the front panel reset button or a remote reset signal, preparing it for the next operation cycle.

Testing: Use the built-in test functionality of the ABB SPAJ140C to simulate faults and verify trip logic without injecting primary current.

Regular maintenance extends the service life of the ABB SPAJ140C and ensures grid reliability:

Visual Inspection: Periodically check the ABB SPAJ140C for any signs of physical damage, overheating, or loose wiring connections.

Cleaning: Keep the front panel and ventilation slots of the ABB SPAJ140C free from dust and debris using a dry, soft cloth or compressed air.

Functional Testing: Perform annual secondary injection tests on the ABB SPAJ140C to verify that pickup values and time delays remain within specified tolerances.

Firmware/Settings Audit: Review the protection settings of the ABB SPAJ140C whenever network topology changes occur to ensure continued coordination.

Contact Check: Inspect the output relay contacts of the ABB SPAJ140C for signs of arcing or wear, especially after multiple trip operations.

Documentation: Keep the technical manual and setting records for the ABB SPAJ140C readily available for troubleshooting and audit purposes.
