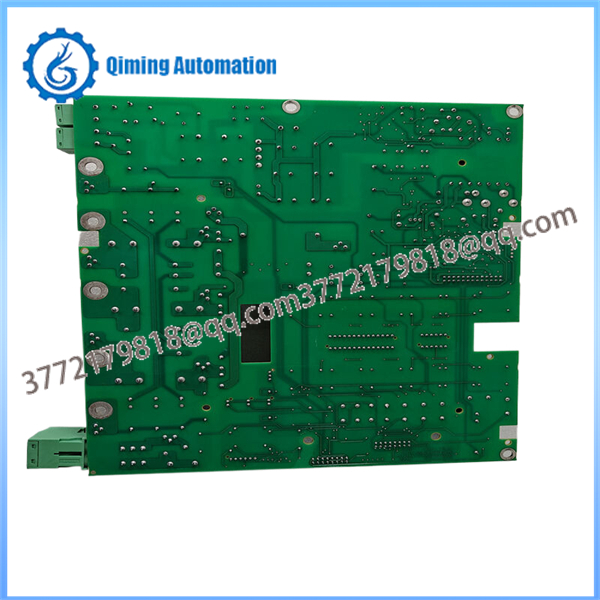

The ABB SDCS-PIN-4B (part number 3ADT316300R1510, variants include coated versions like SDCS-PIN-4-COAT / 3ADT314100R1001) is a power interface board (also known as voltage measurement/interface or main circuit interface board) from ABB's legacy DC drive series, primarily designed for DCS800 converter modules in sizes D1 to D4 (typically 20 A to 1000 A range), with compatibility in earlier DCS500/DCS600 systems. The ABB SDCS-PIN-4B provides essential interfacing between the control electronics (e.g., SDCS-CON-4) and the power section, including high-ohmic line voltage and DC bus voltage measurement (via resistors ~5 MΩ for standard 500 V units), armature firing pulse distribution, timing/synchronization, on-board transformer support, relay outputs, field supply interfacing, and power distribution for auxiliary circuits. The ABB SDCS-PIN-4B supports standard mains voltages from 200–525 V AC (up to 690 V in some configs) and enables low-voltage adaptations (<100–120 V AC) when paired with the optional SDCS-SUB-4 plug-on board for improved resolution and synchronization. The ABB SDCS-PIN-4B is a legacy/discontinued component (spares available via aftermarket, new/refurbished/repair), widely used in industrial DC motor control for metals, paper, cranes, textiles, and regenerative applications. Overall, the ABB SDCS-PIN-4B ensures accurate voltage feedback, stable drive operation, and reliable integration in classic ABB DC drive systems.

Model / Part Number,SDCS-PIN-4B / 3ADT316300R1510 (coated variant: SDCS-PIN-4-COAT / 3ADT314100R1001)

Device Type,"Power Interface Board (Voltage Measurement, Firing Pulse Interface, Field Supply Support)"

Primary Application,DCS800 converter modules sizes D1–D4; compatible with DCS500/DCS600 legacy

Voltage Measurement,"Line/DC bus via high-ohmic resistors (~5 MΩ standard for 500 V); range 200–525 V AC (up to 690 V); low-voltage option via SDCS-SUB-4 (<120 V AC, scaling to 117 V / 1.17 MΩ)"

Functions,"Armature firing pulses, timing/synchronization, relay outputs, on-board transformer, field exciter interface (internal for D1–D4), power supply distribution"

Connectors/Interfaces,"Multiple (e.g., X12 for SDCS-SUB-4 plug-on, X20/X21/X23/X24/X25 for cabling, X31 for supply selection 230 V/auto)"

Power Supply,Derived from drive (auxiliary ~24 V DC; integrated with SDCS-POW-4/others)

Operating Temperature,Industrial range (typically -15 °C to +55 °C; per drive enclosure)

Dimensions (approx.),~15.2 cm × 2.5 cm × 12.7 cm

Weight (approx.),~0.36–0.8 kg

Country of Origin,Finland / Sweden (typical ABB)

Life Cycle Status,"Discontinued / Legacy (aftermarket spares, repairs, refurbished units common)"

Power down the DCS800/DCS500 drive fully, lock out/tag out, discharge DC bus capacitors (per manual wait time), and confirm zero voltage before accessing the ABB SDCS-PIN-4B.

Locate the ABB SDCS-PIN-4B in the converter module (connected to SDCS-CON-4 control board and power thyristors).

For replacement: Carefully disconnect cables/connectors (note positions, e.g., voltage sense, field links, relays), unscrew/unclip, and remove the old ABB SDCS-PIN-4B.

Install the new ABB SDCS-PIN-4B: Align in slot, secure mounting, reconnect cables per original diagram (verify polarity for voltage measurement).

If low-voltage mains: Plug SDCS-SUB-4 onto X12, attach cabling (X20/X21/X23/X24/X25), and set parameter 95.28 (or 97.03) to 117 V in drive software for scaling.

Power up gradually; check drive HMI/diagnostics for correct voltage readings, synchronization, no faults, and normal relay/LED status on the ABB SDCS-PIN-4B.

Test: Operate drive at low load/speed, validate DC bus/line voltage feedback accuracy, firing pulses, and field supply.

Only qualified personnel trained in ABB DC drives should install/service the ABB SDCS-PIN-4B, following DCS800 Hardware Manual (3ADW000194) and safety guidelines.

Isolate mains/DC power, lock out/tag out, wait for full capacitor discharge (high voltage hazard), short CTs if applicable, and verify zero energy before handling the ABB SDCS-PIN-4B.

Use ESD protection (wrist strap, grounded mat) to avoid static damage to the ABB SDCS-PIN-4B.

Confirm cable polarity (voltage sense leads critical) and tight connections; route away from high-power lines to reduce noise.

Verify drive size compatibility (D1–D4) and firmware; adjust scaling parameters if SDCS-SUB-4 is used.

Do not modify board or bypass functions; ensure ventilated enclosure meets drive environmental ratings.

Monitor drive HMI/diagnostics each shift for voltage/sync-related alarms, undervoltage/overvoltage, or interface board faults tied to the ABB SDCS-PIN-4B.

Visually inspect the ABB SDCS-PIN-4B area for dust, overheating signs, loose connectors, or corrosion.

Check DC bus/line voltage readings for stability and compare against expected values during operation.

Ensure drive ventilation/fans provide adequate airflow to avoid thermal stress on the ABB SDCS-PIN-4B.

Review event logs for anomalies; clean dust from board/vents (power off first) to maintain cooling.

During scheduled maintenance, verify voltage measurements with multimeter, test relays, and check cabling integrity; contact aftermarket suppliers or ABB/Hitachi Energy for spares or diagnostics on the ABB SDCS-PIN-4B.
