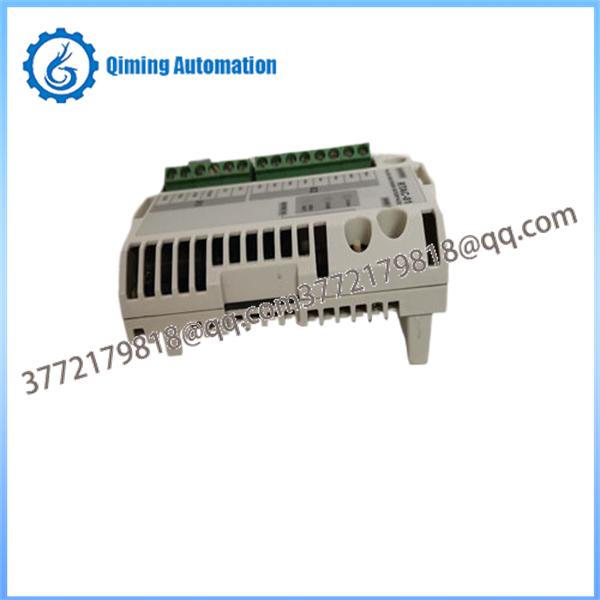

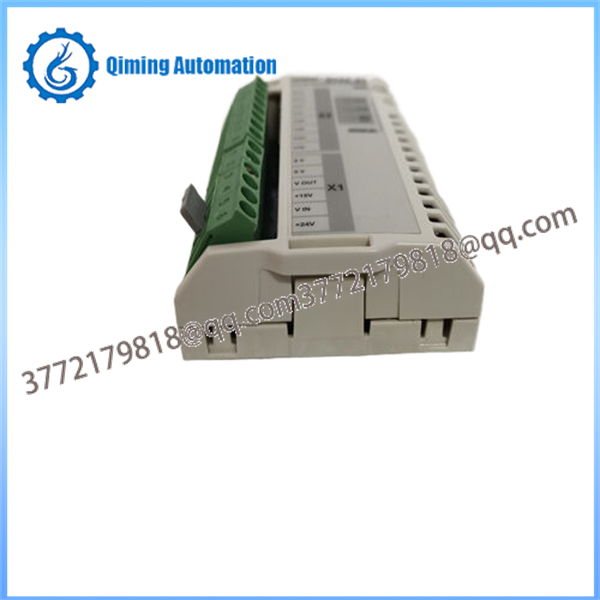

The ABB RTAC-01 OPTION/SP KIT is a specialized interface module designed for ABB industrial drive systems, specifically serving as a pulse encoder feedback option. The ABB RTAC-01 OPTION/SP KIT enables precise speed and position control by connecting incremental encoders to ABB AC drives (such as the ACS800, ACS850, or ACS880 series). As a critical component in closed-loop vector control applications, the ABB RTAC-01 OPTION/SP KIT ensures high dynamic performance, making it essential for industries requiring accurate motion control, such as cranes, elevators, winders, and test benches. The kit typically includes the ABB RTAC-01 hardware module, necessary mounting hardware, and configuration documentation.

The ABB RTAC-01 OPTION/SP KIT is engineered to meet rigorous industrial standards with the following specifications:

Function: Incremental pulse encoder interface for speed and position feedback.

Input Signals: Supports TTL/HTL differential or single-ended encoder signals (A, B, Z channels).

Supply Voltage: Typically powered by the drive unit (e.g., +5V, +15V, or +24V DC output from the drive to the encoder).

Max Frequency: Capable of handling high-frequency pulse inputs (up to 300 kHz or higher depending on the drive firmware).

Compatibility: Designed for use with ABB standard control units (e.g., RDCU, ZCU) in ACS800/ACS850/ACS880 drives.

Operating Temperature: -20°C to +55°C (standard industrial range).

Protection: Short-circuit protection for encoder supply and input channels.

Mounting: Direct plug-in to the drive’s option slot or DIN-rail mount within the control cabinet.

The "OPTION/SP" designation in the ABB RTAC-01 OPTION/SP KIT indicates it is a spare parts kit or specific sales package containing the module and associated accessories.

To operate the ABB RTAC-01 OPTION/SP KIT effectively within a drive system:

Installation: Insert the ABB RTAC-01 module into the designated option slot of the ABB drive control unit (e.g., RDCU-02C).

Wiring: Connect the motor encoder cables to the terminal block or sub-D connector on the ABB RTAC-01, ensuring correct pin assignment for A, B, and Z signals.

Parameter Setup: Access the drive’s control panel or PC tool (e.g., DriveWindow or DriveComposer) to configure encoder parameters (pulses per revolution, signal type, filtering).

Direction Check: Verify the rotation direction; if reversed, swap A/B phases or adjust the drive parameter via the ABB RTAC-01 interface settings.

Closed-Loop Activation: Enable the closed-loop control mode (Vector Control with Encoder) in the drive macro configuration.

Monitoring: Observe actual speed feedback versus reference speed to ensure the ABB RTAC-01 is providing stable and accurate data.

Proper configuration of the ABB RTAC-01 OPTION/SP KIT is vital for achieving zero-speed stability and high torque accuracy.

When installing the ABB RTAC-01 OPTION/SP KIT, adhere to these guidelines:

Slot Compatibility: Ensure the ABB RTAC-01 is inserted into a compatible option slot on the drive control unit; forcing it can damage pins.

Cable Shielding: Use shielded twisted-pair cables for encoder connections to the ABB RTAC-01 to prevent electromagnetic interference (EMI) from power cables.

Grounding: Ground the cable shield at one end (typically the drive side) to avoid ground loops affecting the ABB RTAC-01 signal integrity.

Voltage Matching: Verify that the encoder supply voltage matches the configuration of the ABB RTAC-01 (e.g., 5V vs. 24V) to prevent hardware damage.

Mechanical Security: Secure the module firmly to prevent vibration-induced disconnection, especially in mobile applications like cranes.

Signal Integrity: Keep encoder cables away from high-frequency switching noise sources near the ABB RTAC-01.

Correct installation ensures the ABB RTAC-01 OPTION/SP KIT delivers reliable feedback under harsh industrial conditions.

The ABB RTAC-01 OPTION/SP KIT is an indispensable component for enhancing the performance of ABB drive systems in closed-loop applications. By providing accurate and reliable encoder feedback, the ABB RTAC-01 OPTION/SP KIT enables superior speed regulation, torque control, and positioning accuracy. From careful installation and parameter tuning to proactive maintenance, the ABB RTAC-01 OPTION/SP KIT ensures that industrial machinery operates at peak efficiency. Whether upgrading an existing system or designing a new application, the ABB RTAC-01 OPTION/SP KIT delivers the precision and reliability required for modern automation.
