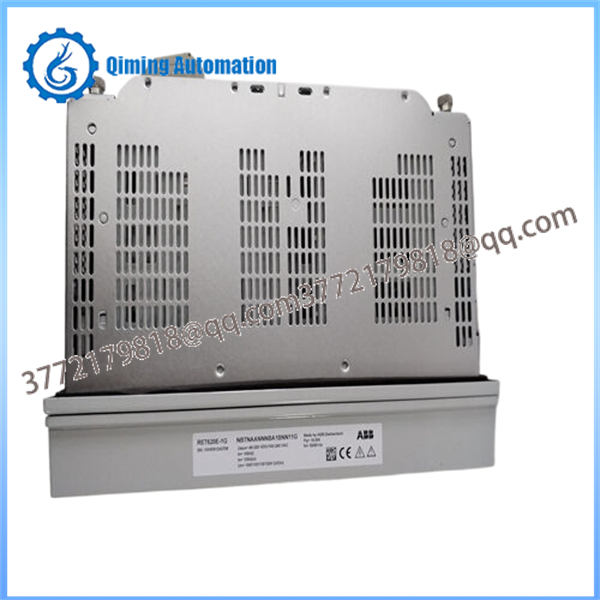

The ABBRET620E-1G stands as a sophisticated protection IED within ABB's Relion® 620 family, specifically configured for transformer applications . This ABB RET620E-1G model provides an integrated suite of protection, control, measurement, and monitoring functions for power transformers and generator-transformer units in substations and industrial distribution networks . Designed to meet the rigorous demands of modern power systems, the ABB RET620E-1G excels in protecting two- or three-winding transformers across various configurations, including single or double busbar arrangements . The ABB RET620E-1G leverages advanced communication capabilities based on the IEC 61850 standard, enabling seamless interoperability and horizontal communication within substation automation systems . With its withdrawable plug-in unit design, the ABB RET620E-1G facilitates swift installation, testing, and maintenance, ensuring minimal downtime for critical transformer assets .

Parameter Specification for ABB RET620E-1G

Product Series ABB Relion® 620 Series

Product Type Transformer Protection and Control Relay

Auxiliary Voltage 100-240V AC/DC

Current Inputs Configurable 1A or 5A CT secondary

Frequency Range 50/60 Hz

Communication Protocols IEC 61850 (Ed1/2, including HSR/PRP, GOOSE), IEC 60870-5-103, Modbus, DNP3

Operating Temperature -40°C to +70°C

Protection Rating IP20 (module)

Dimensions (W×H×D) 177mm × 177mm × 201mm

Weight Approximately 4 kg

Proper installation of the ABB RET620E-1G is critical for ensuring accurate transformer protection and long-term reliability. Key precautions for handling the ABB RET620E-1G include:

Pre-Installation Preparation: Carefully read the product manual for the ABB RET620E-1G before installation. Ensure the environment meets specifications for temperature, humidity, and vibration, operating within -40°C to +70°C .

Mounting: Securely mount the ABB RET620E-1G on a panel or DIN rail as specified, ensuring adequate space for wiring and cooling. The ABB RET620E-1G features a withdrawable plug-in unit design for easy installation .

Wiring: Strictly adhere to the wiring diagrams provided in the ABB hardware manual for the ABB RET620E-1G. Verify correct polarity, voltage levels, and CT connections for all analog and digital inputs .

Communication Setup: Properly configure the communication parameters for the ABB RET620E-1G to ensure seamless integration with station automation systems via protocols like IEC 61850, including redundant PRP/HSR options for enhanced reliability .

Grounding: Ensure the ABB RET620E-1G is properly grounded to minimize electrical noise and ensure personnel safety, following the manufacturer's guidelines .

Operating the ABB RET620E-1G involves configuration, monitoring, and control through its local interface or remotely via SCADA. Typical steps for commissioning and operating the ABB RET620E-1G are:

Configuration: Use ABB's engineering tool, such as PCM600, to configure the protection settings, logic, and communication parameters for the ABB RET620E-1G according to specific transformer application requirements .

Power-Up: Apply auxiliary power to the ABB RET620E-1G within the 100-240V AC/DC range. The relay will perform self-diagnostics and initialize its operating system .

Verification: Use the large graphical LCD display to verify that the ABB RET620E-1G is measuring voltages and currents correctly and that communication with the SCADA system is established. The display shows customizable single-line diagrams for intuitive monitoring .

Monitoring: During normal operation, the ABB RET620E-1G continuously monitors transformer parameters, providing real-time data and status information through its web-browser-based HMI or local interface .

Control Operation: Authorized personnel can operate switching devices through the ABB RET620E-1G locally via its user-friendly interface or remotely via SCADA commands .

Event Analysis: In the event of a fault, utilize the disturbance recorder and event logging capabilities of the ABB RET620E-1G to capture high-resolution waveform data and analyze the disturbance .

While the ABB RET620E-1G is designed for high reliability, routine checks can extend its service life and ensure dependable transformer protection. Daily maintenance for the ABB RET620E-1G should include:

Visual Inspection: Regularly inspect the ABB RET620E-1G for any signs of damage, discoloration, or loose connections on the front panel and terminals .

Cleaning: Keep the ABB RET620E-1G and its surrounding area free of dust and debris to ensure proper cooling. The IP20 rating requires clean cabinet environments .

Indicator Monitoring: Check the status LEDs on the ABB RET620E-1G to ensure there are no warning or fault indications. The continuous self-supervision feature alerts operators to potential issues .

Event Log Review: Periodically review the event log of the ABB RET620E-1G for any recurring issues or unusual events that might indicate a developing problem .

Functional Testing: Perform periodic functional tests to verify the accuracy of protection functions and control logic for the ABB RET620E-1G, particularly following any configuration changes .

Firmware Updates: Stay informed about firmware updates from ABB for the ABB RET620E-1G to benefit from the latest features and security patches, supporting long-term asset management
