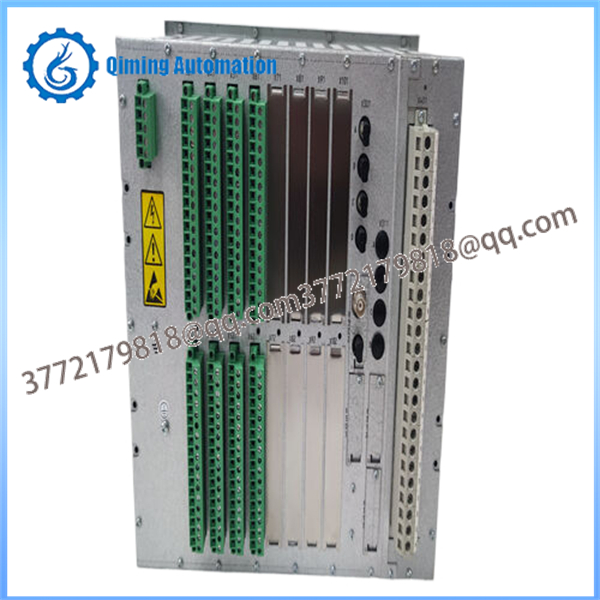

The ABB REC670 1MRK002814-AB is a versatile Bay Control Intelligent Electronic Device (IED) from the Relion® 670 series, designed for advanced protection, control, monitoring, and automation of substation bays in power transmission and distribution networks. As a member of ABB's Relion family, the ABB REC670 1MRK002814-AB provides comprehensive bay-level functionality, including breaker control, interlocking, synchrocheck, autoreclosing, event recording, and integration with SCADA or IEC 61850 systems. It is widely applied in high-voltage substations for line bays, transformer bays, bus coupler bays, or capacitor banks, offering high reliability, flexible configuration via PCM600 tools, and compliance with international standards for mission-critical power system operations. The ABB REC670 1MRK002814-AB excels in environments requiring robust bay management, fault detection, and seamless communication.

Key technical specifications of the ABB REC670 1MRK002814-AB (Relion 670 series hardware platform) include:

Processor and performance: High-speed DSP-based processing for real-time protection and control

Analog inputs: Configurable via Transformer Input Module (TRM), e.g., up to 12 current/voltage inputs (1 A or 5 A CT, 100–220 V VT)

Binary I/O: Extensive capability with Binary Input/Output modules (BIM/BOM), up to dozens of opto-isolated inputs and relay outputs

Power supply: Typically 24–60 V DC or 100–250 V DC/AC (wide range, redundant options available)

Communication: IEC 61850 Edition 1/2, DNP3, IEC 60870-5-103/104, Modbus, GOOSE messaging, horizontal communication

Synchronization: IRIG-B, PPS, SNTP for time stamping (1 ms accuracy)

HMI: Integrated graphical display with single-line diagram, push buttons, LEDs for local operation

Mounting: 1/2 19" or 1/1 19" rack, flush or semi-flush panel mount

Operating temperature: -25°C to +55°C (extended options available)

Protection rating: IP54 front, higher with accessories

Additional features: Disturbance recorder, event list, sequence of events, programmable logic (SMT, ACT), self-supervision

The ABB REC670 1MRK002814-AB is a pre-configured or customizable IED; exact I/O and function blocks depend on the ordered configuration and version.

To operate the ABB REC670 1MRK002814-AB effectively:

Power up the IED with the correct DC/AC supply and verify green Power LED and no alarm LEDs.

Connect to PCM600 software via Ethernet or front USB/IRIG-B port for configuration, parameter setting, and signal monitoring.

Configure bay-specific functions: breaker control, interlocking logic, synchrocheck before close, autorecloser, and protection elements.

Download the application configuration and settings; perform commissioning tests (injection for currents/voltages, binary simulation).

Use the local HMI to view single-line diagram, operate breakers (select-before-operate), acknowledge alarms, and view events/disturbance records.

Monitor real-time values, alarms, and GOOSE status; test remote control via SCADA or station level.

In redundant or multi-bay setups with the ABB REC670 1MRK002814-AB, verify inter-IED communication and failover if applicable.

These steps enable safe, reliable bay control and protection using the ABB REC670 1MRK002814-AB.

Proper installation of the ABB REC670 1MRK002814-AB requires adherence to safety and substation guidelines:

Mount in a 19" rack or panel with adequate ventilation and seismic considerations; use provided mounting kit for flush/semi-flush.

Disconnect all power and CT/VT circuits before wiring; short CT secondary terminals to avoid open-circuit hazards.

Connect power supply with correct polarity/voltage; use fused or breaker-protected feeds, preferably redundant.

Wire analog inputs (CT/VT) with shielded twisted pairs; ensure correct phase sequence and grounding.

Install binary I/O cables shielded where EMI is present; follow isolation groups per module.

Connect communication ports (optical/electrical Ethernet) with fiber for noisy environments; configure IP addresses and IEC 61850 SCL files.

Ground the IED chassis properly to protective earth; follow ESD precautions during module insertion.

After installation, power up gradually, check self-supervision, and perform full functional testing per ABB commissioning manual for the ABB REC670 1MRK002814-AB.

Routine maintenance for the ABB REC670 1MRK002814-AB ensures continuous reliability:

Visually inspect weekly for dust on vents/HMI, loose cables, or LED alarm indications.

Check daily HMI or SCADA for active alarms, events, or supervision warnings; acknowledge and investigate promptly.

Verify time synchronization status and battery backup (for RTC and disturbance records).

Monitor power supply voltages and communication links (GOOSE, MMS) for stability.

Download and review disturbance/event records periodically via PCM600; clear buffers as needed.

Perform functional tests (e.g., breaker operation simulation) during scheduled outages.

Update firmware/configuration only via ABB-approved procedures; backup settings regularly.

These practices help sustain high availability of the ABB REC670 1MRK002814-AB in substation operations.
