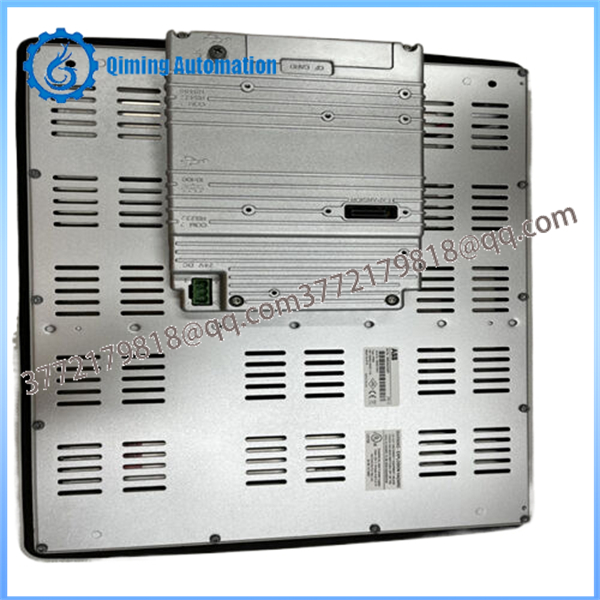

The ABB PP865 operator panel is part of the Panel 800 family and is typically used as the main HMI for medium to large process units such as power, water treatment, and manufacturing lines. In a typical project, the ABB PP865 is mounted on a cabinet door and connected via Ethernet or serial links to controllers like AC 800M, allowing operators to supervise trends, alarms, and set points in real time. With its 15 inch high resolution display and touch interface, the ABB PP865 provides clear process graphics and fast navigation between overview, detail, and diagnostic screens. The ABB PP865 helps reduce operator workload and training time by offering a consistent graphical style and integrated alarm handling across the plant. Overall, the ABB PP865 delivers a robust and user friendly HMI platform for demanding industrial environments.

Model ABB PP865 operator panel (Panel 800)

Typical ordering code 3BSE042236R1 (ABB PP865)

Product type 15 inch TFT LCD touch HMI / operator panel

Supply voltage 24 V DC nominal (typical 20–30 V DC range)

Display size 15 inch diagonal

Resolution Up to 1024 × 768 pixels (XGA class)

Touch input Resistive touch screen (with optional function keys, model dependent)

Front protection IP65/IP66 class front when correctly panel mounted

Mounting Pane mount front installation (cabinet door / panel cut out)

Interfaces (typical) Ethernet, serial ports (RS 232/422/485), USB (modeldependent)

Configuration tool Panel Builder 800 engineering software

Operating temperature Industrial range suitable for control room / cabinet mounting

Typical applications Process visualization, alarm handling, set point entry, manual operations

Startup and login

Apply 24 V DC power and allow the ABB PP865 to boot until the start screen or project home page is displayed.

Log in with the appropriate user credentials on the ABB PP865 if the project uses user access levels.

Process monitoring

Use the touch screen of the ABB PP865 to navigate between overview, detail, and alarm pages.

Monitor key process values, trends, and status indicators presented on the ABB PP865 graphics.

Control and setpoint entry

From relevant screens on the ABB PP865, adjust setpoints, start/stop commands, or mode selections as allowed by the project.

Confirm that feedback values update correctly on the ABB PP865 after each operation.

Alarm handling

When alarms occur, open the alarm list page on the ABB PP865 to view active and historical alarms.

Investigate causes according to plant procedures, correct the fault, and acknowledge alarms on the ABB PP865.

Panel cut out and mounting

Prepare the cabinet opening according to the mechanical drawing for ABB PP865, ensuring correct width, height, and corner radii.

Insert the ABB PP865 from the front and fasten it using the supplied brackets and screws so that the front gasket is evenly compressed to maintain its IP rating.

Power and wiring

Connect 24 V DC power to the ABB PP865 with correct polarity, using a dedicated fuse or circuit breaker where required.

Separate high voltage power cables from signal and communication cables, and use shielded cables for Ethernet/serial lines connected to the ABB PP865.

Grounding and EMC

Bond the protective earth terminal of the ABB PP865 to the cabinet ground with a short, low impedance conductor.

Ensure the controller system and ABB PP865 share the same reference ground to avoid communication issues.

Environmental conditions

Install the ABB PP865 in an enclosure that protects against dust, moisture, and mechanical damage.

Keep ambient temperature and humidity within specified limits and ensure ventilation openings around the ABB PP865 are not obstructed.

Visual inspection

Regularly check the ABB PP865 front for cracks, discoloration, or evidence of moisture ingress, and verify that mounting hardware is tight.

Inspect connectors and cables on the rear of the ABB PP865 for looseness or damage.

Cleaning

Clean the ABB PP865 screen with a soft, slightly damp lintfree cloth; avoid abrasive pads and strong solvents.

Remove dust from the surrounding panel area to maintain airflow and prevent heat buildup around the ABB PP865.

Functional checks and backup

Periodically confirm that main navigation buttons, alarm views, and critical control elements on the ABB PP865 respond correctly.

Keep up to date backups of the HMI project used on the ABB PP865 in a secure location, and update firmware or application only following ABB procedures.
