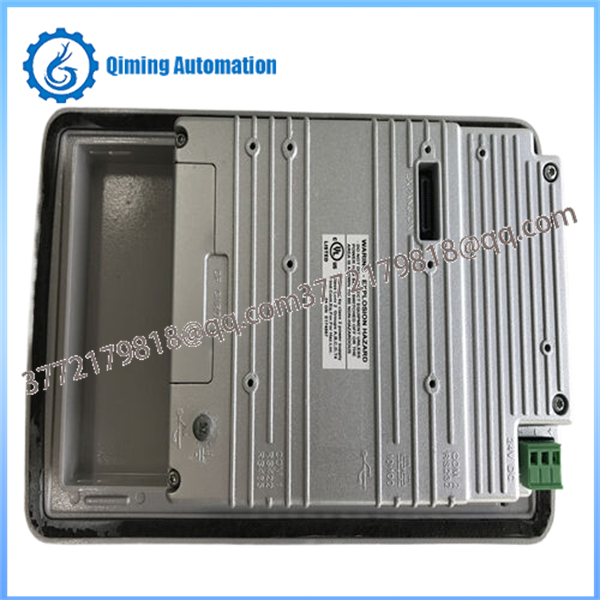

The ABB PP836 operator panel belongs to the ABB Panel 800 family and is designed for human–machine interface (HMI) tasks in process automation systems. It is typically used together with ABB AC 800M or similar controllers to visualize process data, acknowledge alarms, and perform manual control actions directly from the field. With its graphical display, function keys, and integrated communication interfaces, the ABB PP836 provides operators with a clear overview of plant status and fast access to key control functions. The ABB PP836 is suitable for applications in power plants, water treatment, chemicals, and general factory automation where reliable and intuitive HMI is required.

Model ABB PP836 operator panel (Panel 800 family)

Typical part no. 3BSE042237R1 (ABB PP836)

Product type Graphic operator panel / HMI for industrial control

Supply voltage +24 V DC (typically 20–30 V DC range)

Power connector 3 pin terminal block on the ABB PP836

Mounting Panel mount HMI, front panel installation (ABB PP836)

Display type Color TFT or similar industrial graphical display

Protection (front) Front panel designed for industrial environments (e.g. IP65 class enclosure)

Ambient temperature Approx. 0 °C to +50 °C when mounted vertically (ABB PP836)

Interfaces (typical) Ethernet, serial ports, USB (model dependent in Panel 800 family)

Configuration tool Configured using ABB Panel Builder 800 software

Compatible controllers ABB AC 800M and other PLC/DCS controllers supporting Panel 800

Intended use Process visualization, alarm display, set point entry, manual control

Power up and start

Ensure the ABB PP836 is correctly wired to a 24 V DC power source and protective earth, then switch on power.

Wait for the ABB PP836 to boot, and verify that the startup screen and status indicators appear as defined in your project.

HMI application loading

Use ABB Panel Builder 800 on a PC to create or modify the HMI project for the ABB PP836.

Transfer the project to the ABB PP836 via Ethernet, USB, or serial connection as supported, then restart the panel if required.

Normal operation

Operators use the ABB PP836 touch screen and keys to view process values, acknowledge alarms, and change set points.

The ABB PP836 communicates with the controller (for example, AC 800M) to read/write process data in real time.

Diagnostics and alarms

When alarms occur, the ABB PP836 displays alarm lists, timestamps, and statuses for operator acknowledgement.

If communication is lost or an internal fault is detected, the ABB PP836 can show diagnostic messages to help maintenance staff.

Panel mounting

Cut the cabinet opening according to the ABB PP836 mechanical drawing and ensure the panel front gasket sits evenly in the cut out.

Insert the ABB PP836 from the front and secure it using all supplied brackets and screws to maintain sealing and mechanical stability.

Electrical wiring

Use appropriately sized 24 V DC cables and follow correct polarity when connecting power to the ABB PP836.

Separate high voltage power cables from signal and communication cables, and use shielded communication cables for the ABB PP836 where specified.

Grounding and EMC

Connect the protective earth of the ABB PP836 with a short, low impedance conductor to the cabinet grounding bar.

Ensure the controller system and the ABB PP836 share the same reference ground to reduce communication errors.

Environmental conditions

Install the ABB PP836 in an enclosure that provides suitable IP and NEMA protection for the environment.

Do not cover enclosure ventilation openings; keep ambient temperature and humidity within the specified limits for ABB PP836.

Visual inspection

Regularly inspect the ABB PP836 front for damage, cracked display, loose bezels, or signs of moisture ingress.

Check that all connectors and terminal blocks on the rear of the ABB PP836 remain firmly tightened.

Cleaning

Keep the ABB PP836 screen and keypad clean using a soft, slightly damp (nonaggressive) cloth; avoid strong solvents or sharp tools.

Make sure the surrounding panel surface and vents remain free of dust to maintain proper cooling for the ABB PP836.

Functional checks

Periodically verify that all key screens, buttons, and alarm pages on the ABB PP836 respond correctly when touched or pressed.

Confirm that communication between the ABB PP836 and the controller is stable, and that data, trends, and alarms are updated correctly.

Backup and updates

Keep backup copies of the latest project file used in the ABB PP836 in a safe location.

When application or firmware updates are required, follow ABB’s recommended procedure to update the ABB PP836 with minimal downtime.
