The ABB PM902F medium base unit is a high performance CPU module in the Freelance / AC 900F controller family, designed for demanding process automation and hybrid DCS applications. In this case, the ABB PM902F controller serves as the central processing unit, executing control logic, coordinating field I/O, and handling communication with plant wide networks in a continuous production line. Thanks to its compact design and powerful processing capability, the ABB PM902F is well suited for power plants, chemical facilities, and oil & gas installations where high availability and reliability are essential. By combining the ABB PM902F controller with remote I/O stations and operator workstations, the plant achieves integrated monitoring, advanced control, and simplified engineering. The ABB PM902F solution provides a scalable platform that can grow with future expansion of the process units.

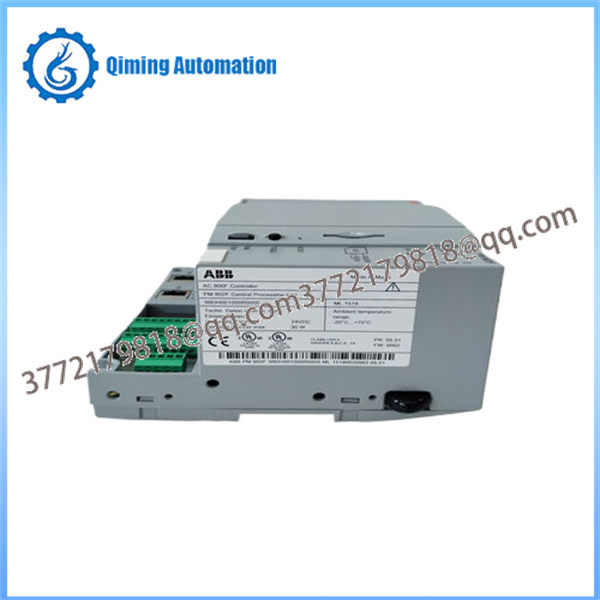

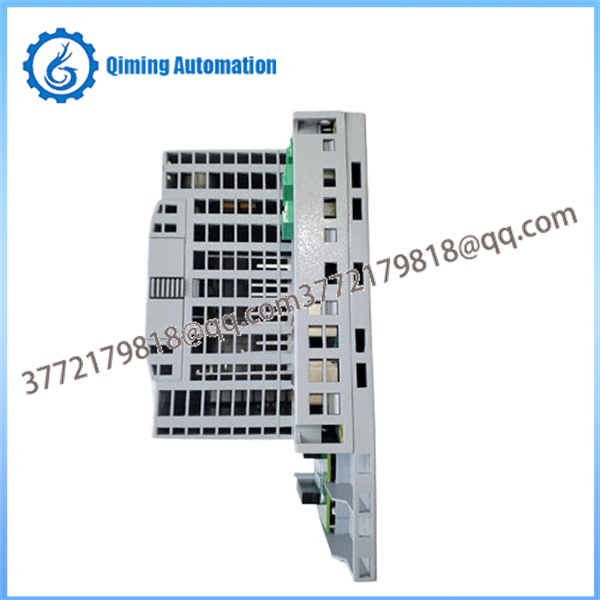

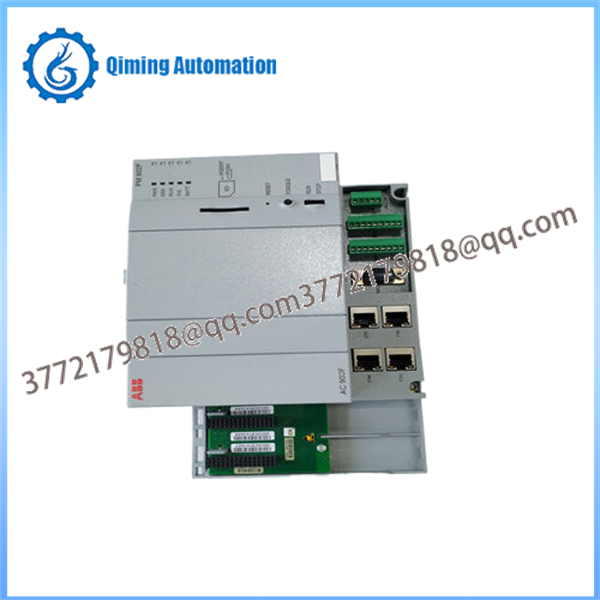

Model ABB PM902F CPU / medium base unit

Typical part number 3BDH001000R0001 (ABB PM902F)

Controller family Freelance / AC 900F DCS, ABB PM902F main controller

CPU performance High speed 32 bit processor for rea time control

Controller memory Integrated SRAM / DRAM for ABB PM902F application programs

Non volatile memory Flash memory for firmware and ABB PM902F configuration

Power supply 24 V DC nominal (ABB PM902F base unit)

Communication ports Ethernet ports, serial interfaces on ABB PM902F

Supported networks Industrial Ethernet, fieldbuses (e.g. Modbus, PROFIBUS, etc.)

Max. I/O capacity Supports large number of I/O channels via remote stations

Mounting DIN rail or cabinet mounting for ABB PM902F module

Operating temperature Industrial grade operating temperature range

Protection class Typical control cabinet protection for ABB PM902F electronics

System power up

Ensure the ABB PM902F controller is correctly wired to the 24 V DC power supply and protective earth.

Switch on power and confirm ABB PM902F status LEDs indicate normal startup (no error or fault state).

Engineering and configuration

Open the engineering tool for the Freelance / AC 900F system and create a project targeting ABB PM902F.

Configure network settings, I/O assignments, and controller parameters specific to the ABB PM902F base unit.

Application download

Compile the control program and download it to the ABB PM902F controller over the configured communication link.

After download, place the ABB PM902F into run mode and monitor key variables to verify correct behavior.

I/O and communication check

Confirm that all remote I/O stations and field devices communicate correctly with the ABB PM902F controller.

Check SCADA/HMI connectivity to ensure the ABB PM902F can exchange real time data, alarms, and trends.

Commissioning and optimization

Perform interlock tests, sequence checks, and safety logic verification with the ABB PM902F in a controlled environment.

Fine tune control loops, limits, and alarm thresholds based on actual process response handled by ABB PM902F.

Mechanical installation

Mount the ABB PM902F vertically on a stable DIN rail or within a control cabinet, with adequate clearance for ventilation and wiring.

Avoid placing the ABB PM902F near sources of excessive heat, moisture, or vibration; keep within the specified environmental limits.

Electrical wiring

Use correctly rated cables for 24 V DC power and ensure proper grounding and shielding when wiring the ABB PM902F.

Follow official wiring diagrams for communication ports and I/O connections to avoid damage to the ABB PM902F controller or field devices.

EMC and grounding

Implement a clean grounding concept, separating signal ground and protective earth where required around the ABB PM902F.

Route power and signal cables to minimize electromagnetic interference affecting the ABB PM902F control signals.

Visual and status checks

Regularly inspect the ABB PM902F front panel LEDs and diagnostic indicators for any warning or error conditions.

Check that connectors, terminals, and modules associated with the ABB PM902F are firmly seated and free of corrosion or damage.

Cleaning and environment

Keep the cabinet and the ABB PM902F module free from dust; clean using dry, nonstatic tools and never use liquid cleaners.

Periodically confirm cabinet temperature, humidity, and airflow remain within limits suitable for ABB PM902F longterm operation.

Functional verification and backup

Schedule periodic controller diagnostics, communication tests, and I/O loop checks to verify stable operation of ABB PM902F.

Regularly back up the application program and configuration of the ABB PM902F and store copies in a secure location for quick recovery.
