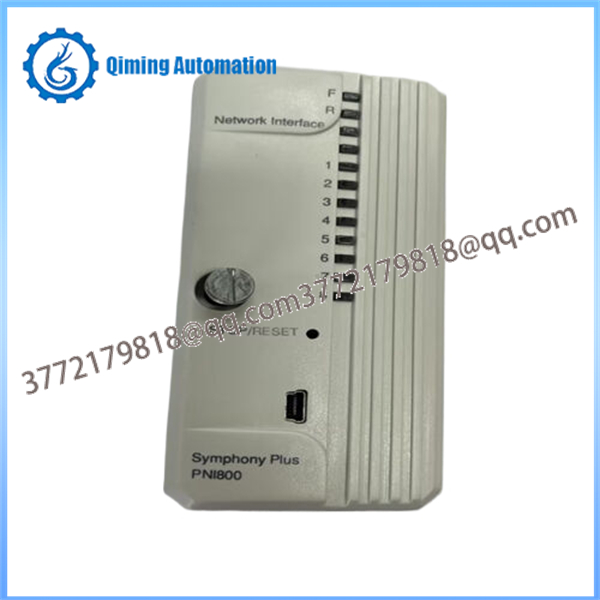

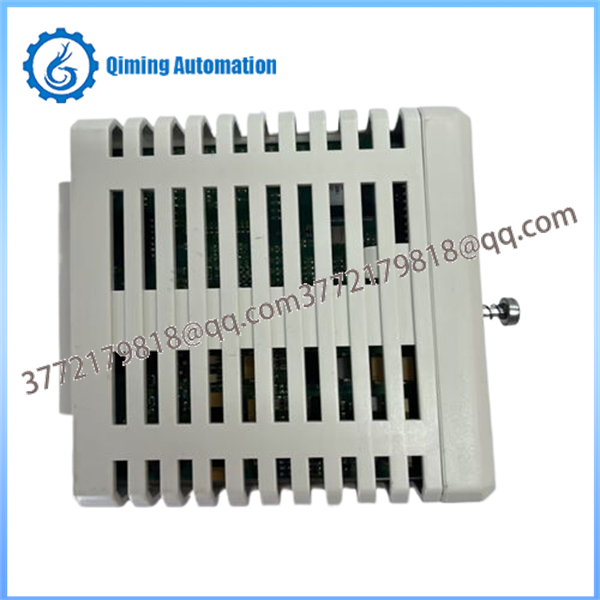

The ABB PNI800 (often referenced as PNI800K01 or PNI800K01A) is a Plant Network Interface module designed for ABB Ability™ Symphony® Plus systems, specifically enabling real-time, bi-directional communication between SD Series controllers and PC-based workstations. This module connects PCs running engineering tools (S+ Engineering), HMI/SCADA applications (such as SPO, 800xA Operations), or third-party interfaces (e.g., Harmony OPC Server) to the PN800 real-time control network. Supporting IEC 62439 Parallel Redundancy Protocol (PRP), the ABB PNI800 eliminates single points of failure and delivers zero switch-over time during network faults, ensuring high reliability in process industries like power, chemicals, and manufacturing. The ABB PNI800 is essential for any PC requiring access to the PN800 network, with a separate software license key (PNI800SWLIC-01) required for full functionality.

Key technical specifications of the ABB PNI800 include:

Network protocol: PN800 real-time control network with IEC 62439 PRP support for seamless redundancy

Communication: Bi-directional, real-time data exchange between controllers and PC applications

Interfaces: Dual Ethernet ports (for PRP redundancy), typically RJ45 connectors

Compatibility: SD Series controllers (Symphony Plus), S+ Engineering, 800xA Operations, Harmony OPC Server, and general SCADA/HMI software

Redundancy: PRP eliminates switch-over delays and single failure points

Power supply: Standard industrial 24 V DC (exact consumption varies by configuration)

Mounting: DIN-rail or panel mount in control cabinets

Operating temperature: Typical industrial range (e.g., -20°C to +60°C, confirm per installation)

Additional features: High-performance data throughput, fault-tolerant design, plug-in module for easy integration

The ABB PNI800 kit (PNI800K01) typically includes the interface module itself; note that the software license must be ordered separately.

To operate the ABB PNI800 effectively:

Install the ABB PNI800 module in the PC or workstation requiring PN800 network access and connect dual Ethernet cables to redundant PRP network switches.

Power on the PC and the connected SD Series controllers; verify network link LEDs on the ABB PNI800 indicate active connections.

Install and activate the required software license key (PNI800SWLIC-01) via ABB tools.

Launch S+ Engineering, 800xA Operations, or compatible HMI/SCADA software and configure the PN800 network connection using the ABB PNI800 interface settings.

Establish communication: Download configurations, monitor real-time data from controllers, and perform engineering or operator tasks.

Monitor status indicators and system logs for any PRP redundancy events or communication faults.

In redundant setups, test network failover to confirm zero-time switch-over using the ABB PNI800's PRP capabilities.

These steps enable seamless, reliable interaction with the control network via the ABB PNI800.

Proper installation of the ABB PNI800 requires careful attention:

Mount the module securely on a DIN rail or in a PC expansion slot (if applicable) within an IP20 or better protected enclosure.

Disconnect power before connecting or disconnecting cables; use shielded Ethernet cables for PRP links to minimize EMI.

Connect both Ethernet ports to separate, redundant network paths (PRP A and B) for full redundancy benefits.

Ensure compatibility with the PN800 network infrastructure and SD Series controllers.

Install the ABB PNI800 only after verifying PC hardware meets ABB requirements (e.g., sufficient CPU, memory, and OS support).

Ground the module properly and follow ESD precautions during handling.

Order and apply the separate software license key (PNI800SWLIC-01) post-installation for operational use.

Maintain ambient conditions within specified limits and avoid exposure to excessive dust, vibration, or temperature extremes when deploying the ABB PNI800.

Routine care for the ABB PNI800 ensures long-term reliability:

Visually inspect Ethernet connections, cables, and module LEDs weekly for secure attachment and active status.

Monitor system logs in the connected software for communication errors, PRP events, or warnings.

Check network redundancy health periodically via diagnostic tools to confirm zero switch-over capability.

Clean dust from vents and connectors as needed, using compressed air (power off first).

Verify software license status and apply any ABB-recommended updates or patches through official channels.

In environments with high network traffic, review performance metrics and logs monthly.

Replace cables proactively if signs of wear appear to maintain optimal performance of the ABB PNI800.

These practices help prevent communication disruptions in critical systems.

The ABB PNI800 serves as a critical bridge in ABB Symphony® Plus architectures, facilitating high-speed, deterministic data flow between field controllers and upper-level applications without compromising safety or availability. Leveraging PRP redundancy, it achieves sub-millisecond fault recovery and supports demanding real-time requirements in large-scale plants. The module integrates smoothly with ABB's ecosystem, including SD Series hardware, 800xA platforms, and legacy Harmony systems via OPC interfaces. Compact and robust, the ABB PNI800 fits standard industrial setups while providing scalable connectivity for engineering, operations, and supervisory tasks. Users gain benefits such as enhanced diagnostics, easy troubleshooting, and future-proof network reliability. Overall, the ABB PNI800 delivers a secure, high-performance solution for plant-wide communication, combining redundancy, real-time performance, and seamless PC integration in modern process automation environments.
