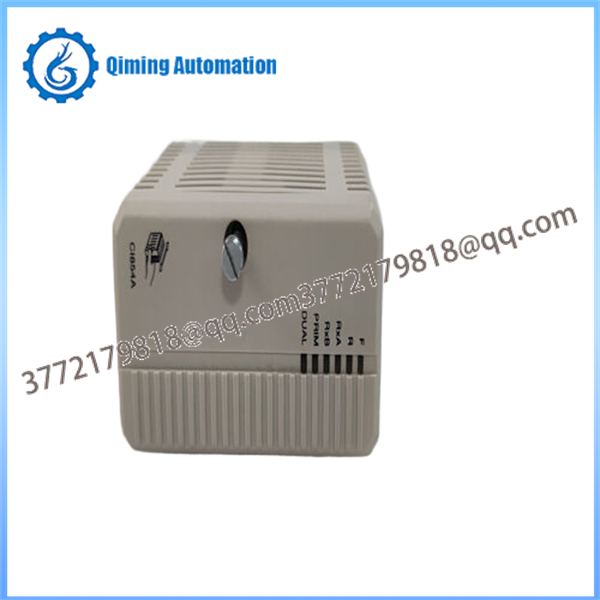

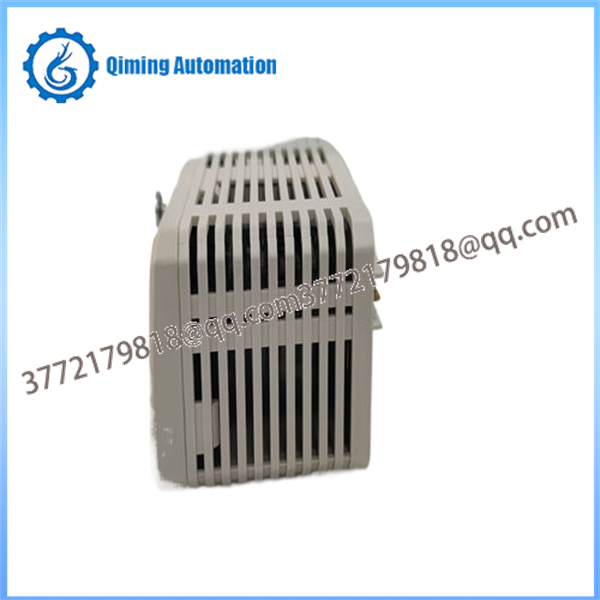

The ABB CI854A 3BSE030221R1 is a PROFIBUS DP-V1 communication interface module designed for the ABB AC 800M controller within the System 800xA and Advant automation platforms. It serves as a high-performance master interface, enabling reliable, high-speed data exchange between the AC 800M controller and PROFIBUS DP/DP-V1 field devices such as remote I/O stations, variable speed drives, motor management systems, low-voltage switchgear, and intelligent instruments.

The module features two independent PROFIBUS ports that support line redundancy and master redundancy when paired with a second CI854A unit. It operates as a PROFIBUS DP-V1 master, providing both cyclic data exchange and acyclic services for parameterization, diagnostics, and configuration of slaves. This makes the CI854A suitable for integrating a wide range of fieldbus instruments while maintaining deterministic performance up to 12 Mbit/s.

In comparison with the newer CI854B (3BSE069449R1), the CI854A remains fully supported as a classic spare part for existing installations. The CI854B offers equivalent or improved functionality for new projects. The CI854A is typically supplied with the TP854 baseplate (as part of CI854AK01) and mounts directly on the CEX bus of the AC 800M. Its design supports hot swap, module redundancy, and integration with high-integrity (HI) controllers, ensuring high availability in critical process applications.

The CI854A delivers robust PROFIBUS connectivity with the following key capabilities:

Dual-Port PROFIBUS DP-V1 Master: Two independent channels (ports) for line redundancy; supports full DP-V1 acyclic communication for slave parameterization and extended diagnostics.

High-Speed Operation: Transmission rates from 9.6 kbit/s to 12 Mbit/s, with automatic baud rate detection and configuration.

Redundancy Support: Line redundancy via dual ports; master redundancy using two CI854A modules. Can be combined with CPU redundancy and CEX bus redundancy (e.g., BC810).

Slave Capacity: Supports a large number of PROFIBUS DP slaves per channel (up to the PROFIBUS specification limits, typically 125 addresses per segment with repeaters).

Hot Swap Capability: Modules can be replaced during operation without interrupting the controller or other communication channels.

PROFIBUS PA Integration: Possible via linking devices such as LD 800P for seamless connection of PROFIBUS PA segments.

Diagnostics and Supervision: Extensive diagnostic information from slaves is passed to the controller and System 800xA for asset monitoring and maintenance.

CEX Bus Integration: Mounts on the AC 800M CEX bus; up to 12 communication modules per controller (depending on configuration).

These features enable efficient integration of field devices while reducing wiring, improving diagnostics, and supporting flexible system architectures.

Key specifications for the ABB CI854A 3BSE030221R1:

Protocol: PROFIBUS DP-V1 (Master)

Number of Channels: 2 (dual ports for line redundancy)

Transmission Speed: 9.6 kbit/s to 12 000 kbit/s

Connector: 9-pin D-sub female (DB9) per port

Power Supply: 24 V DC (supplied via CEX bus)

Power Consumption: Typical 190 mA at 24 V DC

Maximum Units on CEX Bus: 12

Operating Temperature: +5 °C to +55 °C (+41 °F to +131 °F)

Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

Relative Humidity: 5 to 95 %, non-condensing

Protection Class: IP20 (EN 60529 / IEC 529)

Dimensions (H × W × D): 185 mm × 59 mm × 127.5 mm (7.3 in × 2.3 in × 5.0 in)

Weight (including baseplate): Approximately 700 g (1.5 lbs)

Certifications: CE marking; marine approvals (BV, DNV-GL, LR); suitable for hazardous areas in qualified configurations (Class 1 Zone 2 in some setups)

The module requires proper termination on the PROFIBUS network. For correct operation, the termination connector must be plugged in and powered where applicable. Consult the AC 800M PROFIBUS DP Configuration manual for detailed bus parameter settings (e.g., HSA, slot time, gap).

The CI854A is widely used in process automation environments requiring reliable fieldbus integration:

Oil & Gas and Petrochemical: Integration of remote I/O, drives, and analyzers in hazardous areas.

Power Generation: Connection of motor control centers, electrical equipment, and auxiliary systems.

Chemical and Pharmaceutical: Linking of intelligent instruments and batch control devices.

Water & Wastewater: PROFIBUS networks for pumps, valves, and flowmeters.

Metals, Mining, and Pulp & Paper: Motor management and conveyor control via PROFIBUS DP.

Typical scenarios include expansion of existing AC 800M systems with PROFIBUS field devices, retrofit projects replacing older communication modules, and redundant architectures for high-availability applications. For PROFIBUS PA segments, combine with LD 800P linking devices. When higher performance or RoHS compliance is needed in new builds, the CI854B is recommended. The module also supports integration with ABB’s Device Management tools for PROFIBUS and HART.

Mounting: Install the CI854A on the TP854 baseplate and mount the assembly on the DIN rail in the AC 800M controller rack. Ensure proper CEX bus connection and mechanical locking.

PROFIBUS Cabling: Use shielded twisted-pair PROFIBUS cable (type A recommended). Connect to the 9-pin D-sub ports. Implement proper termination at both ends of each segment. For redundant lines, route cables separately to avoid common-mode failures.

Power and Configuration: The module receives 24 V DC from the CEX bus. Use Control Builder M or the System 800xA engineering tools to configure the CI854A, set baud rate, node address, and bus parameters. Download configuration to the AC 800M controller.

Redundancy Setup: For master redundancy, install two CI854A modules and configure accordingly. Test failover behavior during commissioning.

Safety: Only qualified personnel should perform installation. Observe ESD precautions. In hazardous areas, verify certification and follow applicable standards (e.g., ATEX, IECEx). De-energize the controller section if hot-swap is not used.

Refer to the AC 800M PROFIBUS DP Configuration manual (e.g., 3BDS009030) and the CI854A data sheet for detailed wiring diagrams, bus parameter calculations, and termination guidelines.

Daily Maintenance and Simple Troubleshooting

The CI854A is a solid-state module with no moving parts and requires minimal routine maintenance:

Routine Inspections: Periodically check module LEDs for communication status, power, and fault indications. Verify cable connections and termination remain secure. Ensure the cabinet environment stays within temperature and humidity limits.

Diagnostics: Monitor PROFIBUS diagnostics via the AC 800M controller, System 800xA operator stations, or engineering tools. Use slave diagnostic buffers and system event logs for detailed analysis.

Firmware/Configuration: Keep controller and module firmware consistent. Back up configurations regularly.

No Communication: Verify power supply, module seating on CEX bus, correct node address, and baud rate matching on master and slaves. Check cable continuity, shielding, and termination.

Intermittent or Partial Communication: Inspect for loose connectors, cable damage, or electromagnetic interference. Reduce baud rate temporarily for testing. Review bus parameters (e.g., slot time, gap) if slaves are added or removed.

Redundancy Failover Issues: Confirm both ports/lines are properly wired and terminated. Test redundancy manually via engineering tools.

Diagnostic Alarms: Read slave diagnostics for specific device faults (e.g., configuration errors, hardware failures). Use PROFIBUS diagnostic tools or ABB’s Fieldbus Builder if available.

Module Not Recognized: Check CEX bus loading and firmware compatibility. Swap with a spare module to isolate the issue.

For persistent problems, collect diagnostic logs and contact ABB support with the system version, module firmware, and detailed fault descriptions. Maintain spare CI854A modules and PROFIBUS termination components on site for critical systems.

The ABB CI854A 3BSE030221R1 provides proven, redundant PROFIBUS DP-V1 connectivity that integrates field devices seamlessly into AC 800M-based control systems. Its dual-port design, high-speed capability, and redundancy features deliver reliable performance and reduced downtime in industrial automation applications. For new installations, consider the CI854B successor; for existing systems, the CI854A ensures long-term support and spare part availability. Always consult the latest ABB documentation, hardware selectors, and configuration manuals for project-specific engineering and compatibility details.
