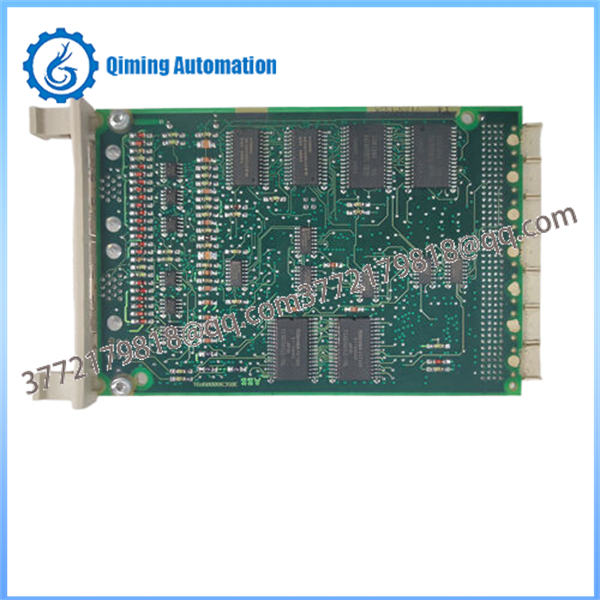

The ABB CI522AK04 (3BSE018451R1) is a high-performance PROFIBUS-DP communication interface module designed for ABB's AC 800M controller family and S800 I/O systems . As a core component of ABB's IndustrialIT Extended Automation System 800xA, the CI522AK04 enables seamless data exchange between ABB controllers and PROFIBUS-DP field devices, supporting both master and slave configurations for maximum integration flexibility . This guide provides comprehensive technical specifications, application examples, installation precautions, and maintenance procedures for the ABB CI522AK04 3BSE018451R1 communication module.

Model Number ABB CI522AK04

Order Code 3BSE018451R1

Product Type PROFIBUS-DP Communication Interface Module

Product Series AC 800M / S800 I/O

Communication Protocol PROFIBUS-DP (DPV1), supports master/slave modes

Transmission Rate 9.6 kbps – 12 Mbps (auto-negotiation)

Bus Topology Line, star (with repeater); up to 127 nodes per bus

Maximum Cable Length 1000 m (9.6 kbps); 100 m (12 Mbps)

Power Supply 24V DC ±10% (19.2 – 30V DC)

Power Consumption ≤ 3.5 W

Isolation Voltage 500V AC (bus isolation)

Operating Temperature -25°C to +70°C

Storage Temperature -40°C to +85°C

Protection Rating IP20

Mounting 35mm DIN rail (IEC 60715)

Dimensions (W x H x D) 80 mm × 160 mm × 220 mm

Weight Approx. 0.5 kg

Status Indicators RUN, ERR, BUS, DIA LEDs

Certifications CE, UL, PROFIBUS Conformance Test Certificate

System Compatibility ABB AC 800M controllers, System 800xA, S800 I/O stations

PROFIBUS-DP Master/Slave Operation – The ABB CI522AK04 supports both master and slave configurations, enabling flexible integration into existing PROFIBUS networks as either a network controller or a subordinate device .

High-Speed Data Transmission – With auto-negotiating baud rates from 9.6 kbps up to 12 Mbps, the 3BSE018451R1 ensures rapid data exchange between controllers and field devices, critical for time-sensitive automation applications .

S800 I/O Form Factor – The single-width CI522AK04 mounts directly on TU8xx series terminal bases (e.g., TU810, TU812, TU842), enabling quick installation and hot-swappable replacement without disturbing field wiring .

Comprehensive Diagnostics – Front-panel LEDs (RUN, ERR, BUS, DIA) provide real-time status indication, simplifying commissioning and troubleshooting. The ABB CI522AK04 also supports SNMP network management for remote diagnostics .

Industrial-Grade Isolation – Features 500V AC isolation between the PROFIBUS bus and internal circuitry, protecting the 3BSE018451R1 and connected controllers from electrical noise and ground loops .

Wide Operating Temperature Range – Engineered for harsh industrial environments, the CI522AK04 operates reliably from -25°C to +70°C, making it suitable for outdoor cabinets and unconditioned plant floors .

Redundant Communication Support – When used with ABB's Advant OCS systems, the ABB CI522AK04 can be configured as part of the AF100 Communication Interface Kit (including CI522A module, TC512 modems, and TK803 cables) for redundant communication setups that enhance system reliability .

DIN Rail Mounting – The compact 3BSE018451R1 installs on standard 35mm DIN rail, allowing easy integration into new or existing control cabinets without specialized tools .

System 800xA Compatibility – Fully integrated with ABB's System 800xA distributed control system, the CI522AK04 enables seamless data flow between controllers and higher-level SCADA/MES systems .

ABB CI522AK04 (3BSE018451R1) Primary model – PROFIBUS-DP communication interface module (this guide)

ABB CI522A (3BSE018283R1) Base interface module component of the AF100 Communication Kit; used with CI522AK04 in redundant configurations

ABB CI858K01 (3BSE018135R1) Dual-port Ethernet communication module for AC 800M; alternative for Ethernet-based networks

ABB CI854A PROFIBUS-DP communication interface for S800 I/O; similar functionality to CI522AK04 for larger I/O counts

ABB CI873 Ethernet/IP communication module for S800 I/O; alternative for Rockwell Automation integration

ABB PM861 / PM863 / PM864 AC 800M CPU modules commonly paired with 3BSE018451R1 for control logic execution

ABB TU810 / TU812 / TU814 / TU842 Terminal base units for S800 I/O; required for mounting and wiring the CI522AK04

ABB TB805 ModuleBus connectors for daisy-chaining S800 modules with 3BSE018451R1

ABB TC512 Modems included with AF100 Communication Kit; convert digital signals for transmission over twisted pair with CI522AK04

ABB TK803 Twisted pair cables for use with TC512 modems in redundant CI522AK04 configurations

ABB CI801 Communication interface for Advant OCS; alternative for AC 800F controller integration

ABB S800 I/O Modules (AI810, AO845, DI880, DO880) Analog and digital I/O modules that complement 3BSE018451R1 in distributed I/O stations

Process Automation (Oil & Gas, Chemical, Petrochemical) – The ABB CI522AK04 connects AC 800M controllers to PROFIBUS-DP field devices including pressure transmitters, flow meters, valve positioners, and gas analyzers in hazardous process environments .

Power Generation & Utilities – In thermal, nuclear, and renewable power plants, the 3BSE018451R1 integrates protective relays, power quality meters, and turbine control systems into the plant's DCS/SCADA network .

Water & Wastewater Treatment – The CI522AK04 links pump VFDs, flow totalizers, and chemical dosing systems on RS-485 multi-drop networks, enabling centralized monitoring and control of treatment facilities .

Manufacturing & Assembly Lines – Automotive, electronics, and consumer goods production lines use ABB CI522AK04 to connect robotic controllers, conveyor systems, and machine vision equipment to the plant's MES/ERP systems .

Smart Grid & Substation Automation – The 3BSE018451R1 supports IEC 61850 and GOOSE message transmission, making it suitable for substation SCADA systems, feeder protection, and distribution automation .

Food & Beverage Processing – OEM skid controls, temperature controllers, and packaging machinery integrate with CI522AK04 during line upgrades, enabling seamless communication between legacy serial instruments and modern ABB control networks .

Metals & Mining – Crushers, mills, conveyors, and ventilation fans in mining operations connect to ABB CI522AK04 for remote monitoring and control in harsh, vibration-prone environments .

Marine & Offshore – The 3BSE018451R1 bridges legacy serial instruments into modern ABB control networks on ships, drilling rigs, and offshore platforms, with redundant communication paths for critical systems .

HVAC & Building Automation – Large commercial buildings, data centers, and hospitals use CI522AK04 to integrate chillers, air handling units, and building management systems into a unified control architecture.

Pre-Installation Preparation

Verify system compatibility – Confirm that your ABB controller (AC 800M PM861/863/864) and engineering software (Control Builder M or Compact Control Builder) support the ABB CI522AK04 3BSE018451R1. Minimum software version: Compact Control Builder 6.0.0-1 or higher .

De-energize the I/O station – Isolate 24V DC power to the S800 I/O station or AC 800M rack before handling the CI522AK04. Lockout/tagout per facility safety procedures.

Prepare tools and materials – Gather: ESD wrist strap, small flathead screwdriver (for DIP switches), PROFIBUS connector (with termination resistor switch), shielded twisted-pair PROFIBUS cable (120Ω characteristic impedance), label maker, and documentation .

Back up existing configuration – Export the current PLC program and I/O configuration from Control Builder M. Photograph the 3BSE018451R1 DIP switch settings (PROFIBUS address) and wiring connections before removal .

Module Installation

Mount the terminal base – Install a compatible TU8xx series terminal base (e.g., TU810, TU812, TU814, or TU842) on 35mm DIN rail (TH35-7.5 or TH35-15). Ensure the base is properly grounded .

Set PROFIBUS station address – Using a small screwdriver, configure the DIP switches on the ABB CI522AK04 to set the PROFIBUS-DP slave address (range 1-125). Record the address for later configuration in Control Builder M .

Install the module – Align the CI522AK04 with the guide rails on the TU8xx base and press firmly until the locking lever clicks into place. Verify the module is fully seated .

Connect PROFIBUS cable – Attach the PROFIBUS-DP connector to the 3BSE018451R1 port. Configure the termination resistor switch:

End devices (first and last node on bus): Switch to "ON"

Middle devices: Switch to "OFF"

Critical: Entire bus must have exactly two termination resistors ON; deviation causes communication failure .

Connect power – The ABB CI522AK04 draws power from the S800 ModuleBus via the TU base. Ensure 24V DC supply to the I/O station is within range (19.2V – 30V DC) .

Label wiring – Document and label the PROFIBUS cable and any auxiliary connections for future maintenance reference.

Software Configuration (Control Builder M)

Add the module to the project – In Control Builder M, navigate to the I/O configuration tree. Right-click on the S800 I/O station and select "Add Module". Select CI522AK04 (3BSE018451R1) from the module catalog.

Set PROFIBUS parameters – Configure the following parameters to match your network:

Station address (match DIP switch setting)

Baud rate (9.6 kbps – 12 Mbps, auto-negotiation recommended)

Watchdog timeout (default 100-500 ms)

Data exchange mode (master/slave as required)

Configure GSD file – Import the CI522AK04 GSD file into your PROFIBUS master configuration tool. The GSD file defines module-specific parameters including I/O data length, diagnostic messages, and supported baud rates .

Map I/O data – Define the input and output data exchange between the PROFIBUS master and the 3BSE018451R1. Typical configurations include cyclic data exchange for real-time process values.

Download configuration – Compile and download the updated configuration to the AC 800M controller. The controller will automatically initialize the CI522AK04 upon power cycle or warm restart.

Commissioning and Testing

Apply power – Energize the I/O station. Observe the ABB CI522AK04 LED indicators:

RUN (Green solid): Module operational, normal function

BUS (Green flashing/steady): PROFIBUS communication established

ERR (Red): Hardware fault or configuration error

DIA (Yellow): Diagnostic information present (non-critical)

Verify communication – Using Control Builder M, go online with the controller and navigate to the CI522AK04 diagnostics. Confirm:

Module status = "OK" or "Running"

PROFIBUS bus state = "Data Exchange"

No active fault messages

Test data exchange – Force or simulate a few bytes of I/O data from the PROFIBUS master and verify the 3BSE018451R1 receives the data correctly. Repeat in the opposite direction to confirm bidirectional communication .

Monitor for 30 minutes – Observe the ABB CI522AK04 for any communication interruptions, error counters incrementing, or unexpected LED state changes. Stable operation for 30 minutes indicates successful commissioning .

Document installation – Record the CI522AK04 serial number, PROFIBUS address, firmware version, installation date, and configuration parameters in your maintenance management system.

Lockout/Tagout mandatory – Always disconnect, isolate, and lockout all power sources before installing, wiring, or maintaining the ABB CI522AK04 3BSE018451R1. Verify zero voltage using a calibrated meter.

ESD protection required – The CI522AK04 contains sensitive electronic components. Always use grounded wrist straps and anti-static work surfaces when handling the module .

Termination resistor rule – On a PROFIBUS-DP network with 3BSE018451R1, the first and last physical devices must have termination resistors enabled (switch ON). All middle devices must have termination OFF. Violating this rule (more or fewer than two terminations) causes communication errors or complete bus failure .

Maximum cable length – For the ABB CI522AK04, PROFIBUS cable length depends on baud rate: 100m at 12 Mbps, 200m at 1.5 Mbps, 400m at 500 kbps, 1000m at 93.75 kbps. Exceeding these lengths requires repeaters .

Use certified PROFIBUS cable – The CI522AK04 requires shielded twisted-pair cable with 120Ω characteristic impedance (Type A PROFIBUS cable). Using incorrect cable types (e.g., telephone wire, generic RS-485 cable) degrades signal quality and reduces maximum distance .

Ground shield at one end only – Connect the PROFIBUS cable shield to ground at exactly one end of the bus (typically at the master or at a central ground point). Grounding at both ends creates ground loops that induce noise .

Do not hot-swap in all configurations – While the 3BSE018451R1 supports hot-swapping on TU8xx bases in S800 systems, always verify your specific configuration supports online replacement. For AC 800M rack installations, power-down is required .

Verify DIP switch address – The PROFIBUS address configured via DIP switches on the ABB CI522AK04 must match the address configured in Control Builder M. Address conflicts on the bus cause communication failures .

Maintain proper clearance – Ensure minimum 10mm clearance above and below the CI522AK04 for heat dissipation. Do not block ventilation slots or LED indicators.

Avoid high-EMI areas – Mount the 3BSE018451R1 away from high-voltage equipment, variable frequency drives (VFDs), and welding equipment. Maintain >30cm separation from VFD output cables.

Use correct torque for connections – Tighten PROFIBUS connector screws and terminal base screws to manufacturer specification (typically 0.5-0.6 Nm). Loose connections cause intermittent communication errors.

Do not exceed 30V DC – The ABB CI522AK04 power supply range is 19.2V – 30V DC. Exceeding 30V DC may permanently damage the module .

Check firmware compatibility – Before installing a new CI522AK04, verify the firmware version is compatible with your AC 800M CPU firmware and Control Builder M version. Some older CPUs may require firmware updates .

Daily / Per Shift Visual LED inspection – Walk through the control cabinet and verify the ABB CI522AK04 LED status: RUN (green solid) indicates normal operation; BUS (green flashing) indicates active communication; ERR (red) or DIA (yellow) requires investigation. Document any LED state changes in shift logs.

Weekly Communication status check – Using Control Builder M or System 800xA diagnostics, review the 3BSE018451R1 error counters (CRC errors, framing errors, retries). Baseline acceptable:<10 errors per day. Increasing error rates indicate cable degradation, termination issues, or electromagnetic interference .

Monthly Thermal imaging (infrared scanning) – Using an IR camera, scan the CI522AK04 during normal operation. Compare temperature readings against baseline. Alert if Δ > 15°C above ambient or any area exceeds 70°C. Elevated temperatures may indicate impending component failure or poor ventilation.

Monthly Power supply voltage check – With the ABB CI522AK04 operating, measure the 24V DC supply at the TU base terminals. Acceptable range: 24V DC ±10% (21.6V – 26.4V). Low voltage causes erratic communication; high voltage may damage the module .

Quarterly PROFIBUS cable inspection – Visually inspect the PROFIBUS cable connected to 3BSE018451R1 for cuts, kinks, loose connectors, or corrosion. Verify the termination resistor switch remains in the correct position (ON for end devices, OFF for middle devices) .

Quarterly Terminal torque verification – With the CI522AK04 de-energized (or with appropriate precautions for hot-swappable configurations), use a calibrated torque wrench to retighten all PROFIBUS connector and terminal base screws. Loose connections are a leading cause of intermittent communication errors.

Semi-annually Cleaning – Remove dust accumulation from the ABB CI522AK04 using low-pressure compressed air (≤30 psi / 2 bar) and a soft brush. Do not use liquid cleaners or solvents. For S800 configurations with hot-swap support, cleaning can be performed without powering down the I/O station .

Semi-annually GSD file verification – Ensure the CI522AK04 GSD file in your engineering workstation matches the firmware version of the installed module. Mismatched GSD files can cause configuration errors after software updates .

Annually Comprehensive loop test – Perform an end-to-end communication test: from the PROFIBUS master (e.g., Siemens S7 or ABB AC 800M), through the 3BSE018451R1, to the field device. Measure round-trip latency and verify data integrity. Document results and compare against baseline.

Annually Firmware version check – Verify the ABB CI522AK04 firmware version against the latest ABB release notes. Update firmware if required for new features, bug fixes, or security patches. Always back up system configuration before performing firmware updates .

Every 2-3 years Proactive replacement (critical applications) – For the CI522AK04 in continuous 24/7 operations (power plants, chemical facilities), consider proactive replacement every 2-3 years to prevent unexpected failure. Rotate spare into service and have the removed module tested and refurbished to maintain inventory.

As needed (condition-based) Immediate replacement triggers – Replace the ABB CI522AK04 3BSE018451R1 immediately if any of the following occur: persistent ERR LED that cannot be cleared by power cycle or configuration reload; complete loss of communication on a previously functional bus; visible physical damage (cracked housing, burned components, corrosion); failure to be detected by Control Builder M after verifying addressing and power; communication error counters increasing rapidly (>100 errors/hour) after verifying cable and termination .

Pro Tip: Establish a predictive maintenance program for critical PROFIBUS networks. Track communication error counters for each CI522AK04 in your asset management system. Set threshold alerts at 80% of maximum recommended errors (e.g., if ABB specifies<1000 errors/day as acceptable, alert at 800 errors/day) to schedule proactive investigation before network failure occurs.

Spare Parts Strategy: Maintain at least one spare ABB CI522AK04 (3BSE018451R1) on-site for critical processes. For facilities with multiple CI522AK04 modules, maintain spares at 10-20% of installed count. During annual shutdowns, rotate spares into service and have removed units tested to maintain inventory freshness. Note that some batches of 3BSE018451R1 have been discontinued; verify availability before relying on just-in-time procurement .

Failure Mode Documentation: When replacing a failed CI522AK04, document the failure mode (e.g., ERR LED steady, no BUS LED, intermittent communication, complete failure to power up). Track failure patterns quarterly to identify systemic issues (e.g., repeated failures in high-temperature cabinets suggests cooling improvements needed; multiple failures on same PROFIBUS segment suggests cable or termination issues). Share findings with ABB technical support if a pattern emerges.

Configuration Backup: After configuring the ABB CI522AK04 in Control Builder M, export and archive the complete I/O configuration, including the GSD file and PROFIBUS address mapping. This backup enables rapid replacement without re-entering configuration parameters if the module fails and must be replaced quickly.
