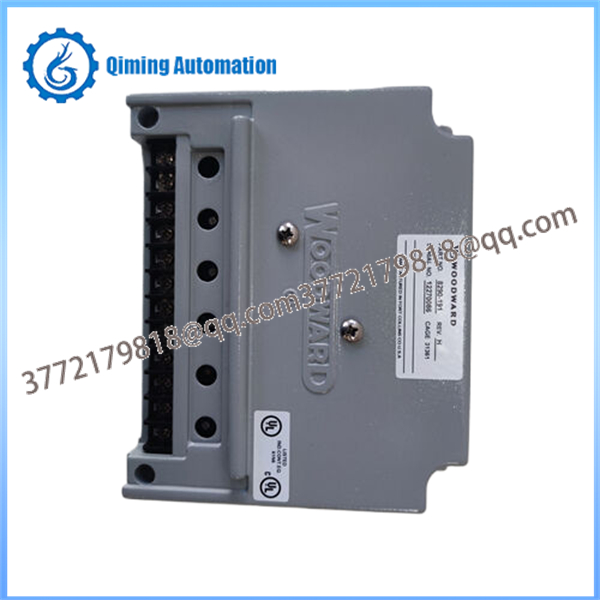

Woodward 8290-191 EPG Speed Control Module

The Woodward 8290-191 is a hardwired speed control module belonging to Woodward's legacy Electrically Powered Governor (EPG) tier.This specific board is equipped with internal droop parameters, making it ready for parallel generator set applications where multiple units must share load across an isolated electrical bus without master-slave communication links.

Constructed within a rugged, cast aluminum junction-box housing, the 8290-191 can be mounted straight onto the engine skid infrastructure.The module operates via a 3-part loop: tracking engine teeth frequency through a Magnetic Pickup (MPU), comparing that value to internal reference targets, and instantly modulating output current to a matched EPG rotary actuator. Its built-in adjustable gain and stability pots allow field operators to hand-tune the governor's response to clear out hunting loops under varying engine loads.

• Standalone Droop Load Sharing: Enables smooth proportional engine speed drop as generator load scales, allowing standalone parallel tracking with zero complex load-sensor crosstalk.

• No Hydraulics Required: Operates as a pure electromechanical interface, making it perfect for small-to-medium diesel engines that lack oil tap-offs or mechanical drive pads.

• Flexible Actuator Direct-Drive: Dynamically matches both small (512/524) and large-frame (1712/1724) non-position feedback actuators by adapting its internal current delivery loops.

• On-Skid Potentiometer Adjustments: Features explicit, vibration-resistant screw potentiometers for manual field tuning of Rated Speed, Gain, and Stability settings.

• Transient Starting Limiter Options: Integrates internal start-fuel limitations to suppress exhaust smoke spikes and reduce thermal overshoots when ramping up from a cold start.

• Distributed Emergency Power Generation: Regulates parallel multi-generator backup setups for facilities requiring independent bus synchronization.

• Industrial Diesel Pump Skids: Controls large fluid transport pumping infrastructure exposed to unpredictable load spikes.

• Remote Prime Mover Stations: Runs standalone diesel engine configurations where low auxiliary power overhead is essential.

Q1: What Woodward documentation covers the installation profiles for the 8290-191?

A: Detailed system boundaries, wiring sizing guidelines, and baseline tuning matrices are preserved in Woodward Product Manual 82329 (EPG Models 1712-1724 and 512-524 without Position Feedback).

Q2: Can the 8290-191 module be deployed on an engine running off a 12V battery bank?

A: No, the internal power components inside the 8290-191 are calibrated explicitly for a 24Vdc rail (20-32 Vdc). For 12 Volt diesel installations, the alternative Woodward sibling model 8290-192 must be specified.

Q3: Why is wire length and sizing critical when connecting this control to the battery bank?

A: Because the EPG actuator can pull sudden high-current spikes (up to 95W peak workload), improper or undersized wire gauges between the battery and terminals can cause localized voltage drops. This drop can reset or destabilize the internal speed sensing circuitry mid-operation.
