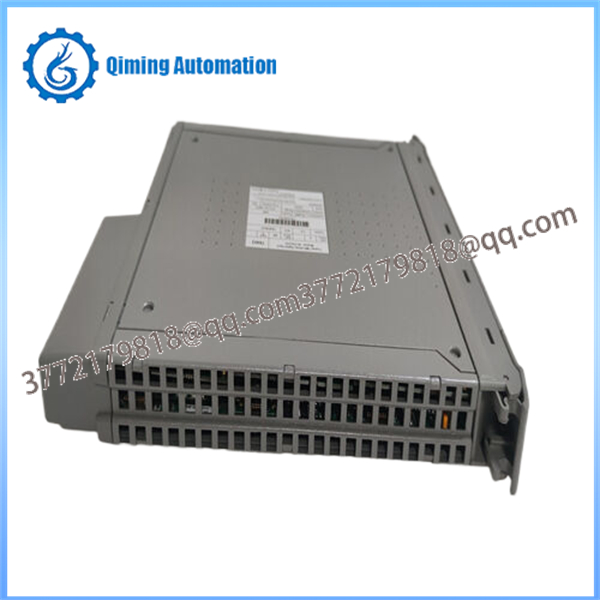

T8403 ICS Triplex Trusted Input Module

The ICS Triplex T8403 input module delivers high-density discrete signal processing for environments requiring uninterrupted safety loop availability. The card interfaces directly with standard 24 VDC field sensors. To achieve its SIL 3 rating, the module splits each incoming signal into three distinct processing sections. Onboard microcontrollers analyze these data streams independently and execute a continuous 2-out-of-3 voting matrix. This hardware-implemented method eliminates the risk of a single component failure causing a false safety trip.

Beyond standard digital state evaluation, the T8403 actively evaluates loop health. By monitoring voltage and current variations across external field-side resistor networks, the card instantly recognizes wiring abnormalities such as open circuits or shorted loops. This diagnostic capability allows plant operators to resolve field defects before they affect overall process safety. The front panel features a matrix of 40 individual LEDs to provide clear, real-time visual tracking of each input channel status during routine maintenance.

• High-Density 40-Channel Layout: Optimizes control cabinet layouts by packing more isolated input circuits into a single slot footprint.

• Continuous Line Supervision: Detects field wiring breaks and shorted cable jackets automatically, saving hours of manual field troubleshooting.

• 1ms Sequence of Events (SOE): Logs state changes with millisecond precision, giving engineers exact timelines for fault sequence analysis.

• Triple Modular Redundant Integrity: Employs three independent logic branches to ensure safety functions are executed even if a component fails.

• Hot-Swap Maintenance: Enables online replacement of faulty modules without interrupting the active process or disconnecting field cables.

The T8403 is engineered for safety-instrumented systems (SIS) within critical process industries:

• Emergency Shutdown (ESD): Processing critical inputs from field-mounted E-stop buttons and safety interlock switches.

• Fire and Gas (F&G) Monitoring: Connecting discrete smoke, heat, and flame detection points to the main safety logic.

• Burner Management Systems (BMS): Verifying limit switches and valve positions on industrial boilers and furnace fuel paths.

• Turbine Overpressure Control: Interfacing with high-speed pressure transmitters to execute emergency tripping sequences.

Q1: What happens if a field wire breaks while connected to the T8403?

A: If configured for line monitoring, the T8403 detects the drop in loop current below the open-circuit threshold, reports a line fault to the central processor, and illuminates the corresponding front panel error indicator without causing an accidental trip.

Q2: Does the T8403 support non-monitored digital inputs?

A: Yes. If field devices do not have line-monitoring resistors, the channels can be configured as standard digital inputs via the system configuration software.

Q3: Can the T8403 capture fast-moving transient pulses?

A: Yes, with its 1ms Sequence of Events (SOE) sampling rate, the card captures rapid signal state changes, making it ideal for tracking fast-acting trips in high-speed processes.

Q4: Is specialized tooling required to hot-swap the T8403 module?

A: No specialized tools are required. The module uses standard chassis ejector mechanisms with integrated micro-switches that notify the system before physical extraction takes place.
