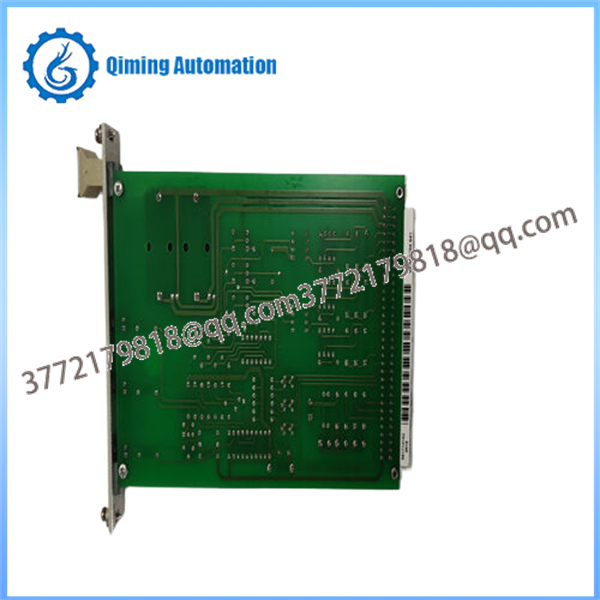

HIMA F7131 Power Conditioning Module

The HIMAF7131 is an essential power conditioning unit designed to stabilize and isolate the 24 V DC distribution network within HIMA safety-related programmable electronic systems. Unlike standard step-down converters, the F7131 maintains an identical voltage level from input to output, focusing entirely on voltage purification, load decoupling, and system security. It serves as a reliable buffer between the main plant DC busbars and the dedicated input/output sub-modules of the safety system.

The module features a streamlined hardware design optimized for space efficiency, occupying only 4 Slot Units (TE/SU) in the HIMA subrack. The front fascia is equipped with green LED status indicators that provide immediate visual confirmation of proper output voltage alignment and module health. Inside, the F7131 incorporates decoupling diodes which permit the direct parallel connection of multiple units for redundant configurations without requiring external diode blocks. This internal decoupling prevents a internal short-circuit within one power supply from dragging down the entire 24 V DC distribution line, maximizing plant availability.

• Built-In Decoupling Diodes: Allows direct 1+1 or N+1 parallel connection for system redundancy, preventing faulty modules from disrupting shared power buses.

• Advanced Line Stabilization: Smooths out incoming voltage ripples and transients from the main plant grid, ensuring a clean 24 V DC source for field instrumentation.

• Ultra-Compact 4 TE Footprint: Occupies half the rack space of larger conversion units, maximizing slot availability for critical I/O cards within the HIMA enclosure.

• Instantaneous Short-Circuit Recovery: Employs an intelligent electronic current limiting architecture that safely manages overload conditions without component degradation.

• Clear Front-Panel Diagnostics: Prominent LED status indicators allow field technicians to verify power distribution health at a single glance during routine maintenance.

The HIMA F7131 finds its utilization in high-reliability industrial landscapes where fluctuating field power cannot be tolerated:

• Chemical Process Automation: Stabilizing 24V power distribution lines to critical gas detectors and solenoid valves in explosive atmospheres.

• LNG & Cryogenic Storage: Supplying clean power to safety loops overseeing emergency depressurization systems.

• Nuclear Control Rooms: Acting as an isolated power conditioning layer for auxiliary safety display instrumentation.

• Large-Scale Tank Farms: Providing robust, decoupled power for overfill protection networks spread across long physical distances.

Q1: How does the F7131 differ from the HIMA F7126 power supply module?

A: While the F7126 converts 24 V DC down to 5 V DC to power internal logic processors, the F7131 outputs a regulated 24 V DC to supply field devices, I/O loops, and actuators, and it features a narrower 4 TE physical profile.

Q2: Are external components required to run two F7131 modules in a redundant configuration?

A: No. Due to the built-in decoupling diodes integrated directly within the F7131 hardware, you can wire the outputs in parallel to create a redundant supply configuration without installing separate external diode modules.

Q3: What indicates that the F7131 is operating correctly?

A: The primary indicator is the green LED located on the front faceplate of the module. When lit, it confirms that the output voltage is present and within the acceptable operating thresholds for the HIQuad system.

Q4: Is the F7131 module short-circuit proof?

A: Yes, the module features an integrated current restriction mechanism. If a short-circuit occurs in the connected field wiring, the module limits the current output to prevent thermal damage to itself and the backplane.
