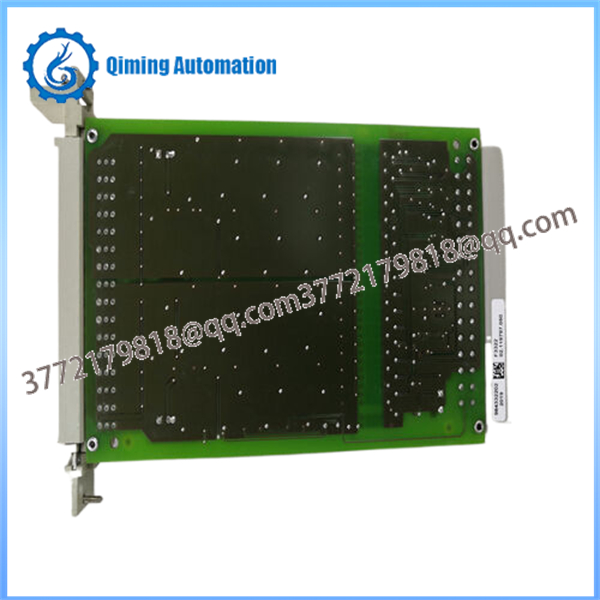

HIMA F3322 16-Channel Fail-Safe Digital Input Module

The HIMA F3322 is an industrial-grade, functional safety hardware module engineered to interface directly with field-mounted binary contacts inside high-risk manufacturing, refinery, and power generation sectors. Installed inside the central or expansion racks of HIMA H41q and H51q systems, this 16-channel digital input board continuously monitors critical safety sensors—including emergency stop buttons, process pressure switches, temperature limiters, and liquid level float switches.

Engineered with a focus on comprehensive fault tolerance, the F3322 actively guards against the hidden wiring failures that can compromise a plant's safety layer. By using integrated microcontroller diagnostics and isolated optocoupler channels, it distinguishes between a legitimate safety trip command, an external line short-circuit, and a broken field conductor. If an anomaly occurs in the field wiring or internal logic components, the board locks the compromised channel into a predefined Fail-Safe state and updates the central processor, ensuring zero compromised execution pathways.

• Brand/Developer: HIMA Paul Hildebrandt GmbH (Germany)

• Model/Part Identifier: F3322

• Compatible Architecture Racks: HIMA H41q and H51q safety PLC enclosures

• Functional Safety Certification: Certified up to SIL 3 (IEC 61508) / Category 4 (EN 954-1)

• Channel Point Density: 16 independent, fully isolated discrete input channels

• Nominal Input Potential: 24 VDC (Configured for standard industrial station battery banks)

• Logic Level Scaling: Clear voltage windows defined for logical "0" (OFF) and logical "1" (ON) according to safety specifications

• Interrogation Diagnostics: Integrated short-circuit cross-talk checking via pulsed testing output lines

• Galvanic Isolation Safety: High-voltage optocoupler protection separating field terminal loops from the main internal processing bus

• Mechanical Footprint: Eurocard form factor featuring a robust integrated front plate with ejector handles and localized status LEDs

• Pulsed Line-Monitoring Architecture: The card utilizes synchronized, high-frequency test pulses to read field switch statuses, identifying field wire-to-wire short circuits or ground leakage faults instantly.

• High Galvanic Channel Isolation: Advanced optocouplers protect the sensitive central processing unit and backplane components from heavy inductive surges, static discharge, and high electromagnetic noise on field cables.

• Low-Latency Input Interrogation: Microsecond-level logic conversion ensures the controller registers an emergency push-button or pressure trip instantly, executing safety shut-down sequences without lag.

• First-Out Error Management: An embedded diagnostic routine captures the exact sequence of transient fault anomalies, allowing plant engineers to identify field wiring breakdowns instantly and avoid extended downtime.

• Vibration-Resistant Edge Contacts: Heavy-duty multi-pin rear connectors ensure reliable gold-plated contact engagement inside high-vibration switchgear rooms and process plants.

• Emergency Shutdown Systems (ESD): Capturing critical trip switch parameters across chemical reactors, gas separators, and distillation columns.

• Burner Management Systems (BMS): Interfacing with mechanical limit switches, air pressure monitors, and safety fuel valves to enforce strict boiler furnace ignition sequences.

• Fire and Gas (F&G) Sensing Arrays: Connecting to binary toxic gas sniffers, thermal sensors, and manual pull stations that require continuous loop monitoring.

• High-Pressure Pipeline Interlocks: Monitoring field instrumentation along long-distance crude oil and gas delivery lines to protect against catastrophic pressure breaches.

Q1: What is the primary difference between the HIMA F3322 and standard industrial PLC input modules?

A: Standard commercial input cards only look for a simple voltage presence, leaving them blind to short circuits between field wires that can mask a true safety trip. The HIMA F3322 runs continuous active pulse checks on its loops to identify field line short-circuits, broken conductors, and internal component drift, guaranteeing that if a fault happens, the system always fails safely.

Q2: Can the F3322 be utilized with proximity switches or active digital sensors?

A: The F3322 is primarily designed to scan passive, dry binary contacts powered by the safety system's interrogation loop. When connecting active electronic or 3-wire proximity sensors, you must verify that their output voltage levels, leakage currents, and transistor architectures align with the specific input thresholds specified in HIMA's technical handbook.

Q3: How does the module indicate a fault configuration out on the factory floor?

A: The front panel of the card contains an "ERR" LED that lights up immediately if an internal hardware failure or an external field loop anomaly (such as a short-circuit) is discovered. Additionally, individual channel LEDs indicate the real-time logic status of each input point, making it simple to spot broken circuits during troubleshooting.

Q4: Is it safe to pull and replace an F3322 module while the system is powered up?

A: Mechanically, the HIMA H41q and H51q racks support live module extraction. However, because the F3322 reads active safety-critical data (like e-stops or high-pressure trip inputs), you must follow your facility’s safety guidelines, apply appropriate channel bypass loops in the software, and secure alternative safety monitoring before removing the card to prevent an accidental plant shutdown.
