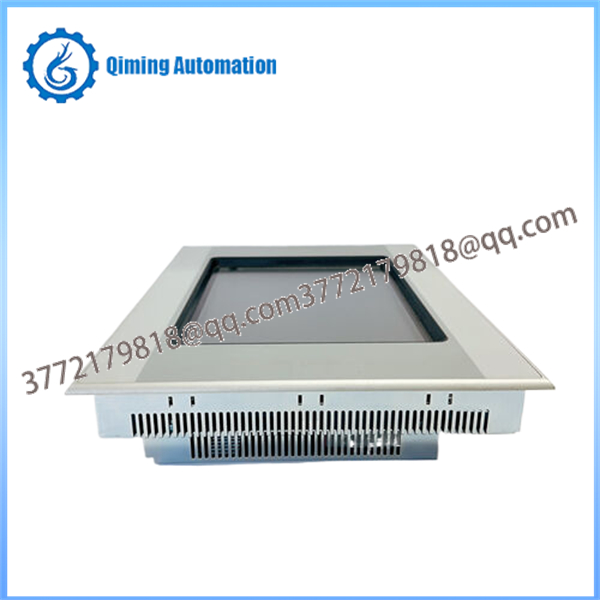

Eaton XVS-440-10MPI-1-1AD Operator Panel & Controller

The structural engineering of the XVS-440-10MPI-1-1AD focuses heavily on network compatibility and mechanical precision. By housing a specialized 400 MHz RISC processing core, this HMI processes intricate vector graphics, live trend charts, and high-frequency communication frames simultaneously.

Unlike infra-red arrays, the high-resolution analog resistive touchscreen implemented here ensures that tracking coordinates remain flawless regardless of whether a user presses with bare fingers, wet gloves, or a plastic stylus. The unit features an elegant, low-profile aluminum front bezel that mounts completely flush against control cabinet doors, preventing the accumulation of dirt or liquid pooling on the edges. Running a tailored Windows CE platform, the hardware presents an open architecture that supports custom runtime applications alongside Eaton’s standard software suits.

• Native MPI & Profibus Connectivity: The hardware includes an isolated, high-speed onboard interface that natively speaks Profibus-DP and MPI protocols, saving hundreds of dollars on external communication modules.

• Precise Resistive Touch Layer: The multi-layer resistive sheet provides pin-point accurate inputs, remaining completely unaffected by surface condensation, oil slicking, or dirt layers.

• Optimized Passive Cooling: Designed entirely without moving fans. The solid internal heat-sinking mechanism prevents dust ingestion, massively increasing the Mean Time Between Failures (MTBF).

• Dual-Card Storage Separation: Supports isolated data management paths by utilizing twin CompactFlash slots—one for systemic OS functions and the other for deep historical data logging or recipe libraries.

• Streamlined Backlight Management: Features fully adjustable software dimming for its long-life backlighting system, helping prevent operator fatigue during night shifts and extending the monitor's lifespan.




• Textile and Spinning Machinery: Provides consistent touch execution even in atmospheres heavy with airborne lint and fibers that might disrupt optical systems.

• Siemens-Dominant Production Lines: The integrated MPI port makes it a cost-effective drop-in replacement or upgrade for legacy panels communicating with S7-300 or S7-400 controllers.

• Water & Wastewater Treatment Plant Controls: Used for supervising pump sequences, valve metrics, and chemical dosing systems via Profibus networks.

• Material Handling and Logistics Hubs: Acts as a centralized visualization station on complex conveyor tracks to coordinate sorting gates and track sensor inputs.

Q1: Can the XVS-440-10MPI-1-1AD connect directly to a Siemens S7 PLC?

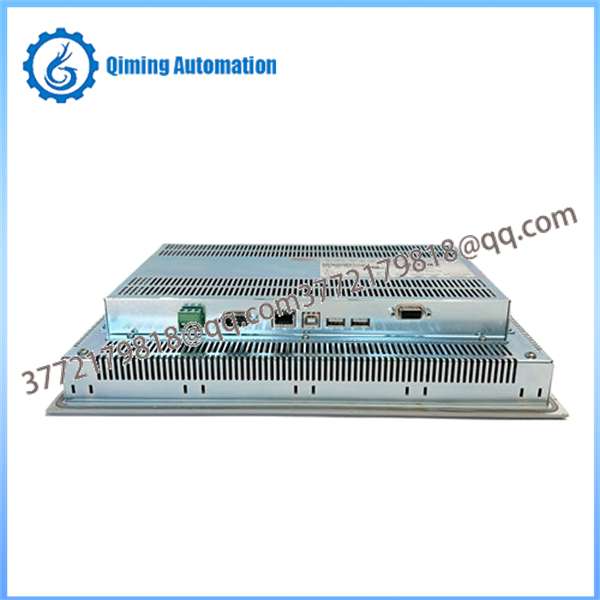

A: Yes. Thanks to the integrated 9-pin Sub-D MPI interface, this HMI can communicate directly with Siemens S7-300 and S7-400 series controllers without needing an intermediate PC adapter or communication bridge.

Q2: What is the main structural difference between this XVS model and the XV series?

A: The XVS series utilizes a high-accuracy resistive touch screen paired with an aluminum front plate and specialized fieldbus ports (like MPI/Profibus). The XV series typically relies on infra-red matrix touch grids behind hardened glass.

Q3: Does this operator panel come pre-loaded with HMI visualization software?

A: The unit is shipped with the Windows CE operating system framework installed. To deploy your visual configurations, you must compile and transfer your project files using Eaton’s Galileo software or an authorized third-party environment.

Q4: How is data protected if the machine suddenly loses its main 24V DC power?

A: The XVS panel contains 32 KB of dedicated NVRAM. This internal memory space automatically saves critical variables, alarm histories, and system states instantly upon sensing a power interruption, preventing data corruption.

Q5: Is the front face resistant to harsh chemical wipe-downs?

A: Yes, the aluminum bezel and polyester resistive screen laminate are designed to withstand standard industrial cleaning detergents, alcohol rubs, and occasional oil splatters without fogging or losing touch sensitivity.
