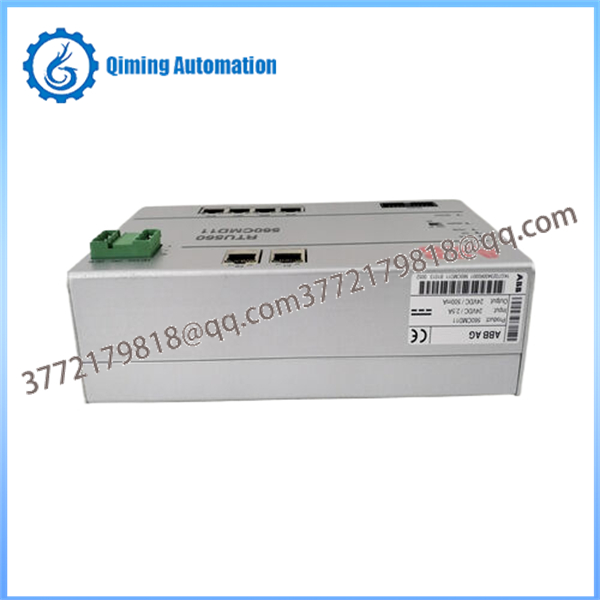

ABB RTU560 Modular Remote Terminal Unit System

In large-scale distribution operations, monitoring assets over vast geographic spans requires an exceptionally robust physical connection. The ABB RTU560 provides the hardwired interface and data filtering matrix required to secure this network. By handling field inputs closer to the source, the system effectively acts as a reliable edge controller.

The RTU560 architecture centers around a flexible bus system that hosts a choice of main processor modules (e.g., 560CMD11), power supplies, and localized I/O blocks. It doesn't just passively read data; it actively parses incoming telemetry, adds high-resolution time stamps ($1 \text{ ms}$ accuracy) to sequence-of-events logs, and coordinates downstream intelligent electronic devices (IEDs). Its ruggedized casing is completely fanless, relying on custom thermal heat sinks to dissipate operational heat smoothly inside unventilated, high-voltage switchgear environments.

• Electrical Substation Automation: Serving as the main control terminal and telecontrol gateway for High-Voltage/Medium-Voltage switchgear installations.

• Oil, Gas & Petrochemical Pipelines: Telemetry management for valve control stations, custody transfer checking, and pressure variations along long-distance lines.

• Water Distribution & Pumping Systems: Real-time optimization of deep-well pump rates, water treatment flow checking, and tank level metrics.

• Renewable Energy Integration: Combining solar inverter clusters and wind turbine telemetry paths into a standardized SCADA protocol output.

• Q: Can the RTU560 be upgraded from older serial telecontrol protocols to modern Ethernet IEC 61850?

• A: Yes, that is one of the primary strengths of the platform. The RTU560 acts as a highly effective protocol converter. By pairing legacy serial I/O slots with an updated CPU module (like the 560CMD11), you can convert traditional serial data streams into structured, modern IEC 61850 GOOSE messages without rewiring your existing physical field footprint.

• Q: How does the system handle power supply redundancy in critical stations?

• A: The system subracks support parallel power configurations. You can install dual redundant power modules tied to separate utility phases. If one power source drops or fails completely, the companion module takes over the full load instantly without interrupting the system or dropping active network links.

• Q: What configuration tool is used to program and map the data points?

• A: The system is configured using RTUtil560, an engineered software suite that handles I/O point mapping, protocol configuration, logic generation, and security access layouts from a single integrated interface.
