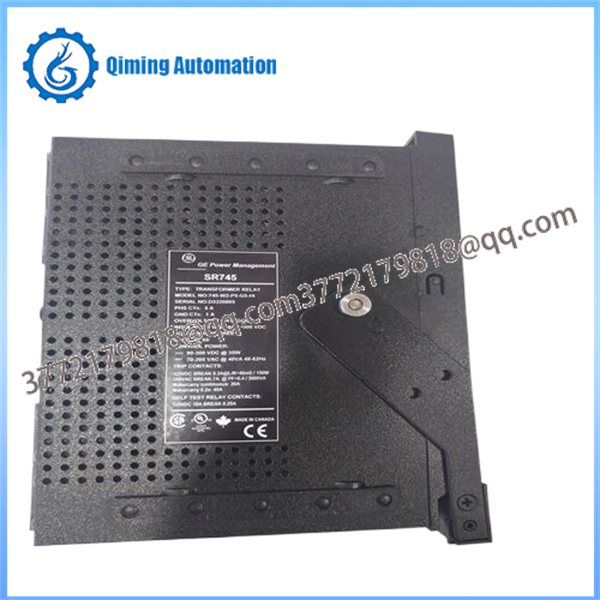

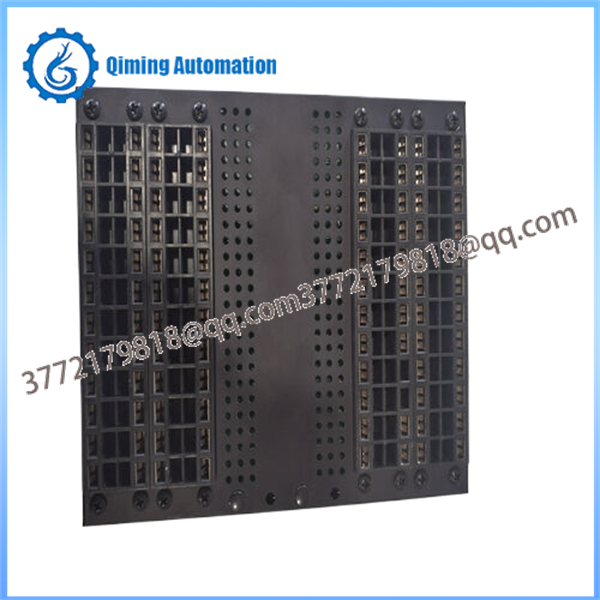

The GE SR745-W2-P5-G5-HI is an advanced transformer protection relay from the GE Multilin SR745 series, designed to provide comprehensive protection, monitoring, and control for transformers and distribution systems. The GE SR745-W2-P5-G5-HI ensures reliable operation by detecting faults and initiating protective actions.

In power systems, the GE SR745-W2-P5-G5-HI is widely used for transformer differential protection, overcurrent protection, and thermal monitoring. The GE SR745-W2-P5-G5-HI enhances system safety by quickly identifying abnormal conditions such as overloads, short circuits, and insulation failures.

The GE SR745-W2-P5-G5-HI integrates protection, control, and communication functions into a single device. With robust design and flexible configuration, the GE SR745-W2-P5-G5-HI is suitable for substations, industrial plants, and utility applications.

Model GE SR745-W2-P5-G5-HI

Product Type Transformer Protection Relay

Protection Functions Differential, Overcurrent, Thermal Protection

Measurement Voltage, Current, Power, Temperature

Communication Protocols Modbus, DNP3, IEC (depending on configuration)

Display Front panel LCD

Input Type CT/VT inputs

Output Relay contacts

Mounting Type Panel-mounted

Operating Temperature -20°C to +60°C

Device Installation

Mount the GE SR745-W2-P5-G5-HI on the control panel.

Wiring Connection
Connect CTs, VTs, and control wiring to the GE SR745-W2-P5-G5-HI.

Power Supply
Provide appropriate auxiliary power to the relay.

Configuration
Set protection parameters and communication settings.

Testing
Perform relay testing and protection verification.

Commissioning
Activate the GE SR745-W2-P5-G5-HI and monitor operation.

Ensure correct CT/VT polarity when wiring the GE SR745-W2-P5-G5-HI.

Provide proper grounding to avoid interference.

Verify all protection settings before energizing.

Avoid installation in high EMI environments.

Follow GE installation and safety guidelines.

Relay Testing: Periodically test protection functions.

Data Monitoring: Review event and fault records.

Connection Check: Inspect wiring and terminals.

Cleaning: Keep the GE SR745-W2-P5-G5-HI clean.

Firmware Updates: Maintain updated relay firmware.

The GE SR745-W2-P5-G5-HI is a reliable and multifunctional transformer protection relay designed for modern power systems. With advanced protection features, flexible communication, and robust performance, the GE SR745-W2-P5-G5-HI ensures safe and efficient operation of transformers and electrical networks.
