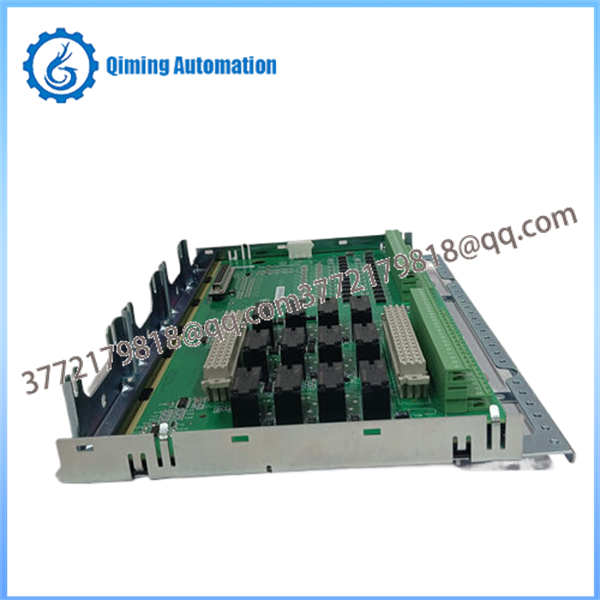

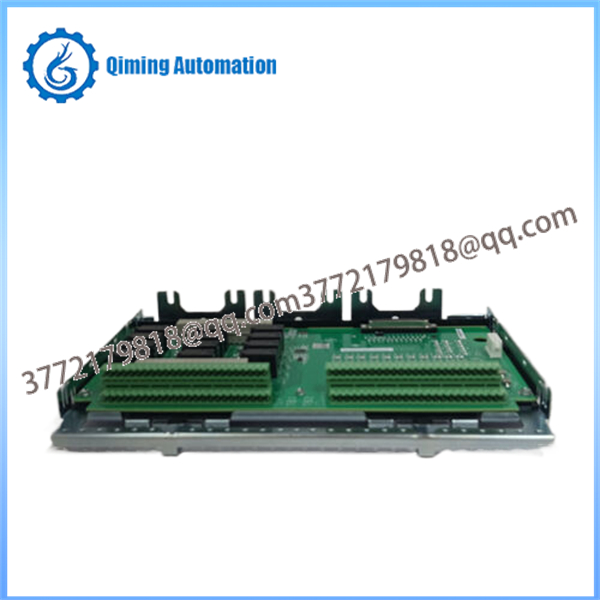

The GEIS200TDBSH2ACC paired with the GE IS230TNDSH2A forms a high-reliability PDIO Discrete Input/Output Terminal Board assembly designed for the GE Speedtronic Mark VI and Mark VIe turbine control systems. The GE IS200TDBSH2ACC serves as the base simplex terminal board, while the GE IS230TNDSH2A acts as the DIN-rail mountable discrete I/O module (often integrated with an IS220PDIOH1x I/O pack). Together, this combination provides robust termination and interfacing for mixed discrete signals in gas and steam turbine generator and mechanical drive applications.

The GE IS200TDBSH2ACC and GE IS230TNDSH2A deliver secure field wiring connections, contact input sensing, and relay output control with excellent noise immunity and channel isolation. This assembly is widely used for critical discrete I/O tasks such as breaker status, solenoid actuation, alarm contacts, and auxiliary device interfacing. Its modular DIN-rail design and simplex configuration make the GE IS200TDBSH2ACC with GE IS230TNDSH2A ideal for both new installations and field upgrades in demanding power generation environments.

Model,GE IS200TDBSH2ACC (Terminal Board) + GE IS230TNDSH2A (Discrete I/O Module)

Module Type,PDIO Discrete Input/Output Terminal Board (Simplex)

I/O Configuration,Up to 24–32 configurable discrete points (Contact Inputs + Relay Outputs)

Input Voltage Options,"24 V DC (standard), configurable for 48 V DC or 125 V DC via jumpers"

Relay Output Rating,250 V AC / 30 V DC per channel (typical)

Isolation,Channel-to-channel and field-to-logic isolation

Mounting,DIN-rail mount for IS230TNDSH2A; panel/rack for terminal board

Communication,Direct interface with IS220PDIOH1x I/O pack via backplane connectors

Operating Temperature,-20°C to +60°C (industrial grade)

Humidity,"5% to 95% RH, non-condensing"

Dimensions,Compact DIN-rail form factor (exact depends on assembly)

Weight,Approx. 0.55 kg (combined typical)

Protections,"ESD, surge suppression, overvoltage on inputs/outputs"

Compatibility,GE Speedtronic Mark VI / Mark VIe systems

Operating the GE IS200TDBSH2ACC with GE IS230TNDSH2A follows standard Mark VIe discrete I/O protocols:

Ensure the control cabinet power is stable and the Mark VIe controller is initialized.

Verify the GE IS230TNDSH2A I/O pack is properly seated on the GE IS200TDBSH2ACC terminal board and recognized in the HMI diagnostics.

Load the correct configuration file for the discrete points connected to the GE IS200TDBSH2ACC / GE IS230TNDSH2A assembly.

Monitor real-time status of contact inputs, relay outputs, and any associated alarms via the operator interface.

During normal turbine operation, the GE IS200TDBSH2ACC and GE IS230TNDSH2A handle automatic signal processing and actuation commands from the controller.

In case of a fault, use the system diagnostics to isolate issues specific to the GE IS200TDBSH2ACC or GE IS230TNDSH2A without immediate shutdown unless safety requires it.

Perform periodic I/O forcing tests and data logging to confirm reliable performance of the GE IS200TDBSH2ACC with GE IS230TNDSH2A.

Safe installation of the GE IS200TDBSH2ACC and GE IS230TNDSH2A is essential for system integrity. Always de-energize the control system and apply lockout/tagout procedures before work begins. Use ESD-safe practices (wrist straps and grounded workstations) when handling the boards. Mount the GE IS200TDBSH2ACC terminal board securely in the cabinet and attach the GE IS230TNDSH2A module firmly on the DIN rail using the provided clips and connectors. Ensure all field wiring (contact inputs and relay outputs) is correctly terminated with proper wire gauge and torque. Set voltage jumpers on the GE IS200TDBSH2ACC according to the application (24V/48V/125V DC). After installation, perform full I/O loop checks and functional testing of the GE IS200TDBSH2ACC / GE IS230TNDSH2A assembly before commissioning the turbine. Only qualified personnel trained on GE Mark VIe systems should install or service this equipment.

Routine maintenance ensures long-term reliability of the GE IS200TDBSH2ACC and GE IS230TNDSH2A:

Visually inspect the GE IS200TDBSH2ACC terminal board and GE IS230TNDSH2A module for dust buildup, loose wires, or signs of overheating during planned outages.

Clean the assembly using dry compressed air only — never use liquids or solvents.

Review Mark VIe HMI diagnostic logs daily for any fault codes related to the discrete I/O channels on the GE IS200TDBSH2ACC or GE IS230TNDSH2A.

Verify input voltage levels and relay contact status remain within specified ranges.

Check all terminal screws and DIN-rail mounting for tightness.

Confirm channel isolation and surge protection components are intact.

Record any anomalies and schedule comprehensive calibration or inspection annually to maintain optimal performance of the GE IS200TDBSH2ACC with GE IS230TNDSH2A.
