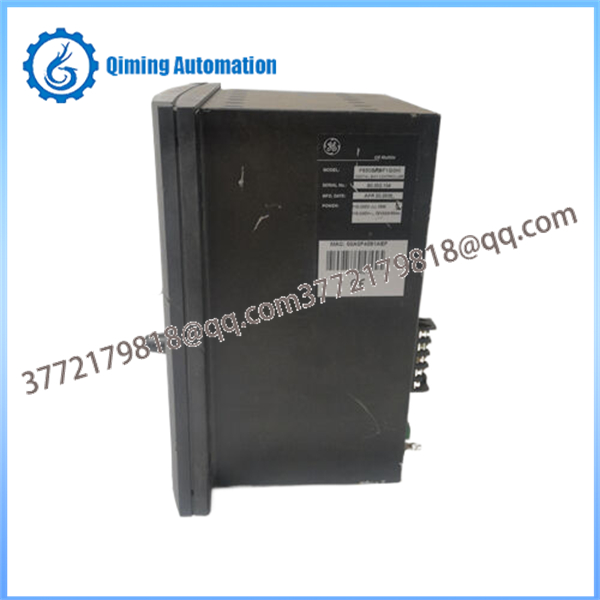

The GE F650BABF1G0HI is a Multilin F650 Digital Bay Controller (also known as the F650 Feeder Protection Relay) from GE Multilin (now GE Vernova). This microprocessor-based multifunctional device combines advanced feeder protection, bay control, metering, monitoring, and automation functions in a single compact unit. The GE F650BABF1G0HI is designed for high-speed protection and control of feeders, busbars, and related applications in medium-voltage distribution systems. It features a basic display (B), redundant RS485 rear serial communications (A), and 10/100 Mbps Ethernet rear communications (F), along with a wide-range power supply (HI: 110-250 VDC / 120-230 VAC). The GE F650BABF1G0HI supports comprehensive overcurrent protection (phase, neutral, ground, sensitive ground), autoreclosing, breaker control and failure, trip circuit supervision, programmable logic, and extensive monitoring capabilities including oscillography and fault/event recording. With flexible communications (Modbus, DNP3, IEC 61850 optional) and EnerVista setup software, the GE F650BABF1G0HI integrates easily into SCADA, DCS, or substation automation systems. Although a legacy model in the F650 family, the GE F650BABF1G0HI remains widely used and supported for feeder management in utilities, industrial plants, and power distribution networks.

Model,GE F650BABF1G0HI

Manufacturer,GE Multilin (GE Vernova)

Series,F650 Digital Bay Controller / Feeder Protection Relay

Product Type,Multifunctional Feeder Protection & Bay Controller

Power Supply (HI),"110-250 VDC / 120-230 VAC, 30 W / 30 VA, 50/60 Hz"

Display,Basic Display (B)

Rear Serial Comm,Redundant RS485 (A)

Rear Ethernet Comm,10/100 Mbps (F)

Protection Functions,"Phase/Neutral/Ground/Sensitive Ground TOC & IOC, directional elements, voltage/frequency, autorecloser (4-shot), breaker failure, trip circuit supervision"

I/O,"Programmable digital inputs/outputs, analog inputs (optional)"

Communications,"Modbus RTU/TCP, DNP3, IEC 61850 (optional), Ethernet & RS485"

Metering & Monitoring,"Currents, voltages, power, energy, demand, oscillography, event/fault recorder, breaker monitoring"

Mounting,Panel mount

Applications,"Feeder protection, busbar protection, bay control, ring-bus or breaker-and-a-half schemes"

Mount the GE F650BABF1G0HI in the switchgear or control panel and connect the wide-range power supply (110-250 VDC or 120-230 VAC).

Wire CTs (1 A or 5 A universal), VTs, digital inputs/outputs, and trip/close circuits to the appropriate terminals.

Connect rear communications: redundant RS485 and/or Ethernet to the SCADA or station bus.

Use EnerVista F650 Setup software or the front-panel keypad/display to configure settings (CT/VT ratios, protection elements, logic, communications).

Apply power and verify the relay is “In Service” with no major alarms; check metering values for accuracy.

Perform secondary injection testing on protection elements and functional testing of breaker control/autoreclose.

Integrate into the substation automation system and monitor real-time status, events, and oscillography during normal feeder operation.

De-energize all connected circuits (CTs, VTs, control power, and breaker circuits) before wiring or installing the GE F650BABF1G0HI to avoid electrical hazards.

Use proper ESD protection when handling the relay.

Short CT secondaries with test blocks during installation; never leave live CT circuits open.

Verify power supply matches the HI rating and install appropriate fusing.

Route communication cables (RS485 as shielded twisted-pair with 120 Ω termination; Ethernet as Cat5e/Cat6) separately from high-voltage wiring.

Tighten all terminal screws to the recommended torque and label wiring clearly.

After installation, perform full secondary injection tests, verify communications, and confirm no alarms before placing the feeder in service.

Check the front-panel display and LEDs daily on the GE F650BABF1G0HI for “In Service” status, active alarms, trips, or communication issues.

Monitor key metering values (currents, voltages, power, frequency) and review any new events or fault records via the display or EnerVista software.

Inspect external wiring, CT/VT connections, and terminal tightness weekly for corrosion or looseness.

Verify redundant RS485 or Ethernet links are healthy and review communication statistics for errors.

Acknowledge pending alarms and check breaker monitoring data (operations, wear indicators).

Clean the front panel and vents (relay powered off or in test mode) with a soft cloth or low-pressure air every 1–3 months.

During scheduled outages, test protection elements, force outputs, review oscillography, backup settings, and confirm firmware version for continued reliability.
