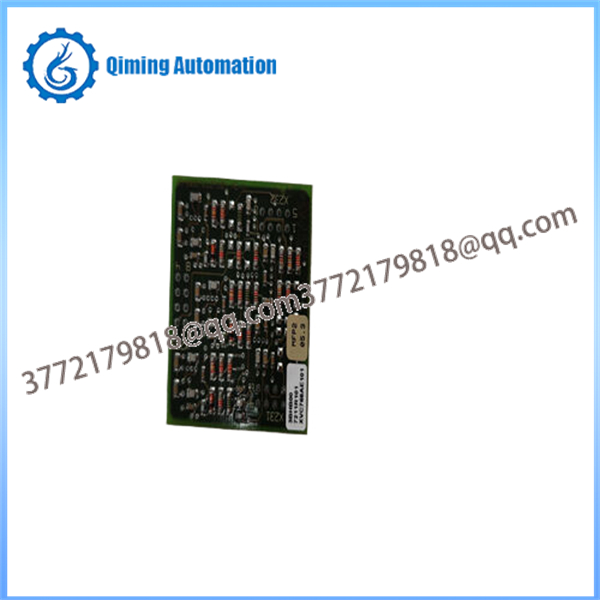

The ABB XVC768AE101 (Order Number: 3BHB007211R0101) is a specialized control and interface module used primarily in ABB’s high-power industrial drive systems, excitation units, and large DC/AC converter platforms. It often functions as a thyristor firing control board, power interface module, or analog/digital I/O processing unit within complex automation architectures like the ABB DCS880 series, legacy DCS800 drives, or specific UNITROL excitation systems for large generators. The module is critical for converting control signals into precise gating pulses for power semiconductors (thyristors/IGBTs), monitoring system parameters (voltage, current, temperature), and ensuring safe, efficient operation of heavy-duty industrial machinery. Its robust design supports operation in harsh environments typical of steel mills, paper plants, marine propulsion, and mining operations.

Model Designation: XVC768AE101

Order Number: 3BHB007211R0101 (Also referenced as 3BHB007211R101 in some catalogs).

Application: Firing control, signal conditioning, and interface management for ABB High-Power Drives (DCS800/880) and Excitation Systems.

Function:

Generation of synchronized firing pulses for thyristor bridges.

Analog signal acquisition (voltage/current feedback).

Digital I/O processing for status and control commands.

Communication interface between main CPU and power stage.

Input/Output:

Inputs: Analog feedback signals (0-10V, 4-20mA), digital status inputs (24V DC).

Outputs: Thyristor gate pulses (isolated), digital status outputs, alarm signals.

Communication: Interfaces via internal backplane or fiber optic links with the main control unit (e.g., RDCU, INT boards). Some variants support Ethernet/IP or Profibus via option modules.

Power Supply: Typically derives power from the drive’s internal auxiliary supply (e.g., +24V DC, +/-15V DC rails).

Operating Temperature: Industrial range, typically -20°C to +55°C (with derating above 45°C).

Mounting: Plug-in module designed for specific chassis slots in ABB drive/excitation cabinets.

Protection: Includes onboard protection against over-voltage, short circuits, loss of phase, and thermal overload.

Safety Isolation: Disconnect all power sources (AC mains, DC bus, and control power) to the drive/excitation system. Verify zero energy state and discharge capacitors.

Access the Module: Open the cabinet and locate the designated slot for XVC768AE101 (refer to system wiring diagrams and hardware manuals).

ESD Precautions: Wear an anti-static wrist strap. Handle the module by its edges; avoid touching components or connectors directly.

Module Insertion: Align the XVC768AE101 connectors with the backplane socket. Ensure guide pins are seated correctly to prevent bending.

Seating: Push the module firmly and evenly until it clicks into place. Secure it with retaining screws or locking levers.

Wiring Check: Verify connections to external terminals (if applicable), fiber optic cables, or daughter boards. Ensure tightness and correct polarity.

Power Up: Restore control power first, then main power. Observe LEDs on the XVC768AE101 and main controller for normal boot sequences (e.g., "Ready", "Run").

Commissioning: If replacing a board, download necessary parameters and firmware using ABB configuration tools (e.g., Drive Composer, Control Builder). Perform functional tests of firing pulses and I/O signals.

Once installed, the XVC768AE101 performs:

Firing Control: Generates precise, synchronized gate pulses for thyristors based on commands from the main regulator, ensuring smooth power conversion.

Signal Conditioning: Converts analog sensor signals (voltage, current) into digital data for the control algorithm.

System Monitoring: Continuously checks for faults (overcurrent, overvoltage, phase loss, overheating) and triggers protective actions (trip, alarm).

Communication Hub: Facilitates real-time data exchange between the power stage and the main CPU or plant network.

Dynamic Response: Assists in rapid adjustments during load transients, grid disturbances, or startup/shutdown sequences.

Hardware Version: Ensure the XVC768AE101 revision matches the system firmware requirements. Mismatched versions can cause communication errors or malfunction.

Connector Integrity: Inspect backplane pins for bending before insertion. Damaged pins are a common cause of intermittent faults.

Grounding: Verify proper grounding of the cabinet and module frame to minimize electromagnetic interference (EMI) affecting sensitive control signals.

Cooling: Ensure adequate airflow around the module. Overheating can lead to premature failure or thermal shutdowns.

Parameter Backup: Always backup system parameters before removing the old board. The new XVC768AE101 may come blank or with default settings requiring reconfiguration.
