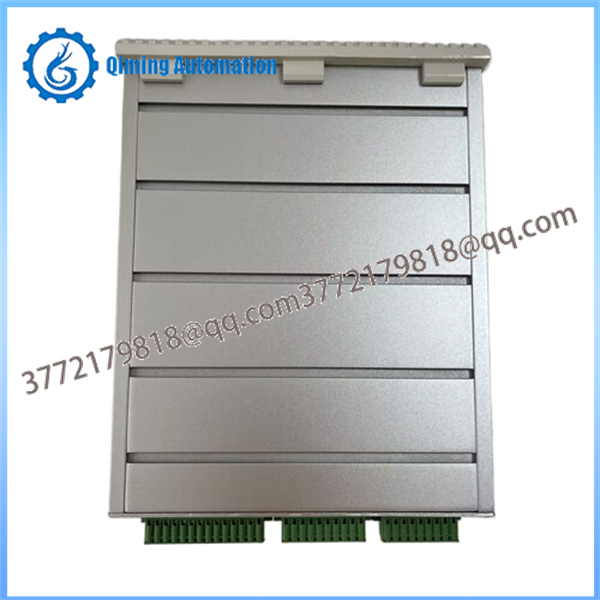

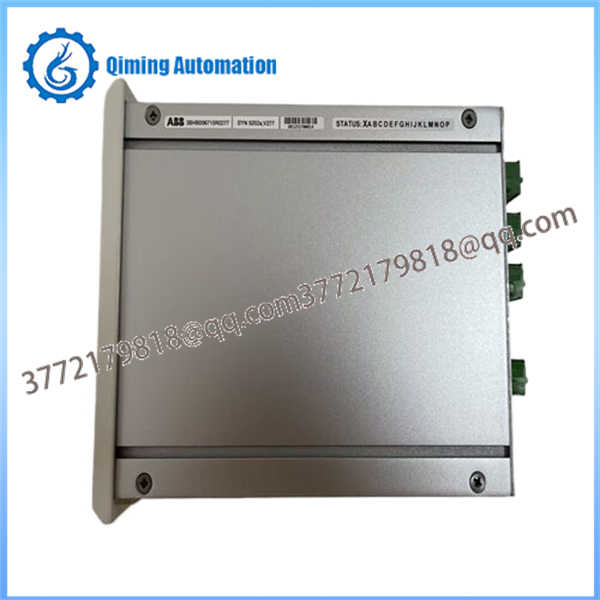

The ABB SYN5202-0277 is a sophisticated digital synchronizing unit belonging to ABB's renowned SYNCHROTACT® product family . This specific model is engineered as a dual-channel automatic synchronizer, designed primarily to execute safe and precise synchronization of generators with the power grid (busbar) or for interconnecting asynchronous networks . Its core function is to continually monitor the voltage, frequency, and phase angle difference between two systems. Only when these parameters are aligned within predefined, safe limits does the ABB SYN5202-0277 issue a command to close the circuit breaker, thereby preventing potentially damaging electrical surges, mechanical stress on the prime mover, and instability within the power network . The dual-channel architecture, featuring two independent channels with separate hardware and software connected in series, provides maximum protection against incorrect synchronization .

Model Number ABB SYN5202-0277

Part Number 3BHB006715R0277

Primary Function Dual-Channel Digital Synchronizing Equipment

Series SYNCHROTACT® 5 or 6

Power Supply 24 V DC or 110/220 V AC

Supported Frequencies 50/60 Hz or 16 2/3 Hz

Synchronization Modes Automatic, Manual, Slip

Measurement Functions Voltage, Current, Power, Frequency, Power Factor

Protection Functions Overvoltage, Overcurrent, Overpower, Reverse Power, Frequency Deviation

Dimensions (approx.) 220 mm x 160 mm x 40 mm

Weight (approx.) 1.2 kg to 4.3 kg (varies by source)

Proper handling of the ABB SYN5202-0277 during operation is essential for system integrity. Follow these steps for integration and setup:

Pre-Installation Verification: Before handling the module, ensure all power sources are disconnected. Verify that the ABB SYN5202-0277 matches the system voltage and frequency requirements for your specific application.

Physical Mounting: The model features a modular design suitable for 19-inch rack mounting . Secure the unit in the designated rack location, ensuring adequate clearance for ventilation and wiring as specified in the manual.

Electrical Connections: Connect the auxiliary power supply to the designated terminals. Wire the voltage transformer inputs from the generator and busbar, and connect the control wiring to the circuit breaker closing coil. Use shielded cables for measurement inputs to maintain signal integrity.

Configuration and Power-On: Using the appropriate configuration software or front panel interface, set the synchronizing parameters (e.g., permitted slip, voltage difference, closing angle) for your specific system. Restore power and verify the ABB SYN5202-0277 LED indicators—including Power (PWR), Run (RUN), Error (ERR), and Sync (SYNC)—show normal operation and valid measurements .

Adhering to these precautions will safeguard both the operator and the equipment when handling this model:

High Voltage Safety: The ABB SYN5202-0277 interfaces directly with high-voltage systems. Installation and wiring must only be performed by qualified personnel following all local safety regulations.

ESD Safety: The unit contains sensitive electronic components. Handle the module by its edges and avoid touching circuit boards or connectors to prevent electrostatic discharge damage.

Environmental Control: Install this model in a cabinet with appropriate environmental protection. Ensure the location is clean, dry, and within the specified operating temperature range .

Verify Wiring: Before energizing, double-check all voltage and auxiliary supply connections against the wiring diagram to prevent damage to the synchronizer or connected instruments.

Parameter Validation: Before placing the unit in automatic mode, validate all configured synchronizing parameters to ensure they are appropriate for the protected equipment.
