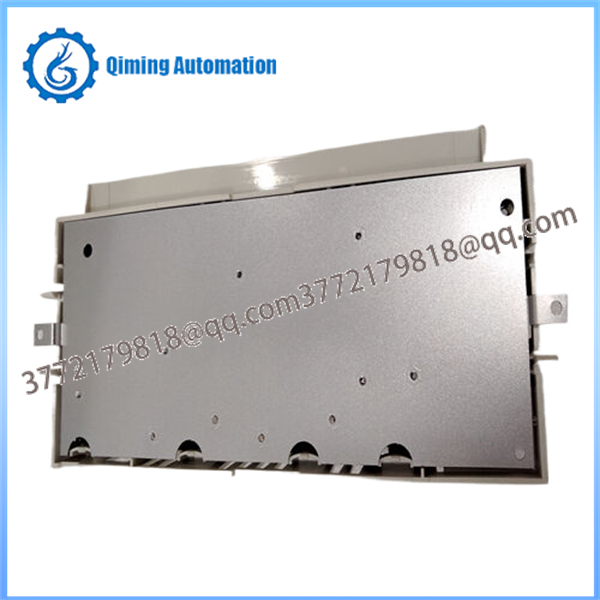

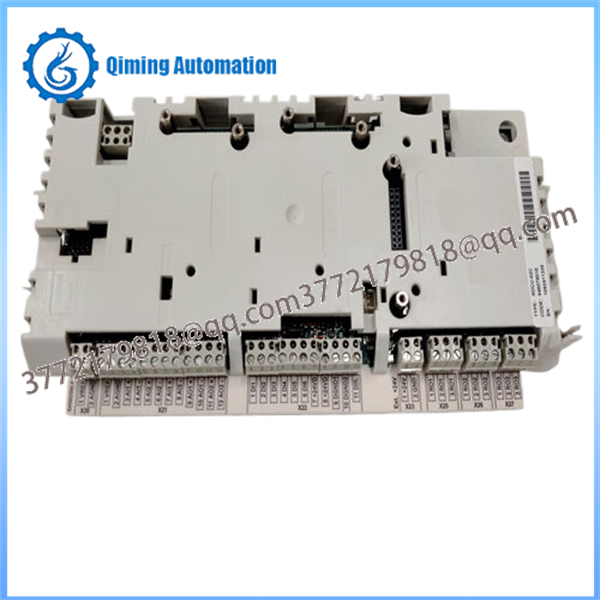

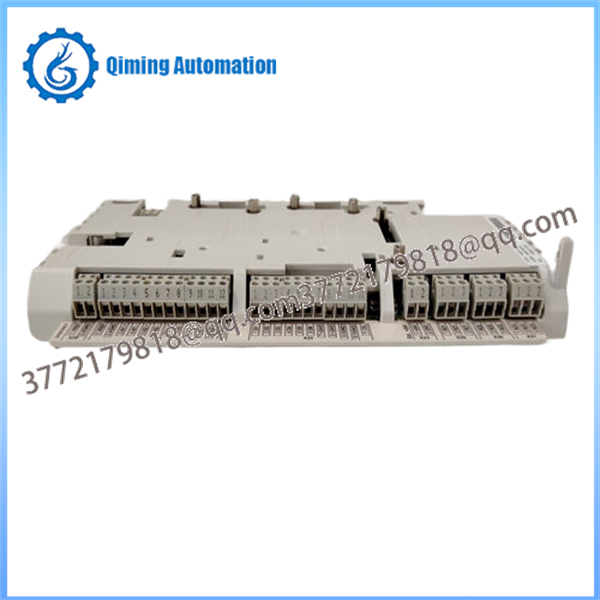

The ABB RDCU-02C (part number 64607901 or similar variants) is a Drive Control Unit (DCU) designed for ABB ACS800 series industrial AC drives, serving as the central control board for inverter modules. This high-performance unit handles motor control, I/O expansion, communication interfacing, and real-time processing in demanding applications such as pumps, fans, conveyors, extruders, and heavy machinery in industries like manufacturing, mining, oil & gas, and water treatment. The ABB RDCU-02C extends the standard I/O capabilities of ACS800 drives with additional analog/digital inputs, relay outputs, and fiber-optic links (PPCS) to inverter/IGBT modules, enabling precise vector control, monitoring, and diagnostics. It supports various application programs (e.g., system, standard, pump/fan) and is often used for spares, repairs, or upgrades in legacy ACS800 installations, providing reliable, deterministic performance in variable speed drive systems.

Key technical specifications of the ABB RDCU-02C include:

Mounting: DIN rail (35 × 7.5 mm) or panel integration in drive enclosures

Power supply: 24 V DC input (via X34 connector), max current draw typically ≤1 A (powered from inverter/IGBT supply board if within limits)

Housing: Zinc-plated steel base with ABS/PC cover

Connectors: Multiple detachable screw terminals (X20–X27 for I/O/power), fiber-optic PPCS links (V57/V68 at 10 MBd), control panel interface (X39), expansion slots (X31/X32), DDCS (X33)

Analogue inputs: 2 programmable differential current (0/4–20 mA, Rin=100 Ω), 1 voltage (-10…+10 V, Rin=200 kΩ); resolution 11–12 bit, inaccuracy ±0.5%

Constant voltage output: +10 V / 0 V / -10 V ±0.5% (max 10 mA load)

Digital inputs: Multiple programmable (via X22), isolated

Relay outputs: 3 programmable (via X25–X27)

Fibre optic: PPCS link to inverter/IGBT modules (AINT board connection)

Additional features: Galvanic isolation on I/O groups, real-time clock support via application, LED indicators, application program label on cover

Operating temperature: Industrial range (typically 0°C to +55°C or per drive enclosure limits)

The ABB RDCU-02C is a discontinued/spare part item, supplied as a complete control unit board; application software must be loaded separately for operation.

To operate the ABB RDCU-02C effectively in an ACS800 drive:

Ensure the ABB RDCU-02C has the correct application program loaded (check cover label: e.g., AMXR xxxx for system app, ASxR for standard); load via DriveWindow if needed.

Mount the unit securely on DIN rail or in the drive module rack; connect 24 V DC power to X34 (observe polarity).

Link fiber-optic PPCS cables: V57/V68 from ABB RDCU-02C to AINT board V1/V2 on inverter/IGBT supply module.

Wire I/O terminals (X20–X27) per application: analogue for references/feedback, digital for start/stop/commands, relays for status/signaling.

Connect optional CDP 312R control panel to X39 or use DriveWindow via PC (fiber-optic/USB adapter possible).

Power up the drive system; verify LEDs indicate normal status (no fault), and check communication/sync with inverter module.

Use DriveWindow or panel to configure parameters, tune motor control, monitor signals, and test drive operation (start, speed reference, etc.).

These steps ensure stable motor control and I/O handling with the ABB RDCU-02C.

Proper installation of the ABB RDCU-02C demands strict safety protocols:

Power down the entire drive and wait ≥5 minutes for DC link capacitors to discharge; verify zero voltage with a meter before work.

Mount on DIN rail or secure in enclosure; align connectors precisely to avoid damage.

Disconnect power before wiring; use 0.3–3.3 mm² (22–12 AWG) wire, torque 0.2–0.4 Nm on screw terminals.

Connect fiber-optic PPCS links carefully (V57/V68 to inverter AINT V1/V2); avoid bending or contaminating fibers.

Ensure grounding and shielding for I/O cables to minimize EMI; group isolation is provided but follow drive manual.

Verify application program matches hardware (cover label); do not install mismatched software.

Maintain clearance for ventilation; operate within rated temperature/humidity and protect from dust/vibration.

Follow ESD precautions; refer to official ABB Hardware Manual (EN_RDCU_HW_C.pdf or equivalent) for the ABB RDCU-02C details.

Routine maintenance for the ABB RDCU-02C supports long-term drive reliability:

Visually inspect weekly for dust on connectors/terminals, loose wires, or overheating signs.

Check LEDs and drive diagnostics daily to confirm no faults, communication errors, or I/O issues.

Monitor fiber-optic links for cleanliness and secure connections; clean gently if needed (power off).

Verify power supply stability (24 V DC) and log any voltage deviations.

Review DriveWindow logs or panel events periodically for warnings related to the ABB RDCU-02C.

Backup drive parameters and application settings regularly via DriveWindow.

In harsh environments, increase cleaning frequency; plan firmware/application updates per ABB recommendations.

These practices help detect issues early and extend service life of the ABB RDCU-02C.
