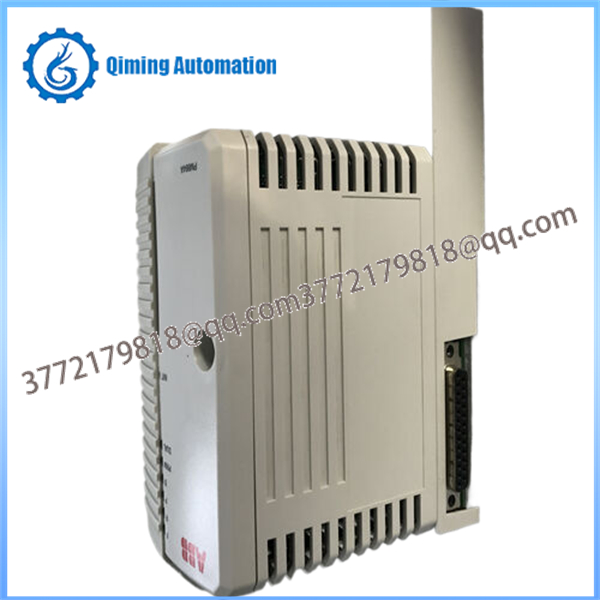

The ABB PM864A is a high-performance processor module (central control unit) designed for the ABB AC 800M distributed control system (DCS) within the 800xA automation platform. It functions as the core controller responsible for executing control strategies, managing system communication, and coordinating distributed I/O operations in real time.

As an advanced evolution within the AC 800M controller family, the PM864A delivers enhanced processing capability, improved memory capacity, and strong communication flexibility, making it suitable for complex and large-scale industrial automation systems. It supports deterministic control, high availability configurations, and seamless integration with ABB S800 I/O modules and industrial networks.

The ABB PM864A is widely deployed in industries requiring continuous operation, precise control, and system scalability, providing a stable foundation for both new automation projects and system upgrades.

The ABB PM864A processor module integrates advanced control, communication, and system management capabilities:

High-Performance Multi-Core Processing

Equipped with a high-speed industrial processor (e.g., dual-core ARM Cortex architecture), enabling real-time execution of complex control algorithms such as PID and model predictive control (MPC).

Centralized Control and Data Processing

Acts as the main CPU for executing application programs, processing I/O data, and coordinating system-wide operations.

Large Memory Capacity

Provides sufficient RAM and flash memory (e.g., 256 MB RAM, 64 MB flash typical) for program execution, data logging, and historical storage.

Deterministic Real-Time Performance

Ensures fast and predictable response times for critical industrial processes, supporting millisecond-level control cycles.

Flexible Communication Interfaces

Supports multiple communication protocols and interfaces, including:

Ethernet (10/100 Mbps)

Modbus TCP/IP

PROFIBUS DP (via interface modules)

Serial communication (RS-232/RS-485)

Distributed I/O Integration

Fully compatible with ABB S800 I/O systems, supporting large-scale distributed architectures with thousands of I/O points.

Redundancy and High Availability

Supports CPU redundancy (PM864A redundant configurations), ensuring continuous operation in critical applications.

IEC 61131-3 Programming Support

Compatible with ABB Control Builder, supporting standard programming languages such as LD, FBD, ST, and SFC.

Industrial-Grade Reliability

Designed for harsh environments with wide temperature range, vibration resistance, and strong EMC performance.

Energy-Efficient Operation

Low power consumption (<10 W typical), reducing operational costs and cabinet heat load.

Product Model ABB PM864A

Product ID 3BSE018162R1 (typical)

Product Type Processor Module / CPU

System Compatibility ABB AC 800M / 800xA / S800 I/O

Processor Type Dual-core ARM Cortex-A9

Clock Speed Approx. 800 MHz

Memory 256 MB RAM / 64 MB Flash

Power Supply 24 V DC (±10%)

Power Consumption ≤10 W

Communication Interfaces 2× Ethernet, RS-232, CAN

Supported Protocols Modbus TCP/IP, PROFIBUS, Ethernet-based protocols

I/O Capacity Supports large distributed I/O systems

Operating Temperature -25°C to +70°C

Installation Method DIN rail / rack (AC800M backplane)

Protection Class IP20

MTBF Up to 200,000 hours
