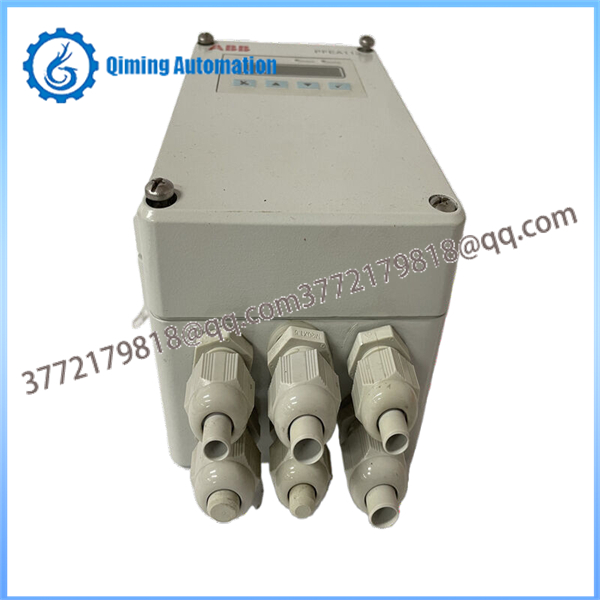

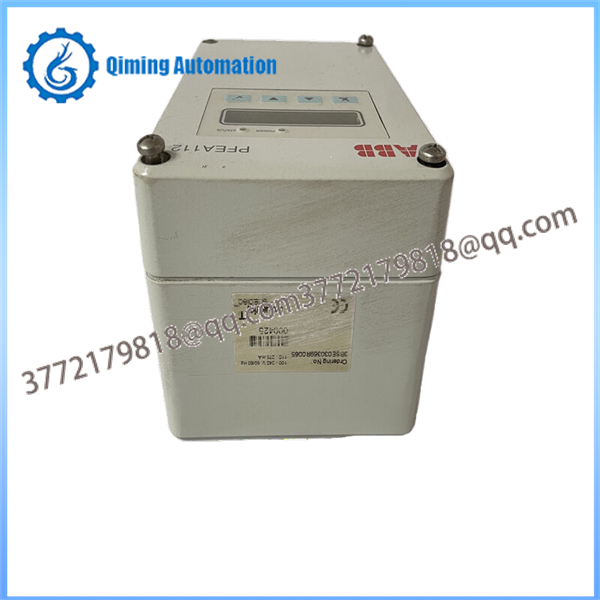

The ABB PFEA112-65 3BSE030369R0065 (also listed as PFEA112-65 or with variant 3BSE050091R65 in some references) is a robust Tension Electronics unit from ABB's web tension measurement series, designed for precise monitoring and control of web tension in continuous processes. The ABB PFEA112-65 3BSE030369R0065 processes signals from up to two load cells (e.g., Pressductor® types like PFCL 301E or PFTL series), providing fast analog outputs (voltage and current) for sum (A+B), individual (A/B), or difference signals, along with PROFIBUS-DP fieldbus communication for integration into industrial networks. The ABB PFEA112-65 3BSE030369R0065 is the IP65 enclosed version (NEMA 4 equivalent), suitable for harsh environments with dust, moisture, or washdown requirements in industries like paper, plastic film, textiles, foil converting, and printing. The ABB PFEA112-65 3BSE030369R0065 features a multi-language 2x16 character display, onboard configuration keys, adjustable filtering, self-diagnostics, and reliable excitation for load cells. The ABB PFEA112-65 3BSE030369R0065 excels in applications requiring stable tension regulation to prevent web breaks, wrinkles, or quality issues. Overall, the ABB PFEA112-65 3BSE030369R0065 is a proven, user-friendly solution for high-accuracy web tension systems.

Model / Part Number,PFEA112-65 / 3BSE030369R0065 (related variant 3BSE050091R65)

Device Type,Tension Electronics (Web Tension Signal Processor)

Enclosure Rating,IP65 (NEMA 4) enclosed version

Number of Load Cells,"2 (supports ABB Pressductor® types: PFCL 201/301E, PFTL 101/201/301E, PFRL 101)"

Load Cell Excitation,0.5 A rms at 330 Hz; max load for 2 cells + 5 Ω cable resistance

Power Supply,"24 V DC (18–36 V) or 100–240 V AC (-15% / +10%, 45–65 Hz)"

Power Consumption,Approx. 12 W (IP65 version)

Analog Outputs,Configurable: Voltage (±10 V) and Current (0/4–20 mA) for SUM (A+B); adjustable filtering

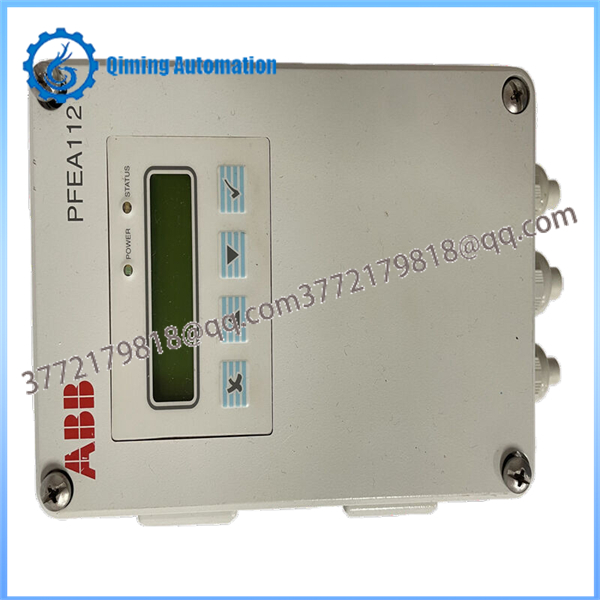

Display,"2 × 16 character LCD, multi-language; shows A, B, A+B (SUM), A-B (DIFF)"

Communication,PROFIBUS-DP (9-pole D-sub connector)

Additional I/O,"Digital inputs for zero set, gain scheduling; self-diagnostics with LED/alarm"

Measuring Range,"Configurable (dependent on load cells; e.g., up to thousands of N)"

Operating Temperature,Typically -10 °C to +55 °C (industrial; refer to manual for exact)

Certifications,"CE, UKCA, RoHS, UL/CSA (per installation guidelines)"

Country of Origin,Sweden

Weight (approx.),1–3 kg (enclosed)

Mount the ABB PFEA112-65 3BSE030369R0065 in a suitable location (wall/panel) ensuring IP65 protection and proper ventilation/cable entry.

Connect power supply (24 V DC or AC variant) and verify stable voltage; check power LEDs on the ABB PFEA112-65 3BSE030369R0065.

Wire load cells (A and B channels) using shielded extension cables to the terminals; ensure correct polarity and grounding.

Connect PROFIBUS-DP cable to the 9-pole D-sub if using fieldbus; configure node address via keys or software.

Power on and use front panel keys to access menus: set nominal load, perform zero set (no-load condition), adjust wrap gain, and configure outputs/filters on the ABB PFEA112-65 3BSE030369R0065.

Monitor display for SUM, A, B signals; test during machine run to validate tension feedback and adjust parameters for stable control.

Enable diagnostics; review alarms and use PROFIBUS for remote monitoring/integration.

Installation and commissioning of the ABB PFEA112-65 3BSE030369R0065 must be done by qualified personnel following ABB safety instructions and the user manual (e.g., 3BSE029380R series).

Disconnect all power, lock out/tag out, discharge any stored energy, and confirm zero voltage before opening or wiring the ABB PFEA112-65 3BSE030369R0065.

Use shielded, twisted-pair cables for load cells and route away from power lines to minimize EMI; ground shields properly at one end.

Ensure load cells are mounted correctly (horizontal/inclined per roll design) and cables routed without strain on the ABB PFEA112-65 3BSE030369R0065.

Do not exceed specified voltage, current, or environmental limits (temperature, humidity, vibration) for the ABB PFEA112-65 3BSE030369R0065.

Verify EMC compliance and use recommended junction boxes (e.g., PFXC 141) if needed for extensions.

Inspect enclosure seals, cable glands, and mounting on the ABB PFEA112-65 3BSE030369R0065 for integrity and signs of moisture/damage.

Check front display and LEDs daily for normal operation, fault indications, or alarms on the ABB PFEA112-65 3BSE030369R0065.

Monitor tension values (SUM, A, B) via display or PROFIBUS during operation to detect drifts or anomalies.

Clean exterior surfaces (power off) with appropriate non-abrasive methods to maintain IP65 rating on the ABB PFEA112-65 3BSE030369R0065.

Periodically verify zero set (no-load) and recalibrate if needed; review max load history in service menu.

Log any PROFIBUS errors or diagnostic messages; perform functional checks on outputs during planned stops.

Contact ABB support for firmware updates, persistent faults, or if redundancy/gain scheduling features require validation on the ABB PFEA112-65 3BSE030369R0065.
