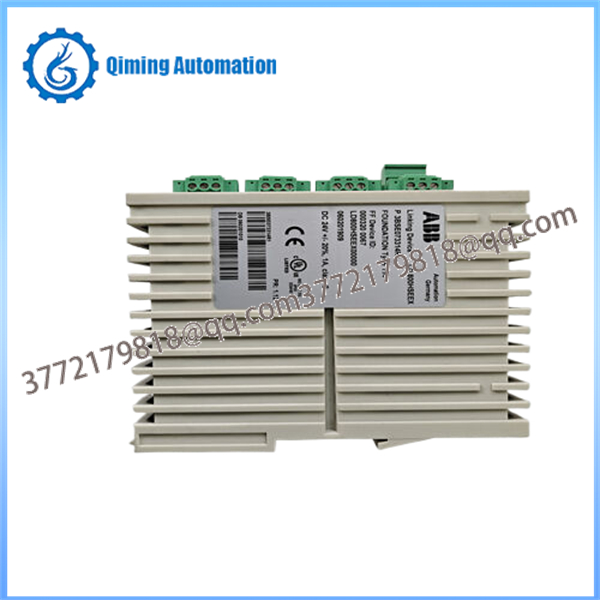

The ABB LD800HSE EX (Order Code: 3BSE073314R1) is a high-performance Foundation Fieldbus linking device designed for process automation in hazardous environments . It acts as a critical gateway between High-Speed Ethernet (HSE) networks and H1 fieldbus devices, enabling seamless bidirectional data exchange . Certified for Zone 2 explosive gas atmospheres (ATEX II 3G Ex nA IIC T4 Gc), this module eliminates the need for external explosion-proof enclosures, making it ideal for oil & gas, chemical, and pharmaceutical facilities .

Zone 2 Hazardous Area Certification: ATEX and IECEx Ex nA (non-sparking) approval allows direct installation in explosive gas environments without additional enclosures.

4 Independent H1 Channels: Each channel supports up to 16 H1 field devices, connecting a total of up to 64 devices (pressure, temperature, flow transmitters, valves) to the control system .

HSE to H1 Protocol Gateway: Compliant with FF HSE Class 42c, featuring System Management Agent (SMA) and Network Management Agent (NMA) for automatic device identification and address assignment.

Redundancy Support: Dual HSE link redundancy and the ability to pair with another LD800HSE EX module ensure continuous communication during single-point failures .

Integrated Web Server: Remote configuration of IP addresses and communication parameters via web browser simplifies commissioning.

Galvanic Isolation: Transformer-coupled H1 interfaces provide electrical isolation for noise immunity in industrial environments .

SNTP Time Synchronization: Ensures precise coordinated control across multiple network devices.

Oil & Gas / Petrochemical: Connecting pressure transmitters, temperature sensors, and control valves in refineries, offshore platforms, and gas processing plants (Zone 2 classified areas).

Chemical Processing: Monitoring reactor temperatures, feed flow rates, and vessel levels in volatile solvent handling environments.

Pharmaceutical Manufacturing: Data acquisition from sterile process equipment, supporting GMP-compliant batch tracking and validation protocols.

Power & Energy Management: Integration of smart meters, breakers, and inverters in substations and solar farms for SCADA data transmission.

Water & Wastewater Treatment: Connecting pump controls and quality analyzers across distributed field networks.

Power Down: Ensure the system power is disconnected before installation.

Mount on DIN Rail: Align the module with a 35 mm DIN rail and press firmly until the locking mechanism engages.

Connect H1 Fieldbus Cables: Wire field devices to the 4 H1 terminal blocks (3-pole screw terminals, pluggable) using shielded twisted-pair cables. Observe polarity and FF wiring standards.

Connect Ethernet (HSE): Plug an RJ45 cable into the HSE Ethernet port (10/100BASE-TX, auto-sensing).

Apply Power: Connect 24 V DC supply (±20%) to the power terminals.

Verify LED Status: Check that power and communication LEDs indicate normal operation (green) .

Configure via Web Server or Control Builder: Set IP addresses, communication parameters, and device tags through the integrated web interface or ABB Control Builder M software.

Commission H1 Devices: The linking device automatically discovers H1 field devices and assigns addresses via SMA/NMA functions .

Hazardous Area Compliance: Verify that the installation location is classified as Zone 2 (not Zone 0/1). The LD800HSE EX is not intrinsically safe (Ex nA, not Ex ia/ib) .

Proper Base/Adapter: When used with I/O modules, ensure compatibility with the correct base unit (e.g., TB850/TB851 for intrinsically safe configurations) .

Cable Length Limits: H1 cables ≤ 1900 m (twisted pair); HSE Ethernet cables ≤ 100 m .

Grounding: Connect cable shields to ground at the cabinet end only (single-point grounding) to prevent ground loops.

Clearance for Ventilation: Maintain sufficient spacing around the module for airflow, especially in high-density cabinets. Operating temperature derating may apply for non-vertical mounting .

ESD Protection: Handle the module by its edges to avoid electrostatic discharge damage.

No Hot-Swap Without Precautions: While some LD800 modules support hot-swap, verify controller compatibility and enable appropriate mode before replacement .

LED Status Inspection (Weekly): Check the module's status LEDs – green indicates normal operation; red signals a fault (communication loss, device error, or hardware failure) .

Environmental Check (Monthly): Ensure operating temperature stays within 0°C to +55°C and humidity below 95% non-condensing. Clean dust from ventilation openings using low-pressure compressed air.

Terminal Tightness (Quarterly): Inspect and re-torque all H1 and power terminal connections to prevent loose contacts.

Communication Testing (Every 6 Months): Perform signal transmission tests on each H1 link to verify stability and accuracy. Use the integrated web server or Control Builder for diagnostics.

Redundancy Verification (If applicable): Test failover by disconnecting the primary HSE link or primary module to confirm automatic switchover.

Firmware Updates: Check ABB support portal for recommended updates. Apply only when necessary and during planned maintenance windows.

Spare Module Storage: Store spare LD800HSE EX modules in ESD-safe packaging at 10°C to 30°C. For redundant systems, replace spare modules every 2 years to ensure reliability .
