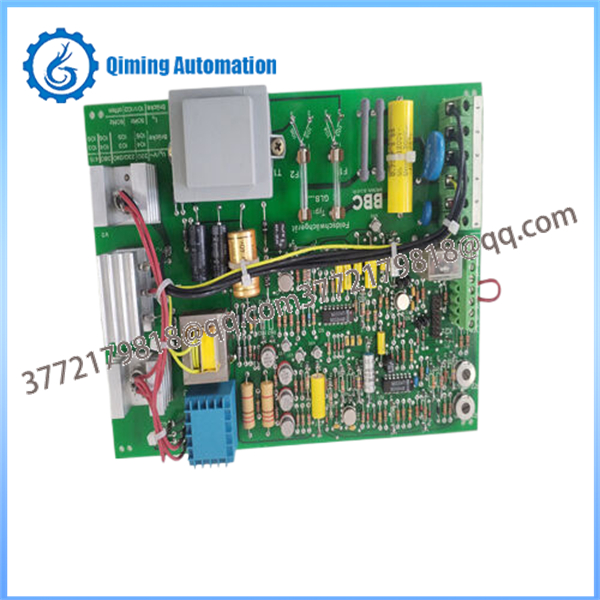

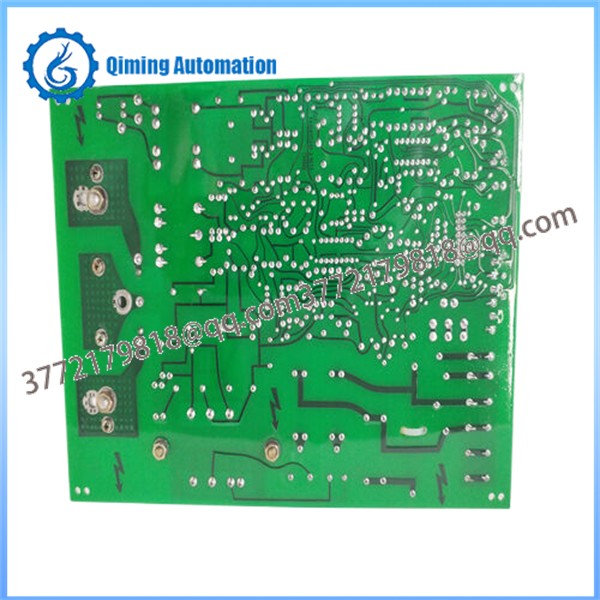

Brand ABB

Model  GNT0104500R0002

Variant model GNT0104500R0002

Product Name Gate Drive Unit

Power supply 24 VDC ± 10%, 2.5A max

Size 102 × 72 × 41 mm

Weight 380g

Working temperature -25 ° C~+70 ° C

Storage temperature -40 ° C~+85 ° C

Interface 6 x optocoupler isolated input, 4 x relay output, RS485 Modbus

HS code 8537.109000

Installation method: DIN rail installation

Protection level IP20

Product Status: New/Refurbished

Minimum order quantity: 1 piece

Warranty period of 12 months

ABB GNT0104500R0002 is a high-performance gate drive unit designed specifically for precision motor control in frequency converters (VFDs). This module provides reliable IGBT gate drive signals and supports motor speed and torque control in harsh industrial environments.

GNT0104500R0002 adopts a compact DIN rail design, integrating 6 optocoupler isolated digital inputs and 4 relay outputs, supporting RS485 Modbus communication protocol. The module has a wide operating temperature range (-25 ° C~+70 ° C) and is suitable for high-temperature dust environments such as cement plants and steel plants. Typical applications include controlling heavy-duty motors such as conveyors, fans, and water pumps.

We provide original/refurbished channel sources with sufficient stock and support for emergency spare parts replacement. The module is compatible with mainstream ABB frequency converter systems, with easy installation and low maintenance costs, making it particularly suitable for industrial automation projects that require high reliability and fast response.

✅ Precision gate drive: IGBT precise control, supporting high-frequency PWM modulation

✅ Industrial grade durability: -25 ° C~+70 ° C wide temperature range, anti vibration and anti-interference

✅ Rich I/O: 6 inputs+4 relay outputs, flexible control

✅ Standard communication: RS485 Modbus, supports PLC integration

✅ Compact design: DIN rail installation, saving control cabinet space

✅ Fast response:<1ms gate signal, precise motor control

Heavy duty conveying: driven by cement plants and mining belt conveyors

Fan and water pump: HVAC system, sewage treatment fan control

Steel metallurgy: auxiliary motors for rolling mills and continuous casting machines

Energy Management: Motor Speed Control for Auxiliary Systems in Power Plants

Automated production line: multi axis synchronous servo control

GNT0104500R0002 variant model ★★★★★

GLB0201 magnetic field weakening unit ★★★★☆

ACS880 drives ABB frequency converter main control ★★★★☆

PM554/PM556 AC500 processor module ★★☆☆☆

DSSR122 DC-DC power module ★★☆☆☆

Q1: What is ABB GNT0104500R002product?

A: High performance gate pole drive unit, used for precision motor control of frequency converters, supporting harsh industrial environments.

Q2: What are the specifications of the power supply?

A: 24VDC ± 10%, maximum current 2.5A, normal operation about 1.8A.

Q3: What communication protocols are supported?

A: RS485 Modbus， Support integration with PLC/DCS systems.

Q4: What is the operating temperature range?

A: -25 ° C~+70 ° C, rated for use above 55 ° C.

Q5: Installation method?

A: DIN rail installation, with dimensions of only 102 × 72 × 41mm and a weight of 380g.

Q6: Do you have stock available?

A: New/refurbished products are available in stock, with 24-hour shipping and a 12-month warranty.
