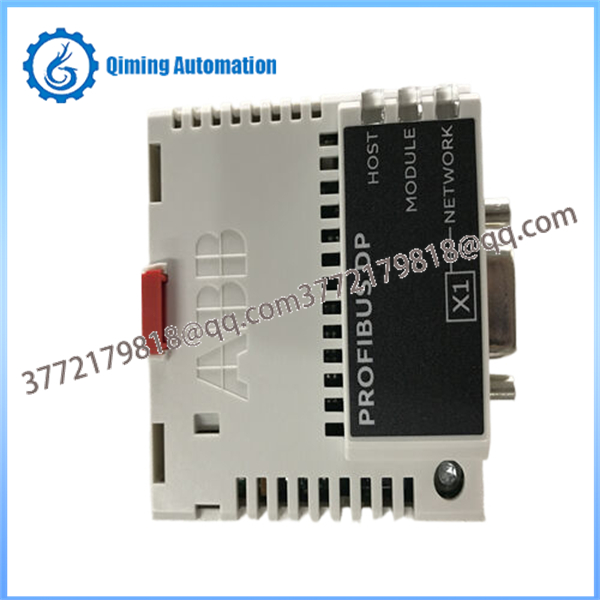

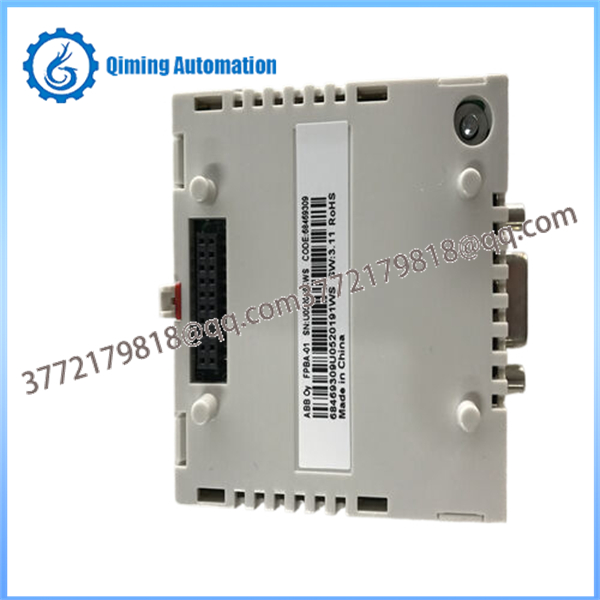

The primary function of the ABB FPBA-01 is to act as a communication bridge, translating PROFIBUS DP network commands into drive-specific control signals and vice versa. It supports various profile types including PROFIdrive, ABB Drives, and Transparent modes (16-bit and 32-bit), allowing flexible data mapping for speed, torque, current, and status words. The ABB FPBA-01 features automatic baud rate detection (from 9.6 kbit/s up to 12 Mbit/s) and supports PPO (Process Data Object) types 1 through 8, as well as standard telegrams. With built-in diagnostics, the ABB FPBA-01 monitors network health, detecting issues like cable breaks, station failures, or configuration mismatches, and reports them to the master controller. Its ability to handle cyclic and acyclic data exchange makes the ABB FPBA-01 suitable for both simple speed control and advanced multi-variable process optimization.

Model: ABB FPBA-01 (Order No. 3ABD00020527 or similar)

Protocol Support: PROFIBUS DP-V0 and DP-V1.

Compatibility: ABB Drives including ACS355, ACSM1, ACS850, ACS880, ACS580, and ACQ810.

Baud Rate: Auto-detection from 9.6 kbit/s to 12 Mbit/s.

Telegram Types: Supports PPO 1–8 and Standard Telegrams (STD) 1 & 2.

Profiles: PROFIdrive, ABB Drives, Transparent 16-bit, Transparent 32-bit.

Interfaces:

9-pin Sub-D female connector for PROFIBUS network.

Internal RJ45 or screw terminal interface for drive connection (depends on drive model).

Power Supply: Powered directly from the host drive’s internal bus (no external power required).

Diagnostics: LED indicators for Power, Run, Fault, and Network Activity.

Environmental Rating: Operating temperature -10°C to +55°C; IP20 protection.

Mounting: Plugs directly into the option slot of compatible ABB drives.

Installing the ABB FPBA-01 requires careful attention to mechanical fit and network topology to ensure reliable communication.

Power Down: Ensure the host ABB drive is completely de-energized before inserting the ABB FPBA-01 to prevent damage to the internal bus connectors.

Slot Insertion: Locate the option slot on the front panel of the compatible ABB drive. Align the ABB FPBA-01 connector pins with the slot and push firmly until it clicks into place. Secure the module with the provided mounting screws if applicable.

Network Cabling: Connect the PROFIBUS DP cable to the 9-pin Sub-D connector on the ABB FPBA-01. Use shielded twisted-pair cables certified for PROFIBUS applications.

Termination: If the ABB FPBA-01 is the last device on the segment, activate the termination resistor by switching the DIP switch on the module to the "ON" position. Ensure only the ends of the bus segment are terminated.

Address Setting: Set the PROFIBUS station address using the rotary switches or DIP switches on the ABB FPBA-01. Ensure this address is unique within the network and matches the configuration in the PLC master system.

Grounding: Connect the cable shield to the grounding clip on the ABB FPBA-01 connector housing to minimize electromagnetic interference (EMI).

Verification: Visually inspect the installation to ensure no pins are bent and the module is seated flush against the drive casing.

Commissioning the ABB FPBA-01 involves configuring the master PLC and verifying data exchange with the drive.

GSD File Installation: Install the ABB FPBA-01 GSD (General Station Description) file into your PLC engineering software (e.g., Siemens STEP 7 or TIA Portal). This file defines the module’s capabilities to the master.

Hardware Configuration: Add the ABB FPBA-01 to the hardware configuration tree in the PLC software. Assign the correct PROFIBUS address and select the desired PPO type and profile (e.g., PROFIdrive).

Parameter Mapping: Configure the process data mapping (inputs/outputs) for the ABB FPBA-01, linking PLC tags to drive parameters like reference speed, actual current, and control word.

Download Configuration: Download the hardware configuration to the PLC master. Ensure the PLC recognizes the ABB FPBA-01 and establishes communication (green "Run" LED on the module).

Drive Parameter Setup: Access the drive’s parameter menu (via keypad or software) and set the control source to "Fieldbus" and the reference source to "Fieldbus" to enable control via the ABB FPBA-01.

Control Test: Send a "Start" command from the PLC and monitor the drive response. Verify that speed references and actual feedback values are updating correctly through the ABB FPBA-01.

Diagnostics Check: Simulate a fault (e.g., disconnect the cable) to verify that the ABB FPBA-01 reports the error to the PLC and triggers the appropriate alarm handling routine.

Routine maintenance of the ABB FPBA-01 ensures continuous network availability and drive performance.

LED Monitoring: Regularly check the status LEDs on the ABB FPBA-01 during plant operations. A steady green "Run" light indicates healthy communication; flashing red indicates faults.

Connection Inspection: During scheduled shutdowns, inspect the PROFIBUS connector on the ABB FPBA-01 for loose screws or corrosion. Re-tighten if necessary.

Cable Integrity: Check the PROFIBUS cable routing near the ABB FPBA-01 for signs of wear, crushing, or exposure to heat/oil. Replace damaged cables immediately.

Termination Check: Verify that the termination resistor setting on the ABB FPBA-01 is correct for its position in the network topology, especially after system modifications.

Dust Cleaning: Keep the ABB FPBA-01 and the drive’s ventilation areas free from dust accumulation using dry compressed air.

Log Analysis: Review PLC diagnostic buffers for any intermittent communication errors reported by the ABB FPBA-01, which may indicate grounding issues or noise.

Firmware Updates: Periodically check the ABB website for firmware updates for the ABB FPBA-01 to ensure compatibility with newer PLC systems and improved performance.

Hot Swapping: Do not insert or remove the ABB FPBA-01 while the drive is powered. Although some systems support hot-swapping, it is safer to power down to avoid bus errors or hardware damage.

Address Conflicts: Ensure no two devices on the PROFIBUS network share the same station address. Duplicate addresses will cause communication failure for the ABB FPBA-01 and other nodes.

Cable Quality: Use only certified PROFIBUS DP cables. Standard Ethernet or non-shielded cables can cause signal reflection and data loss for the ABB FPBA-01.

Termination Rules: Never terminate intermediate nodes. Only the first and last devices on the segment should have termination active. Incorrect termination on the ABB FPBA-01 can disrupt the entire network.

Electrostatic Discharge (ESD): Handle the ABB FPBA-01 with anti-static precautions. Touch a grounded metal part before handling to discharge static electricity.

Configuration Match: Ensure the PPO type and profile settings in the PLC match the expectations of the drive and the ABB FPBA-01. Mismatches can lead to incorrect data interpretation.

Environmental Limits: Do not operate the ABB FPBA-01 outside its specified temperature range. Excessive heat can cause communication instability or permanent damage.
