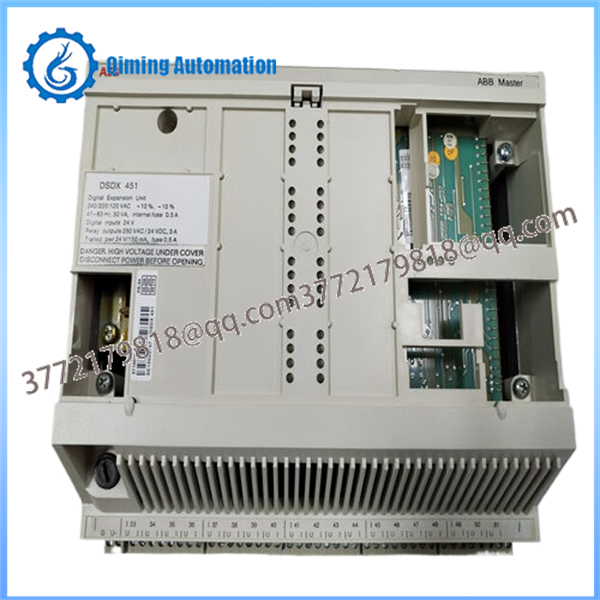

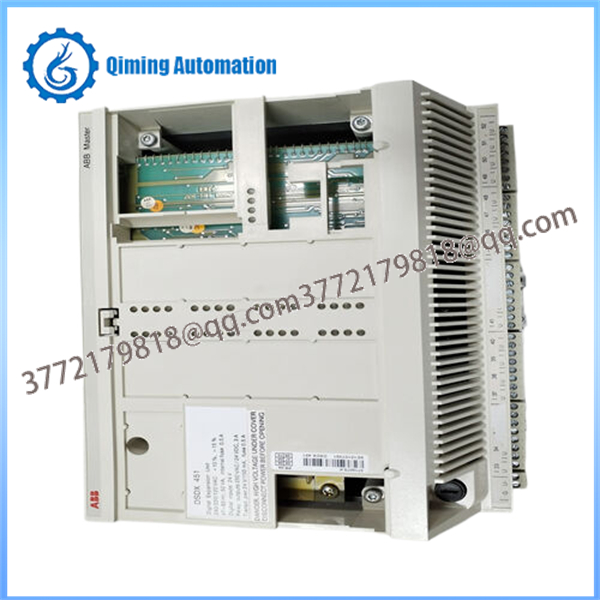

The primary function of the ABB DSDX451 is to simultaneously handle discrete status monitoring and control actuation. It typically features 16 digital input channels to read signals from switches, sensors, and limit switches, alongside 8 or 16 digital output channels (depending on specific sub-variant configuration) to drive relays, solenoids, and indicator lights. The ABB DSDX451 provides electrical isolation between the field side and the internal bus, protecting the CPU from voltage spikes and ground potential differences. With built-in diagnostic features, the ABB DSDX451 can detect short circuits, open loads, and supply faults, reporting these issues directly to the operator station. Its dual-function design makes the ABB DSDX451 an efficient solution for applications requiring tight coupling between interlock inputs and safety outputs.

Model: ABB DSDX451 (Part of the MP200/MP300 I/O series)

Channel Configuration: Combined Digital Input/Output (Typically 16 Inputs / 8 or 16 Outputs).

Input Voltage: 24 V DC nominal (dry contact or wet signal supported).

Output Type: Sourced or Sunk digital output (typically 24 V DC, up to 0.5A - 1A per channel).

Isolation: Galvanic isolation between field circuits and logic bus; group isolation often available.

Response Time: Fast scanning cycle compatible with high-speed interlock requirements.

Diagnostics: LED indicators for channel status, module health, and fault conditions (short circuit/open wire).

Mounting: Direct plug-in to MP200/MP300 backplane or specific sub-rack assembly.

Environmental Rating: Designed for industrial temperature ranges (0°C to 60°C) and humidity levels.

Proper installation of the ABB DSDX451 is essential to ensure system stability and prevent hardware damage.

System Power Down: Before installing the ABB DSDX451, ensure the controller rack power is switched off to prevent hot-plug damage, unless the specific MP200/MP300 configuration explicitly supports hot-swapping for this module type.

Backplane Connection: Align the ABB DSDX451 carefully with the backplane connectors. Push firmly and evenly until the locking mechanism engages, ensuring no pins are bent.

Wiring Termination: Connect field wires to the front-terminal assembly (FTA) or direct terminals associated with the ABB DSDX451. Use stranded copper wire with appropriate ferrules to ensure secure contact.

Shielding and Grounding: Route signal cables away from high-voltage lines. Ground cable shields at the cabinet entry point to minimize noise interference affecting the ABB DSDX451 inputs.

Power Verification: Verify that the 24 V DC field supply matches the polarity and voltage requirements of the ABB DSDX451 before energizing. Reverse polarity can destroy the output drivers.

Address Configuration: If the ABB DSDX451 requires hardware addressing via DIP switches or jumpers, set these according to the system loop diagram before insertion.

Labeling: Apply clear, durable labels to all terminals on the ABB DSDX451 corresponding to the P&ID tag numbers for easy future identification.

Commissioning the ABB DSDX451 involves hardware verification and software mapping within the MP200/MP300 engineering environment.

Visual Inspection: Inspect the installed ABB DSDX451 for any physical damage or loose connections before applying power.

Power Up Sequence: Energize the rack. Observe the status LEDs on the ABB DSDX451; a steady green "Run" or "OK" light indicates successful initialization.

Hardware Configuration: In the system engineering tool (e.g., OCS Builder or legacy MP configurator), define the slot location and type as ABB DSDX451.

I/O Mapping: Map the physical input and output points of the ABB DSDX451 to the control logic variables. Configure the failure modes (e.g., what the outputs do upon loss of communication).

Forcing and Testing: Use the engineering software to force individual outputs on the ABB DSDX451 to verify field device actuation. Simulate input signals to confirm the controller reads the correct status.

Diagnostic Validation: Trigger a simulated fault (e.g., disconnect a load) to ensure the ABB DSDX451 reports the error correctly to the HMI and logs the event.

Normal Operation: Once verified, place the ABB DSDX451 into "Auto" or "Run" mode and monitor its performance during initial process startup.

Routine maintenance of the ABB DSDX451 ensures long-term reliability in critical processes.

LED Monitoring: Regularly check the status LEDs on the ABB DSDX451 during plant rounds. Any red or flashing lights should be investigated immediately against the system alarm list.

Thermal Inspection: Feel the surface of the ABB DSDX451 (carefully) or use a thermal camera to ensure it is not overheating, which could indicate a shorted output or poor ventilation.

Connection Check: During scheduled outages, inspect terminal screws on the ABB DSDX451 for tightness to prevent arcing or signal loss due to vibration.

Cleaning: Remove dust from the ABB DSDX451 and surrounding rack area using low-pressure dry air to prevent conductive buildup.

Log Review: Analyze historical diagnostic logs for intermittent faults reported by the ABB DSDX451, which may indicate deteriorating field wiring rather than module failure.

Spare Inventory: Maintain a tested spare ABB DSDX451 module in stock to facilitate rapid replacement and minimize downtime.

Environment Check: Ensure the control room temperature and humidity remain within the specified operating range for the ABB DSDX451.

Voltage Limits: Never apply voltages higher than the rated 24 V DC to the input/output terminals of the ABB DSDX451. Overvoltage will permanently damage the internal circuitry.

Current Ratings: Do not exceed the maximum current rating per channel or per group for the ABB DSDX451 outputs. Use external interposing relays for high-current loads.

Static Discharge: Always wear an anti-static wrist strap when handling the ABB DSDX451 to prevent ESD damage to sensitive microelectronics.

Hot Swapping Risks: Unless confirmed by the specific system manual, avoid removing the ABB DSDX451 while the system is powered and controlling live processes to prevent unintended equipment activation.

Short Circuit Protection: While the ABB DSDX451 includes electronic protection, repeated short circuits can degrade the output drivers. Investigate the root cause of any blown fuses or tripped protections immediately.

Compatibility: Ensure the ABB DSDX451 firmware/hardware revision is compatible with the existing MP200/MP300 CPU and backplane version.

Wiring Errors: Double-check polarity before energizing. Connecting 24 V DC to a ground terminal or vice versa on the ABB DSDX451 can cause immediate failure.
