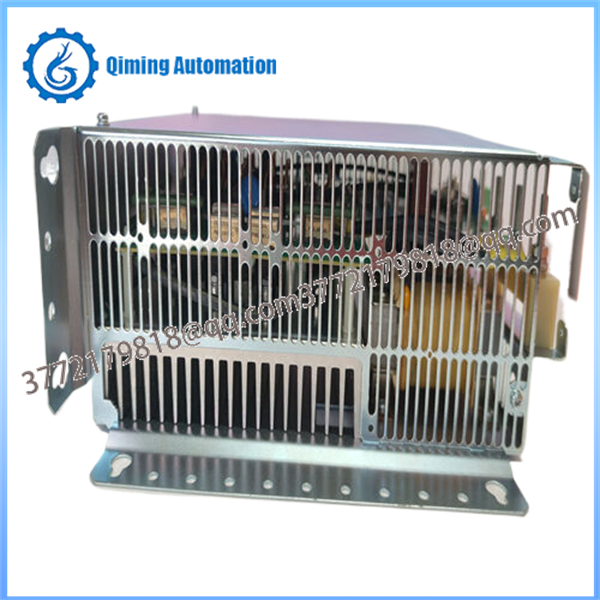

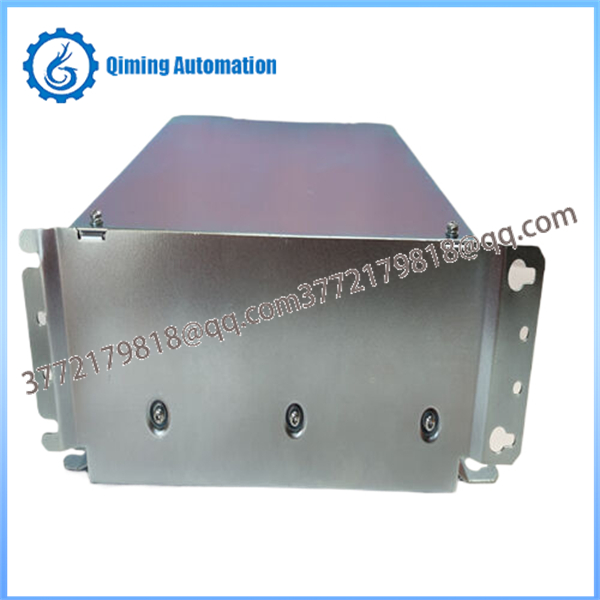

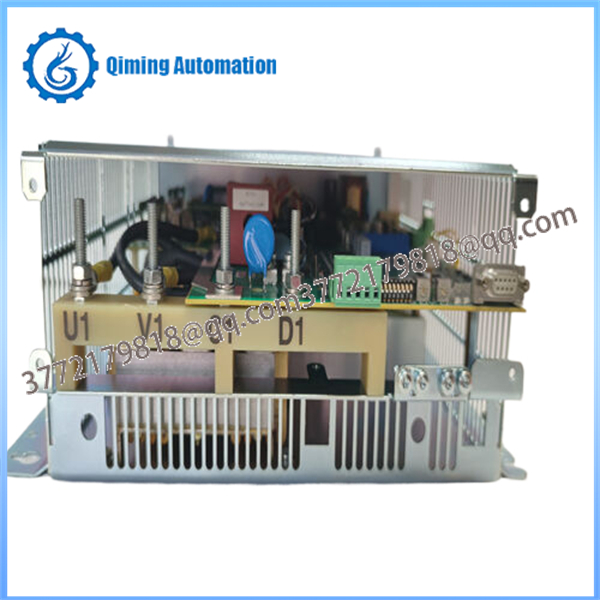

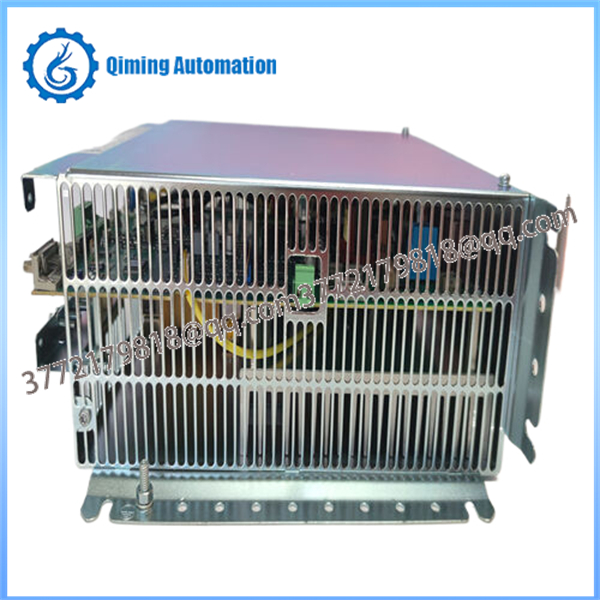

The ABB DCF804-0050 is a high-performance field exciter module designed as an integral component for ABB's industrial DC drive systems . This ABB DCF804-0050 unit is specifically engineered to provide precise and dynamic control of the field current in large DC motors, making it suitable for demanding applications . The ABB DCF804-0050 is commonly found in steel rolling mills, marine propulsion systems, heavy-duty hoists, and dynamometers where accurate torque and speed regulation are critical . By enabling four-quadrant operation, the ABB DCF804-0050 allows for both motoring and regenerative braking, significantly enhancing system performance and energy efficiency . The robust design of the ABB DCF804-0050 ensures reliable operation in harsh industrial environments, contributing to reduced downtime and maintenance costs .

Parameter Specification for ABB DCF804-0050

Product Type Fully-Controlled 4-Quadrant (4-Q) Field Exciter

Order Code 3ADT209026R0002

Field Current 50 A continuous

Field Voltage ±450 V DC (bipolar, enabling field reversal)

Input Voltage 110–500 V AC, 1-phase, ±15%

Control Board SDCS-FEX-81

Communication DCSLink (CAN-based) for drive-to-drive communication

Protection Integrated MOVs for overvoltage protection on AC input and DC output

Weight Approximately 9.5 kg

Proper installation of the ABB DCF804-0050 is crucial for safety and optimal performance. Key precautions for handling the ABB DCF804-0050 include:

Environment: Install the ABB DCF804-0050 in a clean, well-ventilated cabinet, away from excessive heat, moisture, and corrosive substances . The standard unit is IP00, so an enclosure is required .

Mounting: Securely mount the ABB DCF804-0050 on a DIN rail or backplate, ensuring adequate space for cooling and wiring .

Wiring: Strictly adhere to the wiring diagrams provided in the ABB hardware manual for the ABB DCF804-0050 . Verify the AC input voltage and properly connect the DC output to the motor field winding.

Communication: Use a screened, two-wire cable for the DCSLink communication to the armature converter (e.g., SDCS-CON-H01) to ensure signal integrity for the ABB DCF804-0050 .

Grounding: Ensure the ABB DCF804-0050 is properly grounded to minimize electrical noise and ensure safety, paying attention to the grounding options for the communication interface (GNDB)

Operating a system with the ABB DCF804-0050 involves configuration and monitoring through the main drive. The steps for commissioning the ABB DCF804-0050 are:

Configuration: Set all field control parameters for the ABB DCF804-0050 from the armature converter via the drive-to-drive communication link . The ABB DCF804-0050 receives its current reference from the main drive.

Power-Up: Apply mains power to the system. The internal logic of the ABB DCF804-0050 will initialize.

Verification: Use the drive's control panel or software (like DriveComposer) to verify communication with the ABB DCF804-0050 and monitor the actual field current feedback .

Field Application: Command the field on from the main drive. The PI current controller within the ABB DCF804-0050 will regulate the field current to the desired reference .

Operation: During motor operation, the ABB DCF804-0050 continuously adjusts the firing of its thyristors to maintain the correct field current. For 4-Q operation, the ABB DCF804-0050 can reverse the field voltage to enable braking .

Monitoring: Continuously monitor the status and any fault indications from the ABB DCF804-0050 via the drive system .

While the ABB DCF804-0050 is designed for reliability, routine checks can extend its service life. Regular maintenance for the ABB DCF804-0050 should include:

Visual Inspection: Regularly inspect the ABB DCF804-0050 for any signs of damage, discoloration, or loose connections .

Cleaning: Keep the ABB DCF804-0050 and its surrounding area free of dust and debris to ensure proper cooling .

Thermal Monitoring: Check the operating temperature of the cabinet housing the ABB DCF804-0050 to ensure ventilation paths are not blocked. Some variants may include a smart fan with wear prediction .

Connector Integrity: Periodically verify that all wiring terminals on the ABB DCF804-0050 remain tight and free from corrosion .

Fault Log Monitoring: Use the drive's diagnostic tools to review the fault and warning history of the ABB DCF804-0050 for any intermittent issues .
